SHIFTLINE M26L profile (+ SHIFTLINE M26L MATRIX)
| Product name | Lengthmm |
|---|---|
| SLM26L - PROFILE | 1000 |
| SLM26L - PROFILE 1m | 1000 |
| SLM26L - PROFILE 2m | 2000 |
| SLM26L - PROFILE 3m | 3000 |
New

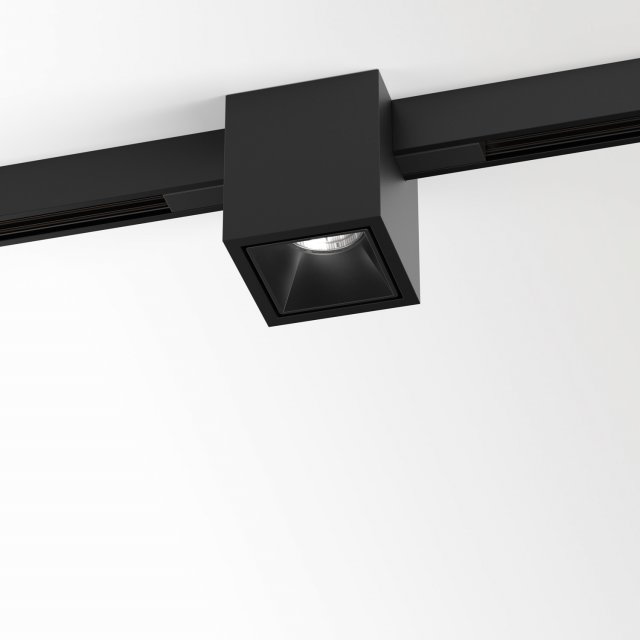

M26L - BOXY L TW 96545 DIM5 W-W
White-White - 10738 9035 W-W
CRI
Beam angle
CCT
General
| Location | Indoor |
| CCT | 2700K-6500K |
| Fixation | Low voltage systems |
| Installation | Low voltage system mounted |
| IP | IP20 |
| Weight (kg) | 0.4 |
| Adjustability | non adjustable |
| Information | REFLECTOR WFL-45°
EXCL.LED POWER SUPPLY 48V-DC
DALI DT8 dimming |
Electrical
| Voltage | 48V-DC |
| Class | III |
| Dimming type | DALI |
| Energy class | E |
| Certificates | ENEC |
Lightsource
| Light source | LED |
| LED information | LED array 9W / CRI>90 (R9: 50) / 2700K-6500K / 1087lm |
| TM-30 Values | Rf: 89 / Rg: 100 |
| SDCM | SDCM2 |
| Riskgroup | RG1 |
| LM80 | L90B10 > 50000 |
| LED technics (light source) | 1087lm // 9W // 121lm/W |
| LED technics (luminaire) | 843lm // 10W // 81lm/W |
Additional
| Remarks | |
| Requirements | LED POWER SUPPLY 48V-DC |
| Accessories | BOXY HONEYCOMB
BOXY SOFTENING LENS
BOXY GLASS SBL |
Technical data was measured in optimum conditions.
Downloads
Following downloads are available:
Finish your specifications
Use the information listed below to complete your product
requirement
LED power supplies
| Product name | Voltage | Class | Dimming type | IP | Cutout shape | Cutout size | devices / supply | ||
|---|---|---|---|---|---|---|---|---|---|
 | LED POWER SUPPLY 48V-DC / 100W | 120-240V | II | non-dimmable | IP20 | round | 40 | 9 | Add to pinlist |
| | LED POWER SUPPLY 48V-DC / 200W | 120-240V | II | non-dimmable | IP20 | round | 40 | 19 | Add to pinlist |
 | LED POWER SUPPLY 48V-DC / 100W DIN | 110-240V | II | non-dimmable | IP20 | round | - | 9 | Add to pinlist |
 | LED POWER SUPPLY 48V-DC / 240W DIN | 100-240V | II | non-dimmable | IP20 | round | - | 23 | Add to pinlist |
Compatibility
