M26L/M35R - SPY 66 TW 96530 DIM5
Available colors
-

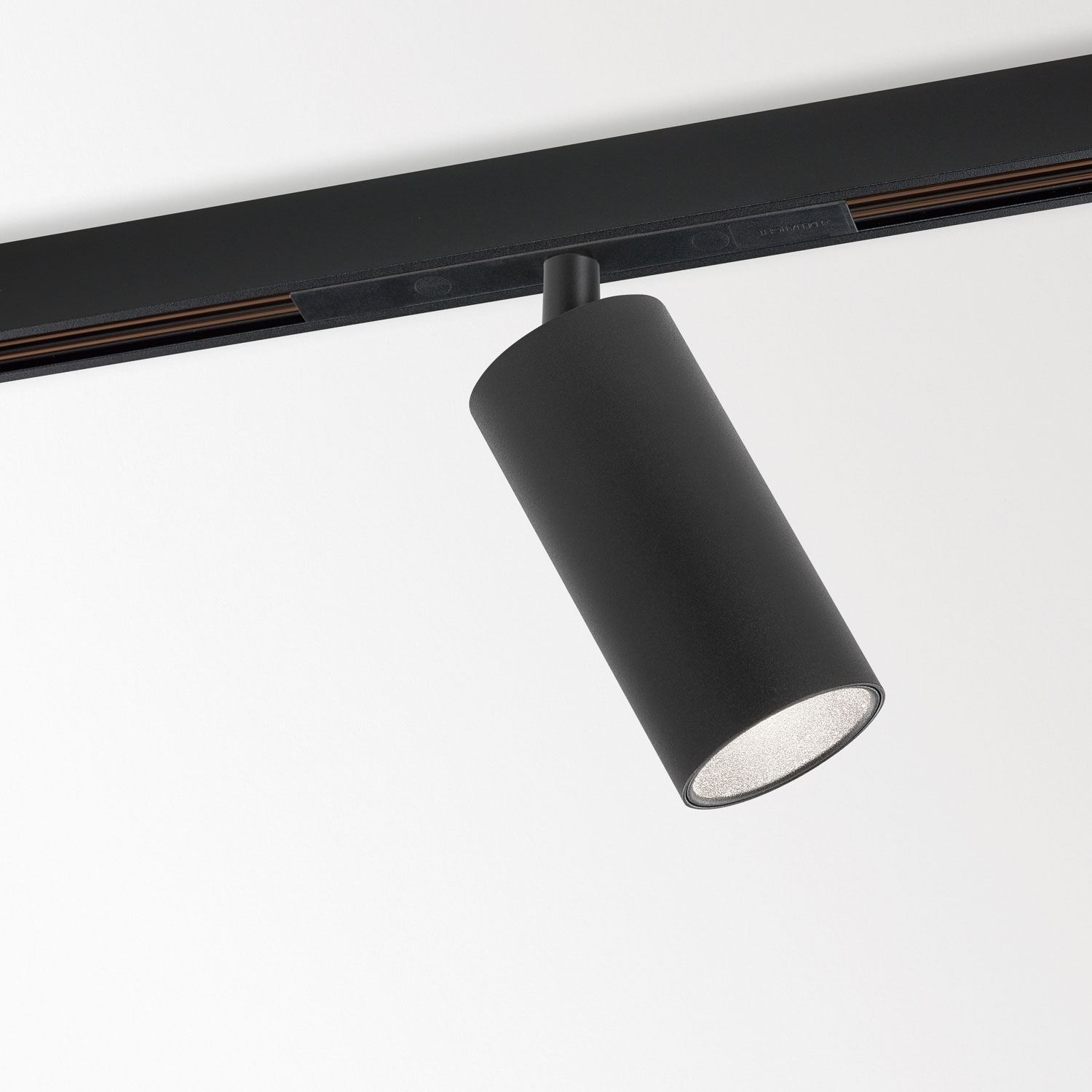

BLACK
23292 9025 B -

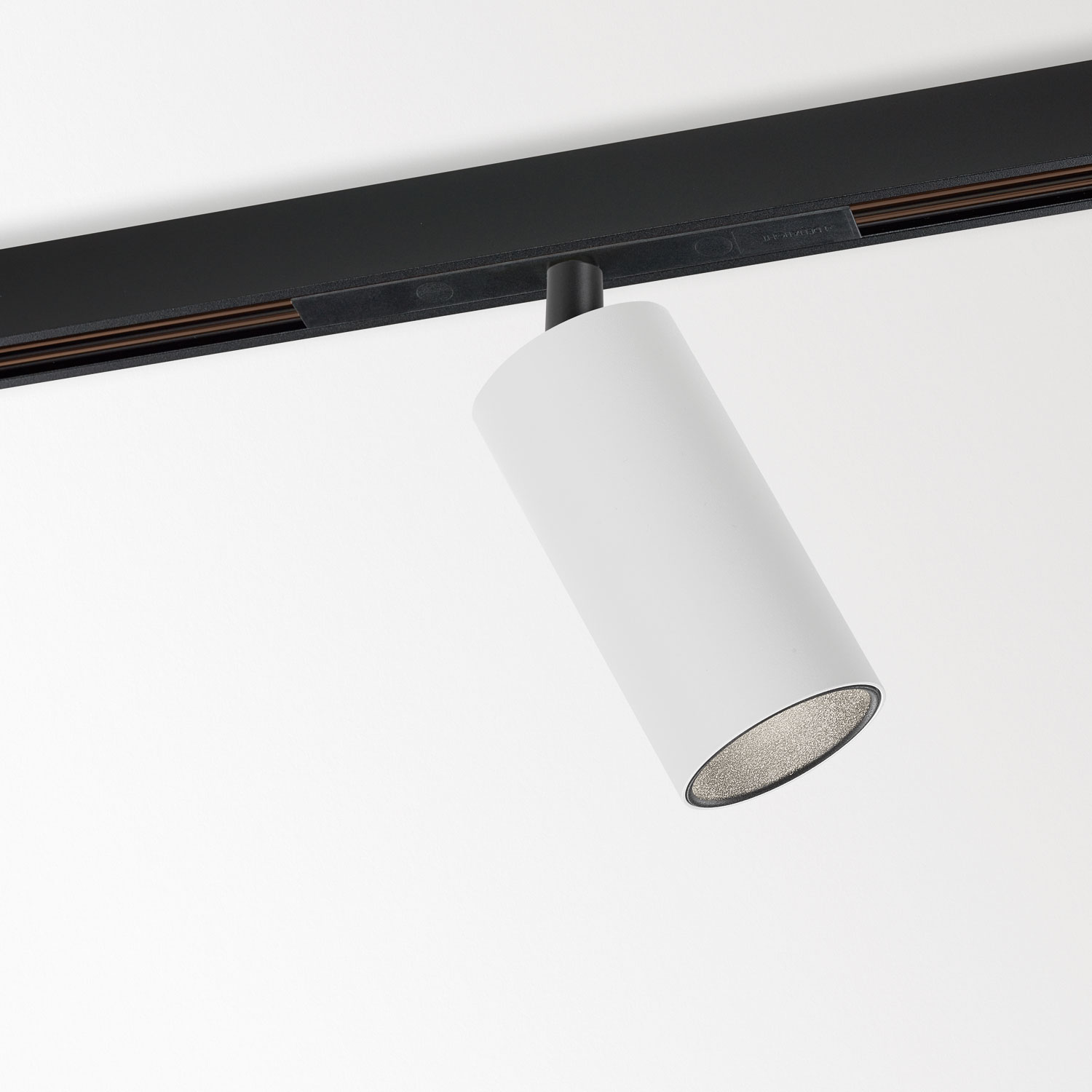

WHITE
23292 9025 W
Characteristics
| Location | INTERIOR |
|---|---|
| Recessed depth | n.a. |
| Thickness of mounting surface | n.a. |
| Information |
ADJUSTABLE 0-90°/360° 1 x LED 9W / CRI>90 / 2700-6500K / 1087lm REFLECTOR FL-30° EXCL.LED POWER SUPPLY 48V-DC DIMMING BY DALI (DT8) Optional REFLECTORS 18° & 45° available |
| CRI | CRI 90 |
| Colour temp | TUNABLE WHITE (2700K - 6500K) |
| LED Technics (light source) | 1087 lm // 9 W // 121 lm/W |
| LED Technics (luminaire) | 749 lm // 10 W // 72 lm/W |
| Electrical | 48V-DC |
| Class | Class III |
| Nett weight | 0.6 Kg |
| IP | IP20 |
| Minimum distance | n.a. |
| Remarks | Take a look at our MAGNETIC PROFILES movie |
| Energy Class | E |
| Accessories |
HONEYCOMB 57 SPREAD LENS 57 LINEAR SPREAD LENS 57 SOFTENING LENS 57 GLASS SBL 57 |
| Requirements |
SPY 66 TUBE LED POWER SUPPLY 48V-DC |
Description icons:
-
The CE marking on many products shows that the products is compliant with the European regulations.
-
A Class III appliance is designed to be supplied from a separated/safety extra-low voltage (SELV) power source. The voltage from a SELV supply is low enough that under normal conditions a person can safely come into contact with it.
Finish your specification
Options
Accessories
24611 0160
GLASS SBL 57
24611 0210
HONEYCOMB 57 DOUBLE USE
24611 0150
HONEYCOMB 57 SINGLE USE
24611 0170
LINEAR SPREAD LENS 57
24611 0190
SOFTENING LENS 57
24611 0200
SPREAD LENS 57
Requirements
23358 0000
SLM26L - PROFILE
23358 0010
SLM26L - PROFILE 1m
23358 0020
SLM26L - PROFILE 2m
23358 0030
SLM26L - PROFILE 3m
23375 0000
SLM35R - PROFILE
23375 0010
SLM35R - PROFILE 1m
23375 0020
SLM35R - PROFILE 2m
23375 0030
SLM35R - PROFILE 3m
21012 0230
LED POWER SUPPLY 48V-DC / 100W
300 89 48 100
LED POWER SUPPLY 48V-DC / 100W DIN
21012 0240
LED POWER SUPPLY 48V-DC / 200W
300 89 48 240
LED POWER SUPPLY 48V-DC / 240W DIN
24611 0100
SPY 66 TUBE

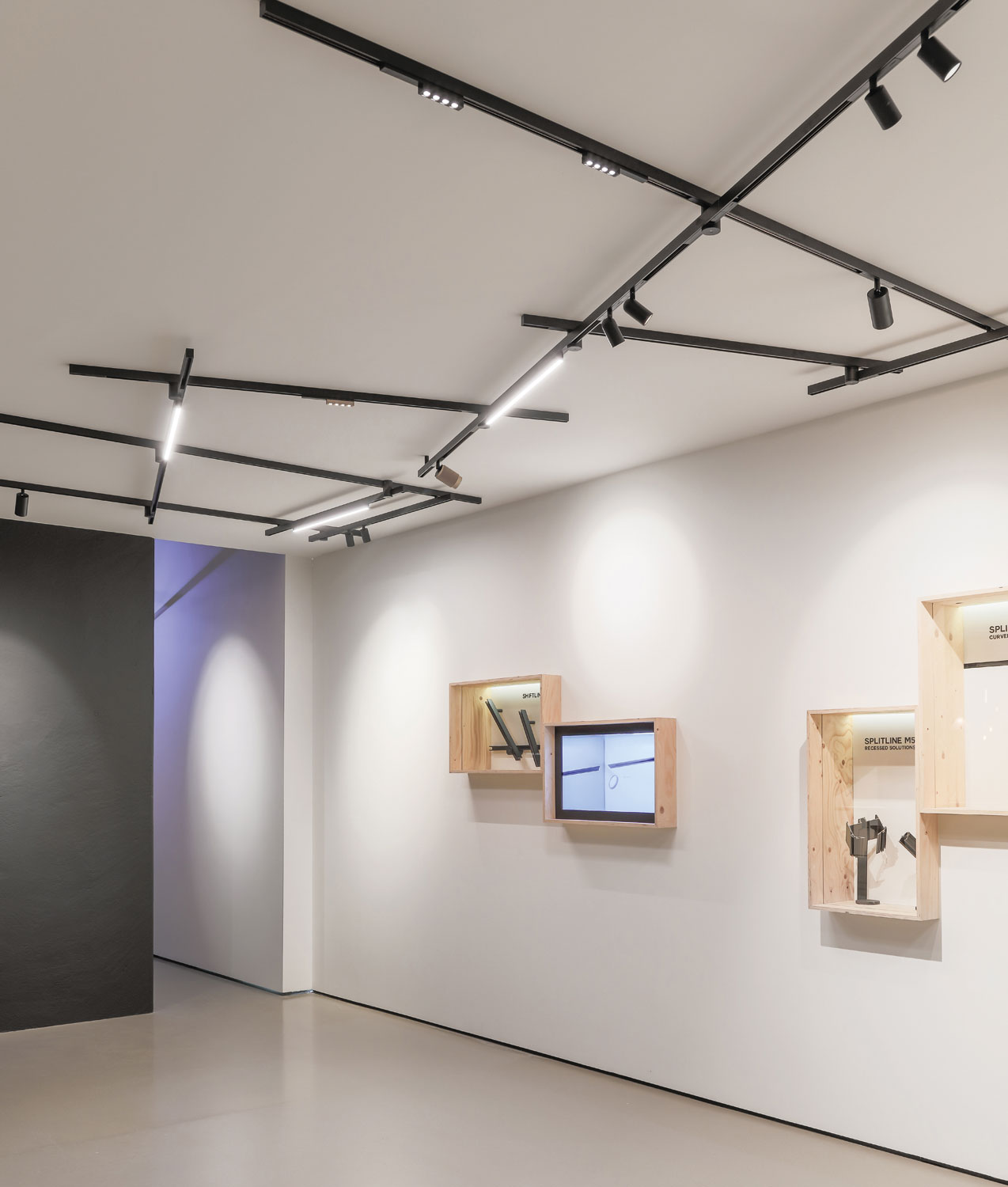

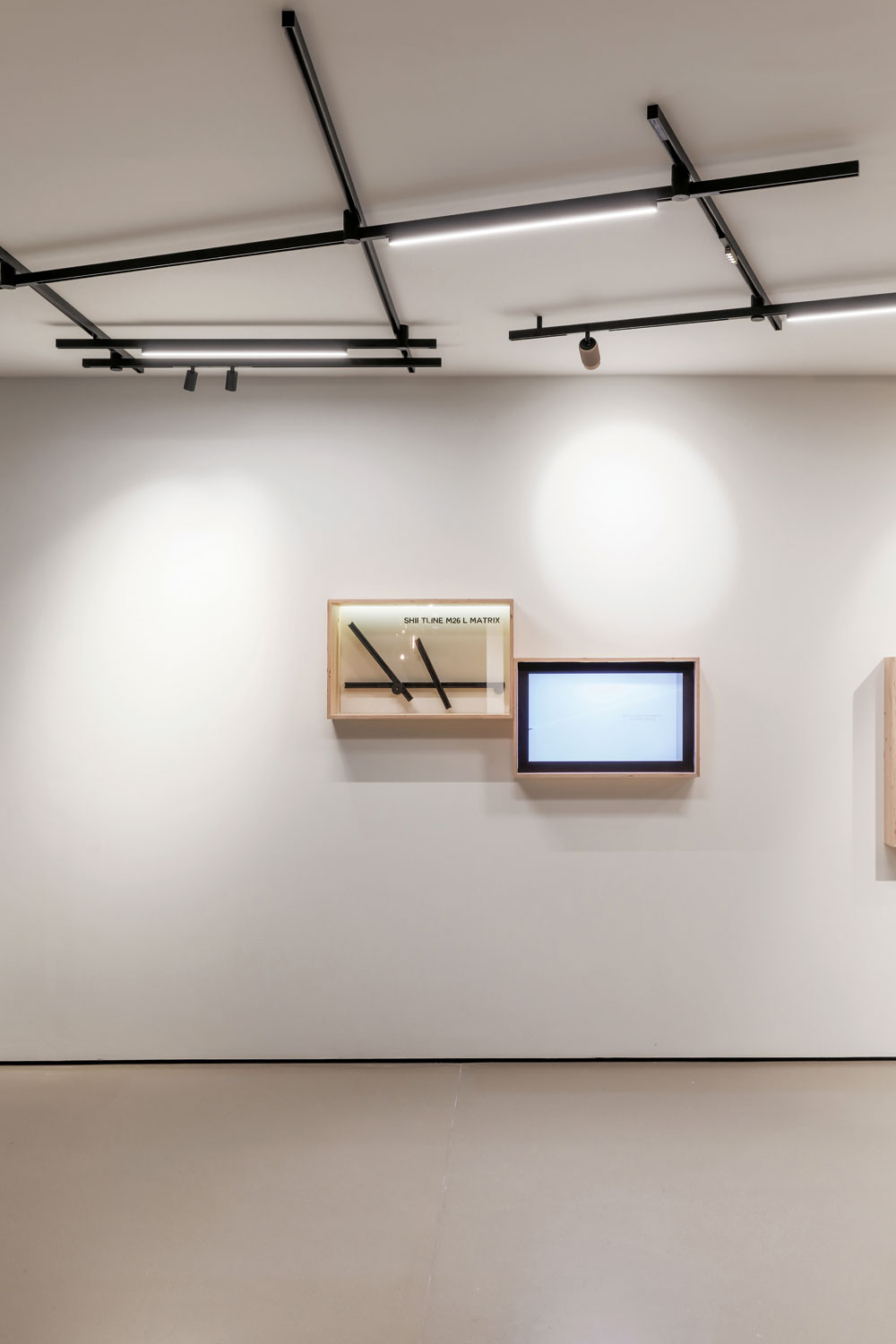

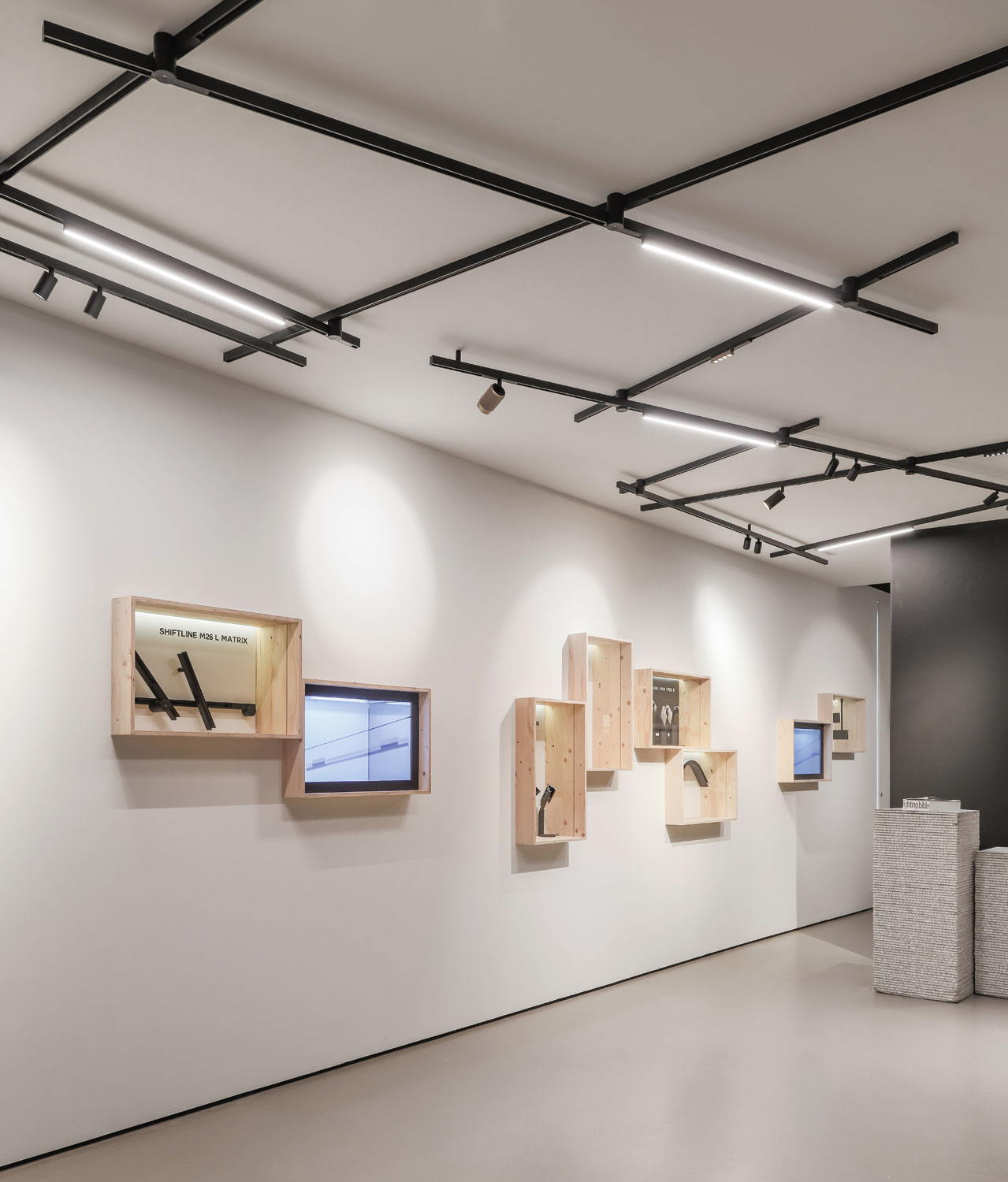

Discover more about the SPLITLINE M/SHIFTLINE M modules family
Magnetic modules to be used with the SPLITLINE M and SHIFTLINE M profiles.
Download The Lighting Bible 14.
View beautiful magazines online.
Contact us for additional information.
Related products
Recently Viewed Products
M26L/M35R - SPY 66 TW 96530 DIM5
23292 9025
×
Available colors
-
BLACK
23292 9025 B -
WHITE
23292 9025 W
Recent Projects

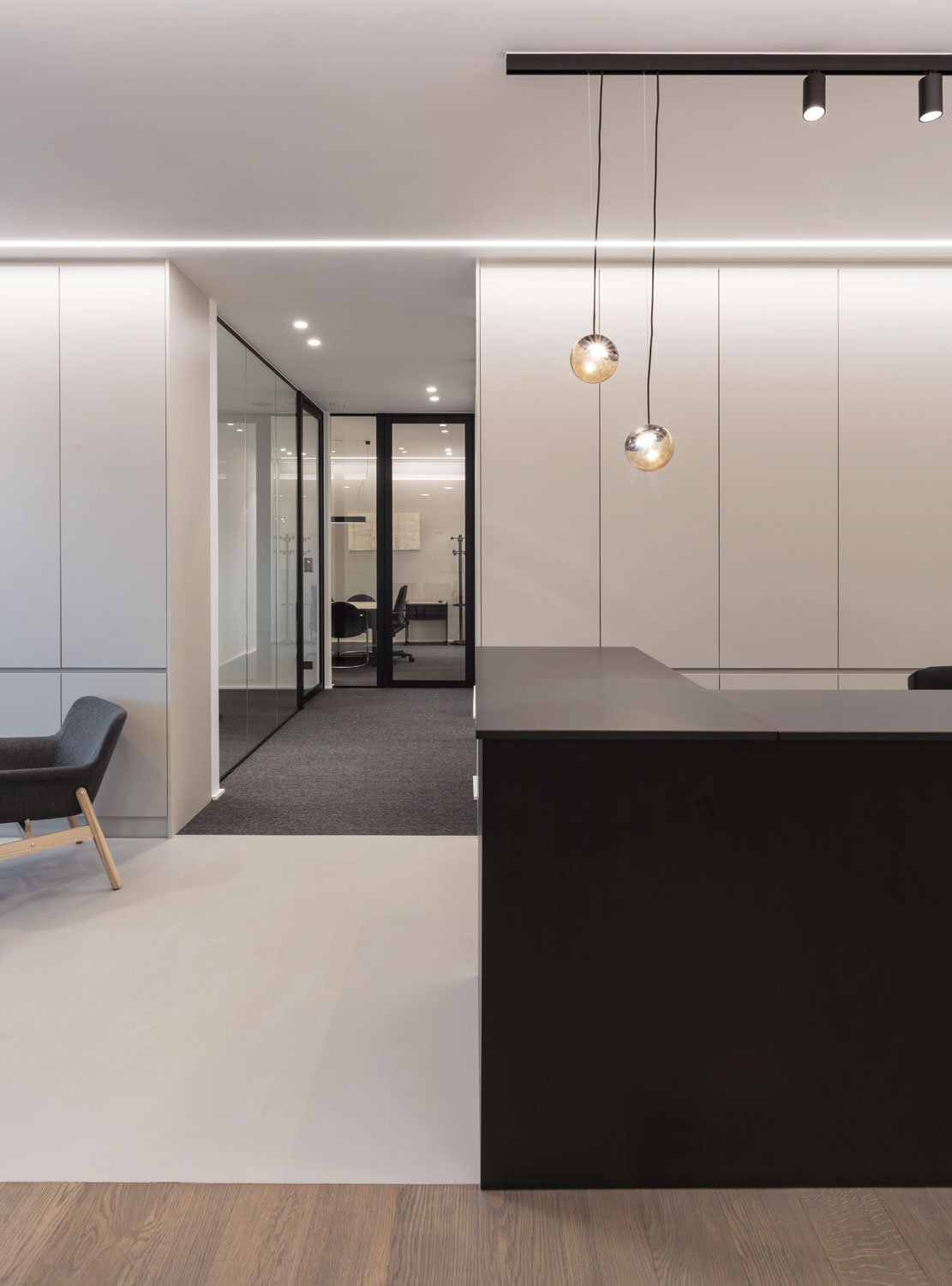

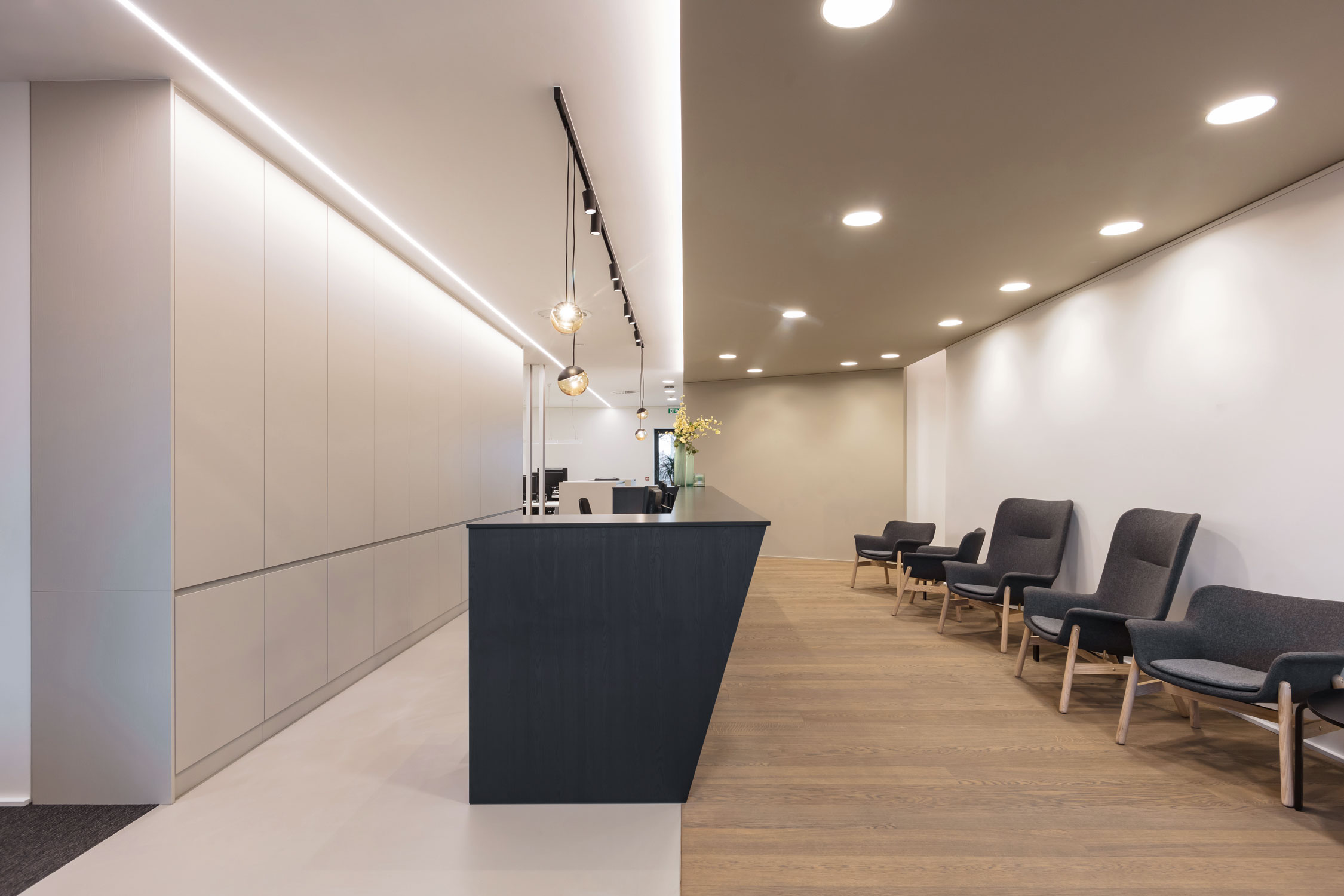

Dokterspraktijk - Maarkedal (BE)
