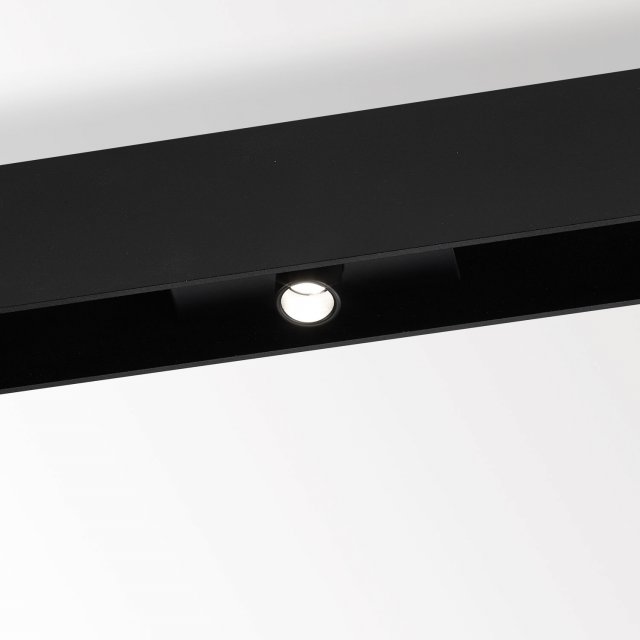

M44 - 1 LED 82720 MDL
23266 8220
CRI
Beam angle
CCT
General
| Location | Indoor |
| CCT | 2700K |
| Fixation | Low voltage systems |
| Installation | Low voltage system mounted |
| IP | IP20 |
| Weight (kg) | 0.3 |
| Adjustability | non adjustable |
| Information | LENS FL-20°
EXCL.LED POWER SUPPLY 48V-DC |
Electrical
| Voltage | 48V-DC |
| Class | III |
| Dimming type | MDL = 1-10V or DALI or push button |
| Energy class | F |
| Certificates | CB, EAC, ENEC |
Lightsource
| Light source | LED |
| LED information | LED array 6W / CRI>80 / 2700K / 558lm |
| SDCM | SDCM2 |
| LED technics (light source) | 558lm // 6W // 94lm/W |
| LED technics (luminaire) | 474lm // 6,9W // 69lm/W |
Additional
| Requirements | LED POWER SUPPLY 48V-DC |
| Options | DIMMABLE MODULATOR |
Technical data was measured in optimum conditions.
Downloads
Following downloads are available:
Finish your specifications
Use the information listed below to complete your product
requirement
LED power supplies
| Product name | Voltage | Class | Dimming type | IP | Cutout shape | Cutout size | max. devices / supply | ||
|---|---|---|---|---|---|---|---|---|---|
 | LED POWER SUPPLY 48V-DC / 100W | 120-240V | II | non-dimmable | IP20 | round | 40 | 14 | Add to pinlist |
| | LED POWER SUPPLY 48V-DC / 200W | 120-240V | II | non-dimmable | IP20 | round | 40 | 29 | Add to pinlist |
 | LED POWER SUPPLY 48V-DC / 100W DIN | 110-240V | II | non-dimmable | IP20 | round | - | 14 | Add to pinlist |
 | LED POWER SUPPLY 48V-DC / 240W DIN | 100-240V | II | non-dimmable | IP20 | round | - | 34 | Add to pinlist |
