SPLITLINE M52 profile
| Product name | Reference number |
|---|---|
| SPM52 - PROFILE | 24413 0000 |
| SPM52 - PROFILE 1m | 420 52 10 00 |
| SPM52 - PROFILE 2m | 420 52 20 00 |
| SPM52 - PROFILE 3m | 420 52 30 00 |

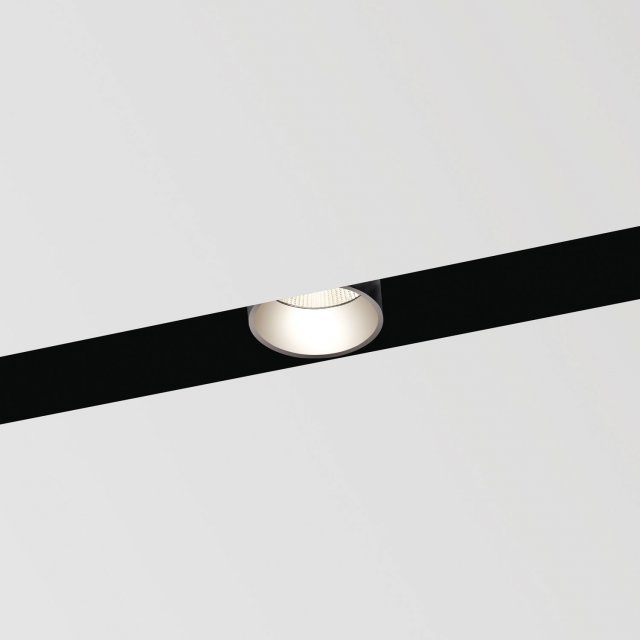

M52 - 1 LED D 9-SOFT DIM5
SPLITLINE MAGNETIC 52 - LED
24416 9025
CRI
Beam angle
CCT
General
| Location | Indoor |
| CCT | 2700K-1800K |
| Fixation | Low voltage systems |
| Installation | Low voltage system mounted |
| IP | IP20 |
| Weight (kg) | 0.3 |
| Adjustability | non adjustable |
| Information | REFLECTOR FL-40°
EXCL.LED POWER SUPPLY 48V-DC |
Electrical
| Voltage | 48V-DC |
| Class | III |
| Dimming type | DALI |
| Energy class | F |
| Certificates | CB, ENEC |
Lightsource
| Light source | LED |
| LED information | LED array 9,5W / CRI>90 / 2700K-1800K / 760lm |
| SDCM | SDCM3 |
| Riskgroup | RG0 |
| LED technics (light source) | 760lm // 9,5W // 82lm/W |
| LED technics (luminaire) | 398lm // 10,9W // 36lm/W |
Additional
| Requirements | LED POWER SUPPLY 48V-DC |
Technical data was measured in optimum conditions.
Downloads
Following downloads are available:
Finish your specifications
Use the information listed below to complete your product
requirement
LED power supplies
| Product name | Voltage | Class | Dimming type | IP | Cutout shape | Cutout size | max. devices / supply | ||
|---|---|---|---|---|---|---|---|---|---|
 | LED POWER SUPPLY 48V-DC / 100W | 120-240V | II | non-dimmable | IP20 | round | 40 | 9 | Add to pinlist |
| | LED POWER SUPPLY 48V-DC / 200W | 120-240V | II | non-dimmable | IP20 | round | 40 | 18 | Add to pinlist |
 | LED POWER SUPPLY 48V-DC / 100W DIN | 110-240V | II | non-dimmable | IP20 | round | - | 9 | Add to pinlist |
 | LED POWER SUPPLY 48V-DC / 240W DIN | 100-240V | II | non-dimmable | IP20 | round | - | 22 | Add to pinlist |
Compatibility
