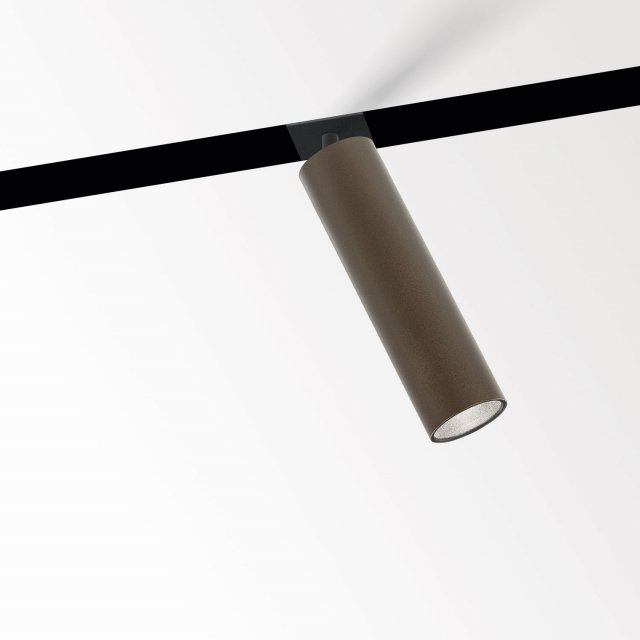

M52 - SPY 391 L 92720 MDL FBR

SPY 39 L TUBE B

Black - 24144 0020 B
More info
CRI
Beam angle
CCT

General

Location
Indoor
CCT
2700K
Fixation
Low voltage systems
Installation
Low voltage system mounted
IP
IP20
Weight (kg)
0.6
Adjustability
0° to 85° swiveling, 355° rotatable
Information
REFLECTOR FL-20° EXCL.LED POWER SUPPLY 48V-DC

Electrical

Voltage
48V-DC
Class
III
Dimming type
MDL = 1-10V or DALI or push button
Energy class
E

Lightsource

Light source
LED
LED information
LED array 8,6W / CRI>90 (R9: 60) / 2700K / 1041lm
TM-30 Values
Rf: 89 / Rg: 100
SDCM
SDCM1
Riskgroup
RG1
LM80
L90B10 > 50000
LED technics (light source)
1041lm // 8,6W // 121lm/W
LED technics (luminaire)
652lm // 10W // 66lm/W

Additional

Remarks
Requirements
SPY 39 L TUBE LED POWER SUPPLY 48V-DC
Options
DIMMABLE MODULATOR
Technical data was measured in optimum conditions.

Downloads

Following downloads are available:

Compatibility
