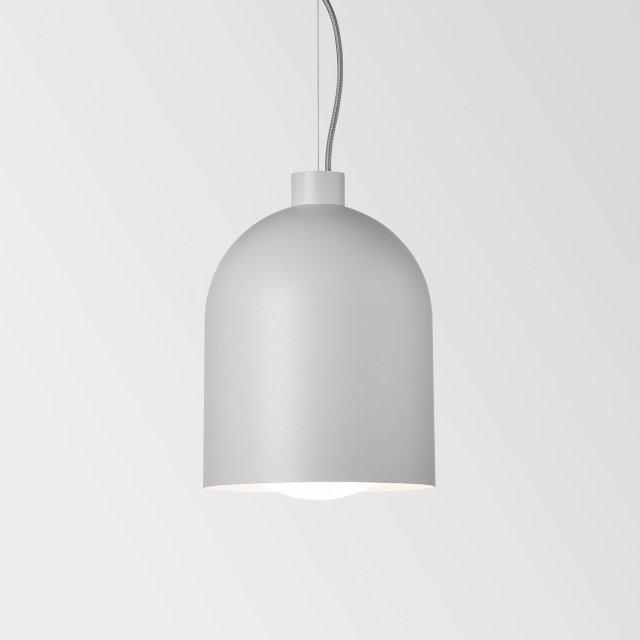

MANTELLO L2028 LED 927 DIM8 RW
Raw White - 25815 9208 RW
CRI
CCT
General
| Location | Indoor |
| CCT | 2700K |
| Fixation | Ceiling |
| Installation | Suspended |
| IP | IP20 |
| Weight (kg) | 1.13 |
| Adjustability | non adjustable |
| Information | INCL.1 x CABLE 3 x 0.75mm² 1,6m
INCL.1 x CABLE SUSPENSION SINGLE AUTOM. 1.6m
INCL.DIMMABLE LED POWER SUPPLY 500mA-DC |
Electrical
| Voltage | 220-240V / 50-60Hz |
| Class | I |
| Dimming type | mains (phase cut-off) |
| Energy class | F |
Lightsource
| Light source | LED |
| LED information | LED array 10,4W / CRI>90 (R9: 60) / 2700K / 1083lm |
| TM-30 Values | rf: 89 / Rg: 100 |
| SDCM | SDCM2 |
| Riskgroup | RG1 |
| LM80 | L90B10 > 50000 |
| LED technics (light source) | 1083lm // 10,4W // 105lm/W |
| LED technics (luminaire) | 611lm // 12W // 51lm/W |
Additional
| Requirements | CEILING BASE 1RC
CEILING BASE 3ROC
SUSPENSION + CONNECTION TRIMLESS |
Technical data was measured in optimum conditions.
