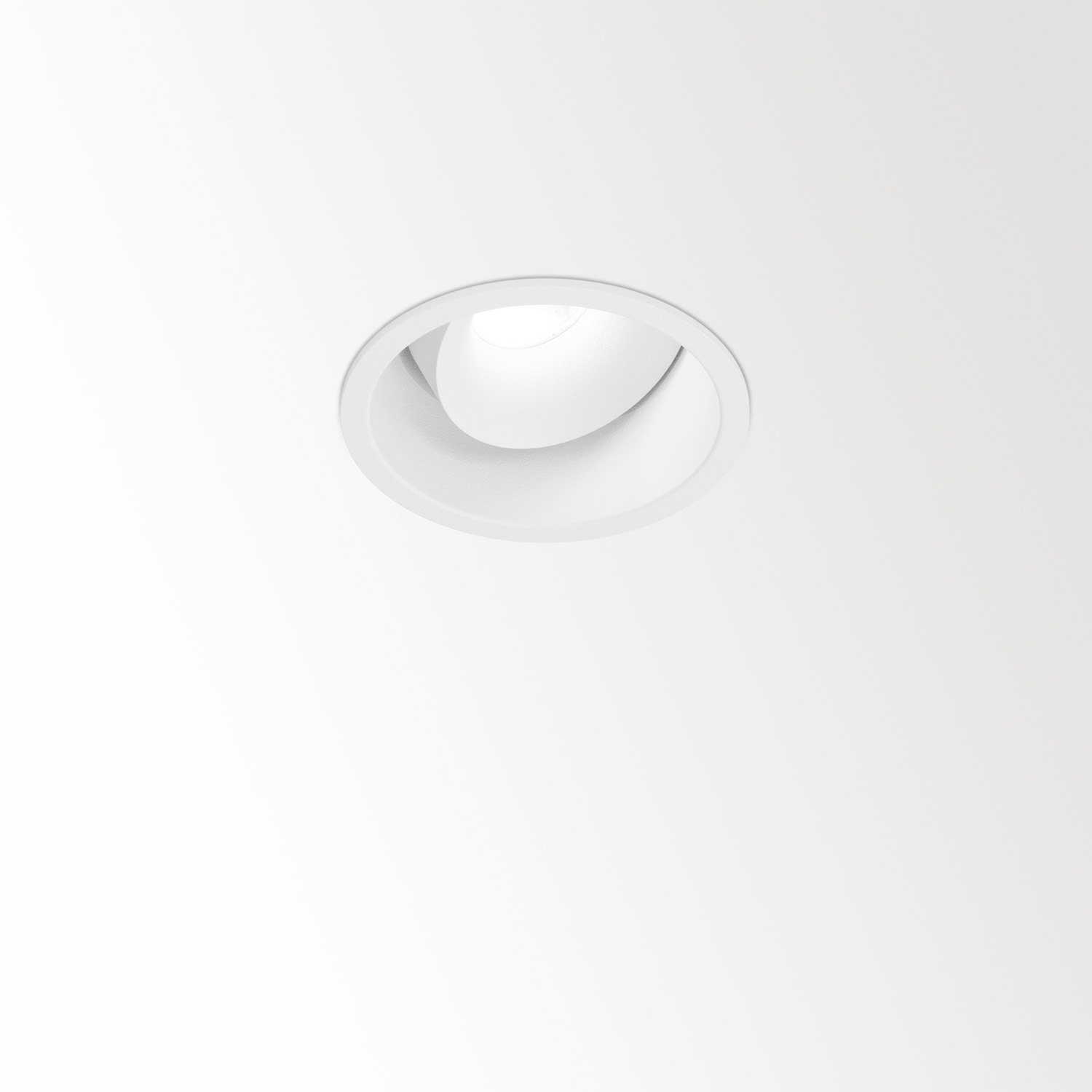

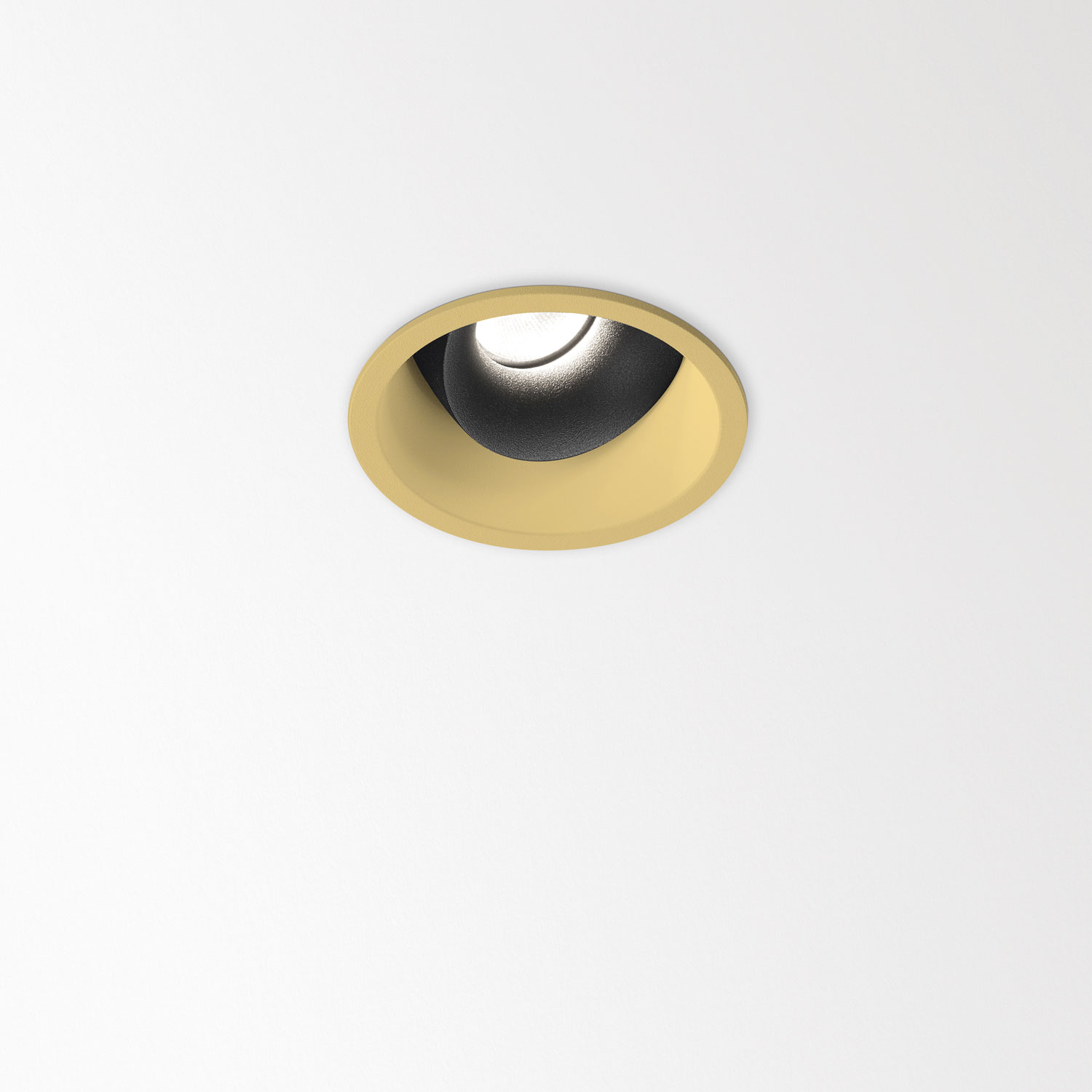

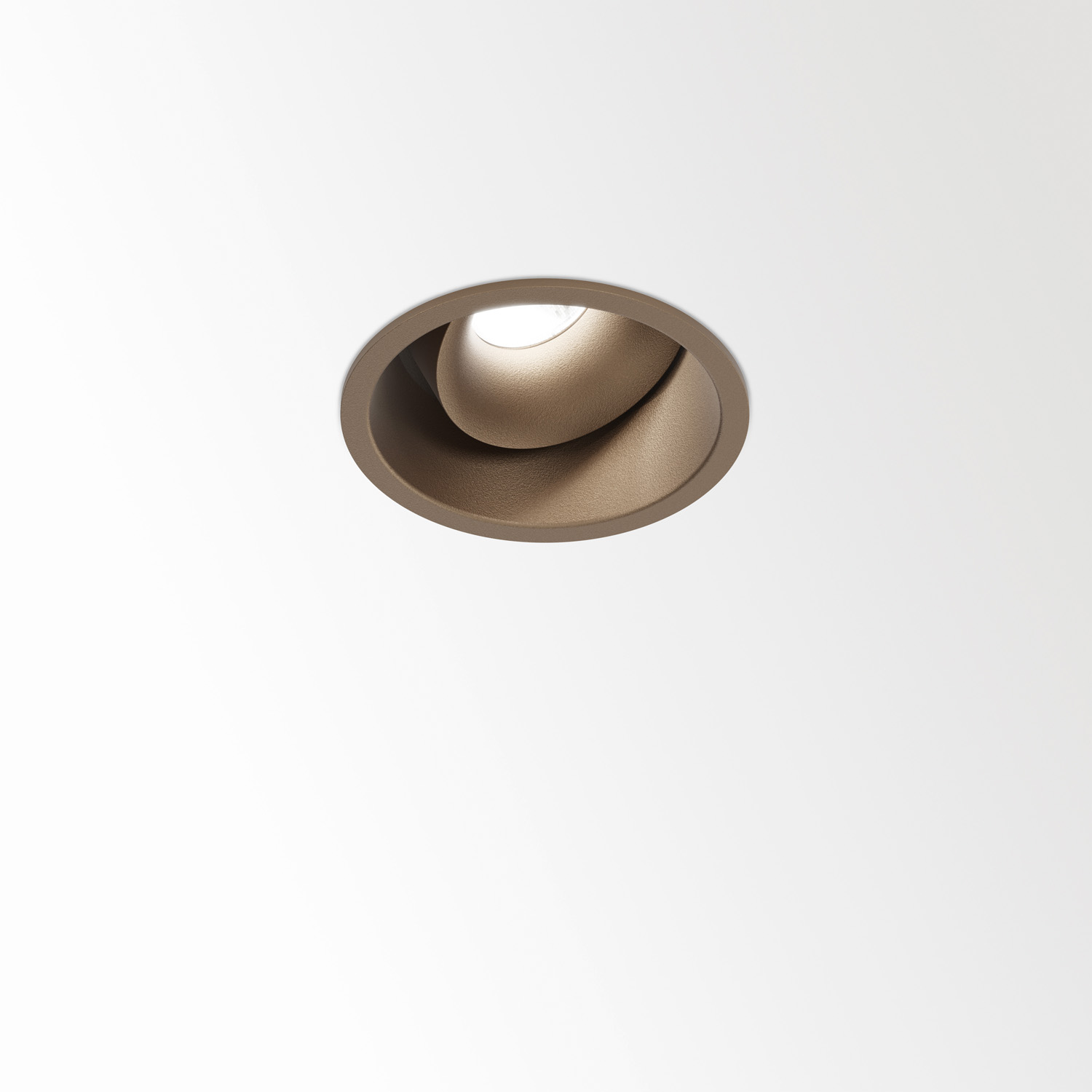

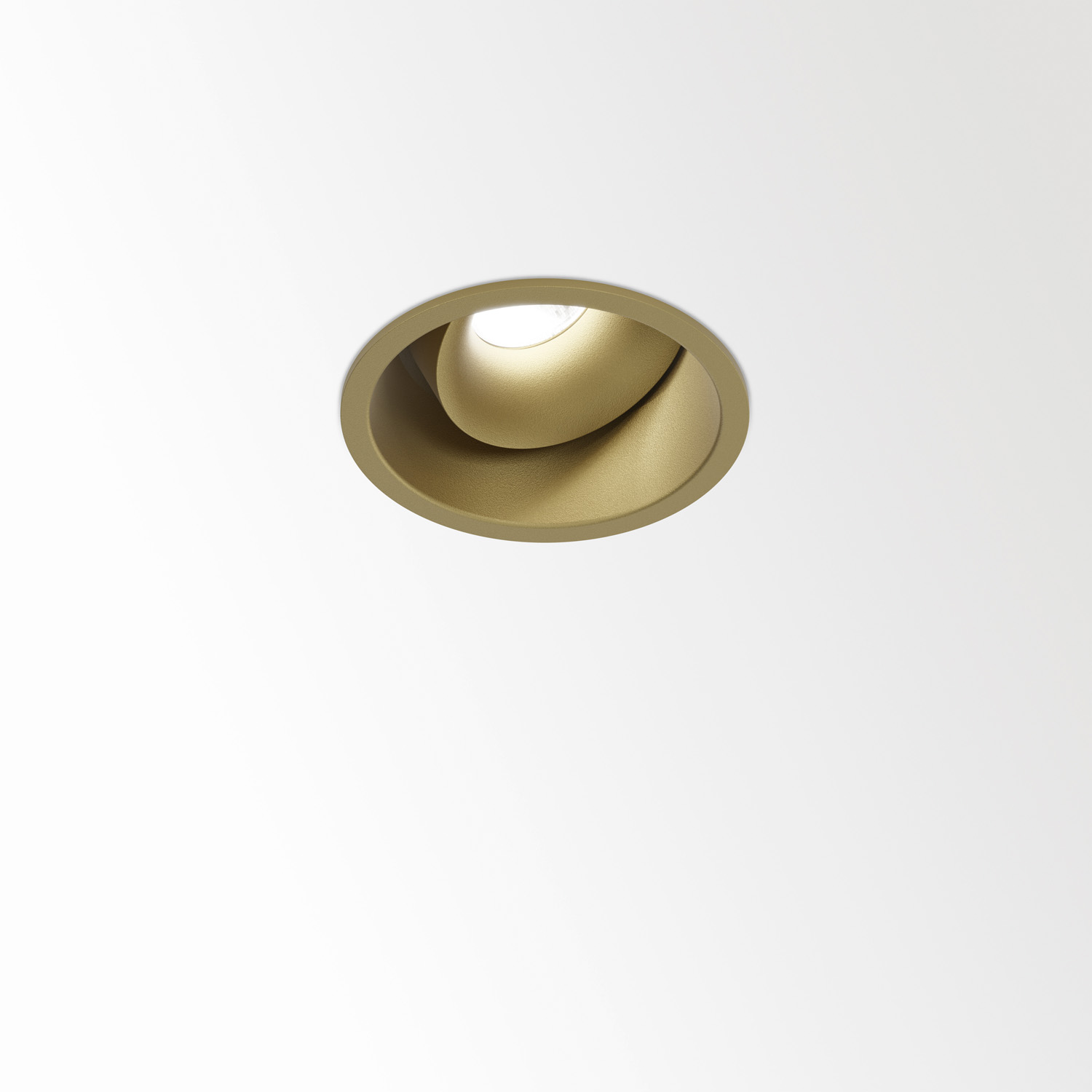

MINI DEEP RINGO II OK 93018
Available colors
-
BLACK
19425 9310 B -
WHITE
19425 9310 W -
GOLD COLORED
19425 9310 GC -
FLEMISH GOLD
19425 9310 FG -
FLEMISH BRONZE
19425 9310 FBR
Characteristics
| Location | INTERIOR |
|---|---|
| Fixation | Ceiling Recessed |
| Cutout shape/size |  71 mm |
| Recessed depth | 80 mm |
| Thickness of mounting surface | min.5 mm |
| Information |
ADJUSTABLE 0-30°/360° 1 x LED 6,1-9W / CRI>90 / 3000K / 775-1076lm REFLECTOR SP-18° EXCL.LED POWER SUPPLY 350-500mA-DC |
| CRI | CRI 90 |
| Colour temp | Warm White (+3000K) |
| LED Technics (light source) | 1076 lm // 9 W // 120 lm/W |
| LED Technics (luminaire) | 745 lm // 10 W // 72 lm/W |
| Electrical | |
| Class | Class III |
| Nett weight | 0.4 Kg |
| IP | IP20 |
| Minimum distance | n.a. |
| Remarks | n.a. |
| Energy Class | E |
| Requirements |
LED POWER SUPPLY 350 / 500mA-DC DIM |
Description icons:
-
The CE marking on many products shows that the products is compliant with the European regulations.
-
A Class III appliance is designed to be supplied from a separated/safety extra-low voltage (SELV) power source. The voltage from a SELV supply is low enough that under normal conditions a person can safely come into contact with it.
-
Ceiling recessed
Finish your specification
Requirements
300 48 350 ED1
LED POWER CONVERTER 48V-DC to 350 mA-DC / 15W DIM1
300 48 350 ED5
LED POWER CONVERTER 48V-DC to 350 mA-DC / 15W DIM5
300 48 350 MDL
LED POWER CONVERTER 48V-DC to 350 mA-DC / 15W MDL
300 48 350 WDL
LED POWER CONVERTER 48V-DC to 350 mA-DC / 15W WDL
300 48 500 ED1
LED POWER CONVERTER 48V-DC to 500 mA-DC / 22W DIM1
300 48 500 ED5
LED POWER CONVERTER 48V-DC to 500 mA-DC / 22W DIM5
300 48 500 MDL
LED POWER CONVERTER 48V-DC to 500 mA-DC / 22W MDL
300 48 500 WDL
LED POWER CONVERTER 48V-DC to 500 mA-DC / 22W WDL
21012 0308
LED POWER SUPPLY 350mA / 7,35W DIM8
21012 0318
LED POWER SUPPLY 500mA / 10W DIM8
21012 0010
LED POWER SUPPLY MULTI POWER
21012 0021
LED POWER SUPPLY MULTI POWER DIM1
21012 0035
LED POWER SUPPLY MULTI POWER DIM5
21012 005W
LED POWER SUPPLY MULTI-POWER COMPACT WDL
300 90 68
LED POWER SUPPLY MULTI-POWER DIM5
300 90 61
LED POWER SUPPLY MULTI-POWER DIM6
300 90 124
LED POWER SUPPLY MULTI-POWER DIM7
300 90 64
LED POWER SUPPLY MULTI-POWER DIM7
300 90 63
LED POWER SUPPLY MULTI-POWER DIM9
300 90 135
LED POWER SUPPLY MULTI-POWER HV
300 90 69
LED POWER SUPPLY MULTI-POWER HV DIM9
300 90 125
LED POWER SUPPLY MULTI-POWER MINI DIM5
21012 004W
LED POWER SUPPLY MULTI-POWER WDL
Ceiling compatibility
Plasterboard
Stucanet
Wood
Concrete
Concrete + plaster
Lintel + plaster
Hollow-core slab
Hollow-core slab + plaster
Stretched ceiling
Discover more about the DEEP RINGO family
The conical-shaped design of the Deep Ringo fixtures and its deeper placed LED source make sure that glare is reduced to a minimum when Deep Ringo is installed in the ceiling. The small trim gives a refined touch to this elegant luminaire. Available in 3 sizes, with trim or trimless, fix or adjustable, a range of beam angles and multiple finishing colours, Deep Ringo is an easy-to-use downlight throughout the project. Its golden or bronze finish is perfect to add a sniff of luxury to the room. MINI DEEP RINGO Mini Deep Ringo is playful, as it comes in a multitude of finishing colours, has 3 different beam angles to choose from and can be fix or adjustable. A range of possibilities in a slender design. DEEP RINGO Deep Ringo is the most elaborate of the family, offering LED and halogen solutions, for use in both dry and wet areas. Similar as the Reo family, Deep Ringo also offers a ribbed version that reduces the glare thanks to its cascading transition from light source to ceiling. DEEP RINGO X - Outdoor The conical-shaped design of the Deep Ringo fixtures and the deeper placed LED source make sure that glare is reduced to a minimum when Deep Ringo is installed in the ceiling. The small trim gives a refined touch to this elegant luminaire.
