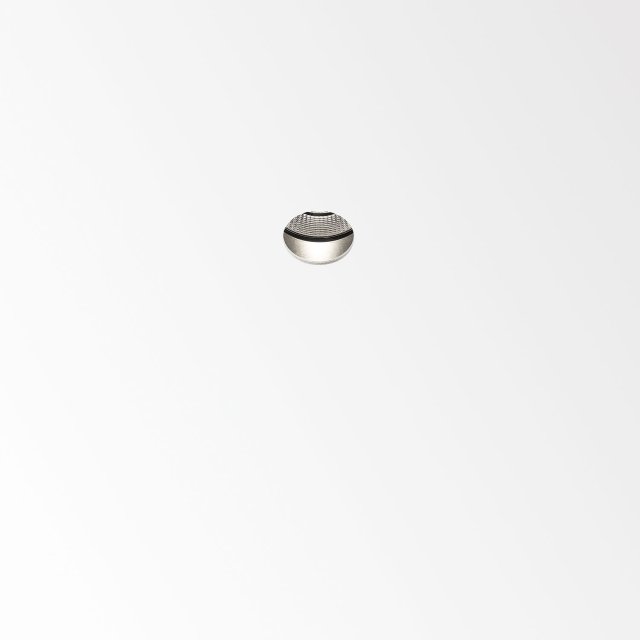

MINI DIRO R TRIMLESS 82720
415 332 822
CRI
Beam angle
CCT
General
| Location | Indoor |
| CCT | 2700K |
| Fixation | Ceiling |
| Installation | Recessed |
| Cutout shape | round |
| Cutout size (mm) | 67 |
| Min. recessed depth (mm) | 70 |
| Thickness of mounting surface (mm) | max.25 |
| IP | IP20 |
| Weight (kg) | 0.2 |
| Adjustability | non adjustable |
| Information | LENS FL-20°
EXCL.LED POWER SUPPLY 350-500mA-DC |
Electrical
| Class | III |
| Dimming type | depending on power supply |
| Energy class | F |
| Certificates | EAC |
Lightsource
| Light source | LED |
| LED information | LED array 4,1-6W / CRI>80 / 2700K / 420-558lm |
| SDCM | SDCM2 |
| LED technics (light source) | 558lm // 6W // 94lm/W |
| LED technics (luminaire) | 374lm // 6,9W // 54lm/W |
Additional
| Requirements | LED POWER SUPPLY 350 / 500mA-DC DIM |
Technical data was measured in optimum conditions.
