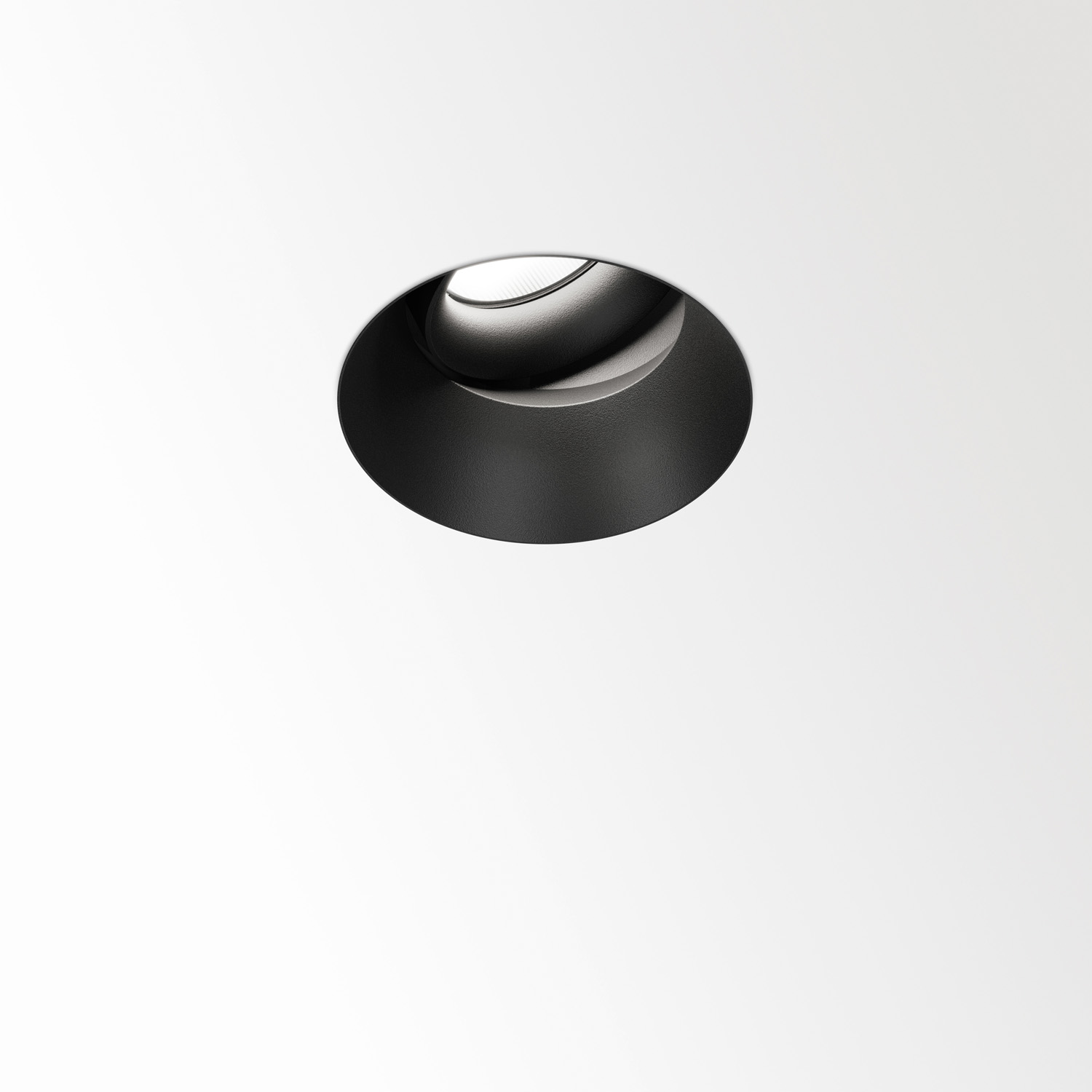

MINIGRID IN TRIMLESS 1 HP FRAME + MINIGRID SNAP-IN HP 93020
Available colors
-
BLACK + BLACK
202 792 01 B + 202 791 211 931 B -
WHITE + WHITE
202 792 01 W + 202 791 211 931 W -
BLACK + WHITE
202 792 01 B + 202 791 211 931 W -
WHITE + BLACK
202 792 01 W + 202 791 211 931 B
Characteristics
| Location | INTERIOR |
|---|---|
| Fixation | Ceiling Recessed |
| Cutout shape/size |  KIT mm |
| Recessed depth | 160 mm |
| Thickness of mounting surface | n.a. |
| Information |
ADJUSTABLE 0-25°/355° 1 x LED 16,3-23,2W / CRI>90 / 3000K / 2309-3169lm REFLECTOR SP-20° EXCL.LED POWER SUPPLY 500-700mA-DC Other CRI or KELVIN on request |
| CRI | CRI 90 |
| Colour temp | Warm White (+3000K) |
| LED Technics (light source) | 3169 lm // 23 W // 136 lm/W |
| LED Technics (luminaire) | 2234 lm // 27 W // 84 lm/W |
| Electrical | |
| Class | Class III |
| Nett weight | 0.6 Kg |
| IP | IP20 |
| Minimum distance | n.a. |
| Remarks | Parts to be ordered seperately. |
| Accessories |
HONEYCOMB 72 SOFTENING LENS 72 |
| Requirements |
MINIGRID IN 1 MOUNTING KIT HP LED POWER SUPPLY 500 / 700mA-DC DIM |
Description icons:
-
The CE marking on many products shows that the products is compliant with the European regulations.
-
A Class III appliance is designed to be supplied from a separated/safety extra-low voltage (SELV) power source. The voltage from a SELV supply is low enough that under normal conditions a person can safely come into contact with it.
-
Ceiling recessed
Finish your specification
Accessories
201 05 01
HONEYCOMB 72
201 05 04
SOFTENING LENS 72
Requirements
300 48 500 ED1
LED POWER CONVERTER 48V-DC to 500 mA-DC / 22W DIM1
300 48 500 ED5
LED POWER CONVERTER 48V-DC to 500 mA-DC / 22W DIM5
300 48 500 MDL
LED POWER CONVERTER 48V-DC to 500 mA-DC / 22W MDL
300 48 500 WDL
LED POWER CONVERTER 48V-DC to 500 mA-DC / 22W WDL
300 48 700 ED1
LED POWER CONVERTER 48V-DC to 700 mA-DC / 25W DIM1
300 48 700 ED5
LED POWER CONVERTER 48V-DC to 700 mA-DC / 25W DIM5
300 48 700 MDL
LED POWER CONVERTER 48V-DC to 700 mA-DC / 25W MDL
300 48 700 WDL
LED POWER CONVERTER 48V-DC to 700 mA-DC / 25W WDL
21012 0010
LED POWER SUPPLY MULTI POWER
21012 0021
LED POWER SUPPLY MULTI POWER DIM1
21012 0035
LED POWER SUPPLY MULTI POWER DIM5
21012 005W
LED POWER SUPPLY MULTI-POWER COMPACT WDL
300 90 68
LED POWER SUPPLY MULTI-POWER DIM5
300 90 61
LED POWER SUPPLY MULTI-POWER DIM6
300 90 124
LED POWER SUPPLY MULTI-POWER DIM7
300 90 64
LED POWER SUPPLY MULTI-POWER DIM7
300 90 63
LED POWER SUPPLY MULTI-POWER DIM9
300 90 135
LED POWER SUPPLY MULTI-POWER HV
300 90 69
LED POWER SUPPLY MULTI-POWER HV DIM9
300 90 125
LED POWER SUPPLY MULTI-POWER MINI DIM5
21012 004W
LED POWER SUPPLY MULTI-POWER WDL
202 71 95 01 HP
MINIGRID IN 1 MOUNTING KIT HP
Ceiling compatibility
Discover more about the MINIGRID IN family
MINIGRID IN ZB The ZB principle stands for clean lines and minimalist design. Theses luminaires can be built into a cove in the ceiling or an optional box can be used as easy installation frame. SNAP IN The Snap-In principle equals modularity and flexibility at its best, it grants the opportunity to the lighting designer to use his creativity: combine single and double units, use multiple beam angles or play with colour. All to use as surface mounted luminaire or as recessed spotlights, both with or without trim. Dividing a luminaire into multiple modular parts not only creates uniformity within one family, it also facilitates the installation by giving the opportunity to the installer to place the frame in advance. No need to worry for the lighting modules in further finishing of the room, as the modules can be clicked into the frame afterwards.
