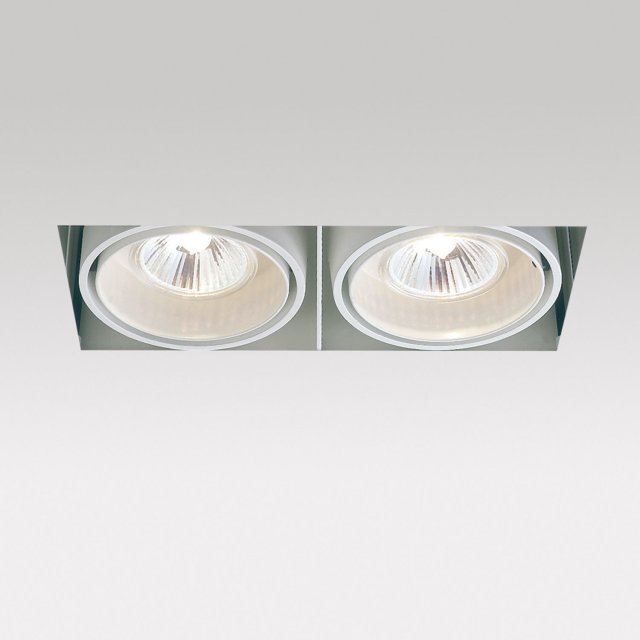

MINIGRID IN TRIMLESS 2 50 G-W
Greywhite - 202 71 55 02 G-W
General
| Location | Indoor |
| Fixation | Ceiling, Wall |
| Installation | Recessed |
| Cutout shape | rectangle |
| Cutout size (mm) | 211 x 108 |
| Min. recessed depth (mm) | 140 |
| Thickness of mounting surface (mm) | max.40 |
| IP | IP20 |
| Weight (kg) | 0.8 |
| Adjustability | 0° to 30° swiveling |
Electrical
| Voltage | 12V |
| Electrical | GU5.3 / 12V / EXCL.TRANSFO
2 x QR-C51 max.50W
2 x QR-CBC51 max.35W |
| Class | III |
Lightsource
| Light source | Halogen |
| Min. distance to lightsource (m) | 0,5 |
Additional
| Remarks | WHITE finish : max. 35W |
| Options | MINIGRID IN 2 MOUNTING KIT
MINIGRID IN 2 MOUNTING KIT LARGE
CONCRETE PACK MGIT 2
TRANSFO |
| Accessories | CONE 50
CLIP 50 + DICROIC FILTER 50 |
Technical data was measured in optimum conditions.
Downloads
Following downloads are available:
Ceiling compatibility
Please find an overview of the suitable ceiling types for this specific product.
Ceiling Type
Mounting kit
-
Finish your specifications
Use the information listed below to complete your product
optional
Concrete packs
| Product name | Cutout shape | Cutout size | Min. recessed depth | ||
|---|---|---|---|---|---|
 | CONCRETE PACK MGIT 2 | rectangle | 260 x 160 | 140 | Add to pinlist |
Mounting kits
| Product name | Cutout shape | Cutout size | Thickness of mounting surface | ||
|---|---|---|---|---|---|
 | MINIGRID IN 2 MOUNTING KIT | rectangle | 130 x 233 | max.25 | Add to pinlist |
 | MINIGRID IN 2 MOUNTING KIT LARGE | round | 200 - 100 - 200 | - | Add to pinlist |
