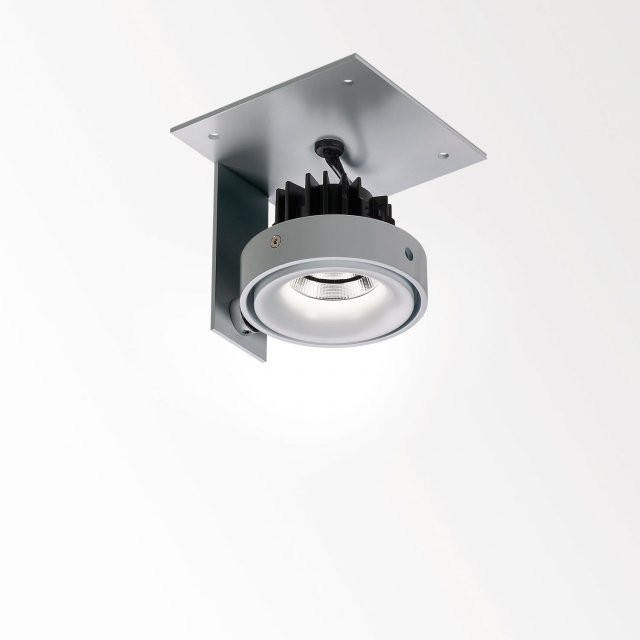

MINIGRID IN ZB 1 93033
Available colors
-
ALU GREY
202 70 811 932 A -
WHITE
202 70 811 932 W
Characteristics
| Location | INTERIOR |
|---|---|
| Fixation | Ceiling Recessed |
| Cutout shape/size |  109 x 109 mm |
| Recessed depth | 113 mm |
| Thickness of mounting surface | n.a. |
| Information |
ADJUSTABLE 0-30° INCL.1 x LED 7,1-10,4W / CRI>90 / 3000K / 774-1075lm INCL.1 x REFLECTOR FL-33° EXCL.LED POWER SUPPLY 350-500mA-DC Other CRI or KELVIN on request |
| CRI | CRI 90 |
| Colour temp | Warm White (+3000K) |
| LED Technics (light source) | 1075 lm // 10 W // 110 lm/W |
| LED Technics (luminaire) | 875 lm // 12 W // 73 lm/W |
| Electrical | |
| Class | Class III |
| Nett weight | 0.6 Kg |
| IP | IP23/20 |
| Minimum distance | n.a. |
| Remarks | n.a. |
| Options |
MINIGRID IN ZB 1 BOX L |
| Requirements |
LED POWER SUPPLY 350 / 500mA-DC DIM |
Description icons:
-
The CE marking on many products shows that the products is compliant with the European regulations.
-
Explanation of the class symbol
-
Ceiling recessed
Finish your specification
Options
202 70 98 01
MINIGRID IN ZB 1 BOX L
Requirements
300 48 350 ED1
LED POWER CONVERTER 48V-DC to 350 mA-DC / 15W DIM1
300 48 350 ED5
LED POWER CONVERTER 48V-DC to 350 mA-DC / 15W DIM5
300 48 350 MDL
LED POWER CONVERTER 48V-DC to 350 mA-DC / 15W MDL
300 48 350 WDL
LED POWER CONVERTER 48V-DC to 350 mA-DC / 15W WDL
300 48 500 ED1
LED POWER CONVERTER 48V-DC to 500 mA-DC / 22W DIM1
300 48 500 ED5
LED POWER CONVERTER 48V-DC to 500 mA-DC / 22W DIM5
300 48 500 MDL
LED POWER CONVERTER 48V-DC to 500 mA-DC / 22W MDL
300 48 500 PRO ED1
LED POWER CONVERTER 48V-DC to 500 mA-DC / 22W PRO DIM1
300 48 500 PRO ED5
LED POWER CONVERTER 48V-DC to 500 mA-DC / 22W PRO DIM5
300 48 500 PRO WDL
LED POWER CONVERTER 48V-DC to 500 mA-DC / 22W PRO WDL
300 48 500 WDL
LED POWER CONVERTER 48V-DC to 500 mA-DC / 22W WDL
300 90 110
LED POWER SUPPLY 350mA-DC / 10W DIM8
300 90 91
LED POWER SUPPLY 350mA-DC / 15W
300 90 3112
LED POWER SUPPLY 350mA-DC / 16W DIM8
300 90 116
LED POWER SUPPLY 350mA-DC / 18W DIM8
300 90 108
LED POWER SUPPLY 350mA-DC / 8W
300 90 121
LED POWER SUPPLY 500mA-DC / 20W DIM8
300 90 92
LED POWER SUPPLY 500mA-DC / 21W
300 90 5120
LED POWER SUPPLY 500mA-DC / 22W DIM8
21012 005W
LED POWER SUPPLY MULTI-POWER COMPACT WDL
300 90 68
LED POWER SUPPLY MULTI-POWER DIM5
300 90 61
LED POWER SUPPLY MULTI-POWER DIM6
300 90 124
LED POWER SUPPLY MULTI-POWER DIM7
300 90 64
LED POWER SUPPLY MULTI-POWER DIM7
300 90 63
LED POWER SUPPLY MULTI-POWER DIM9
300 90 135
LED POWER SUPPLY MULTI-POWER HV
300 90 134
LED POWER SUPPLY MULTI-POWER HV DIM7
300 90 69
LED POWER SUPPLY MULTI-POWER HV DIM9
300 90 125
LED POWER SUPPLY MULTI-POWER MINI DIM5
21012 004W
LED POWER SUPPLY MULTI-POWER WDL
Ceiling compatibility
Discover more about the GRID IN family
The Grid product family is a longstanding classic in the collection. First as halogen and discharge solutions, later as LED dowlight and afterwards updated to the Snap In principle, a smart and easy way of seperating the mounting frame from the LED module, with comfortable installation as a result. With lumen packages up to 4000lm, the Grid In HP downlights offer a strong and energy friendly alternative for discharge lamps. This result is achieved through the combination of reflectors in high purity aluminium quality, high performance led arrays and intelligent cooling. For projects where the power of the Grid In is not needed, Minigrid In steps up. Characterized by the same quality as Grid In together with the possibility of a 6° beam angle, Minigrid In is a perfect addition to the Grid family.
