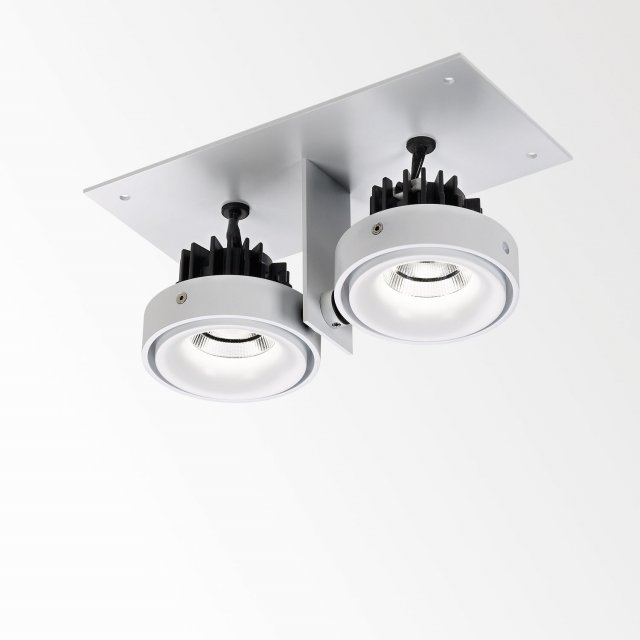

MINIGRID IN ZB 2 93033 W
White - 202 70 812 932 W
CRI
Beam angle
CCT
General
| Location | Indoor |
| CCT | 3000K |
| Fixation | Ceiling |
| Installation | Recessed |
| Cutout shape | rectangle |
| Cutout size (mm) | 219 x 109 |
| Min. recessed depth (mm) | 113 |
| IP | IP23/20 |
| Weight (kg) | 1.1 |
| Adjustability | 0° to 30° swiveling |
| Information | 2 x REFLECTOR FL-33°
EXCL.LED POWER SUPPLY 350-500mA-DC |
Electrical
| Class | III |
| Dimming type | depending on power supply |
| Energy class | E |
| Certificates | CB, ENEC |
Lightsource
| Light source | LED |
| LED information | 2 x (LED array 7,1-10,4W / CRI>90 (R9: 52) / 3000K / 812-1128lm) |
| TM-30 Values | rf: 90 / Rg: 99 |
| SDCM | SDCM2 |
| Riskgroup | RG1 |
| LM80 | L90B10 > 50000 |
| LED technics (light source) | 2256lm // 20,8W // 109lm/W |
| LED technics (luminaire) | 1837lm // 23,9W // 77lm/W |
Additional
| Requirements | LED POWER SUPPLY 350 / 500mA-DC DIM |
| Options | MINIGRID IN ZB 2 BOX L |
Technical data was measured in optimum conditions.
