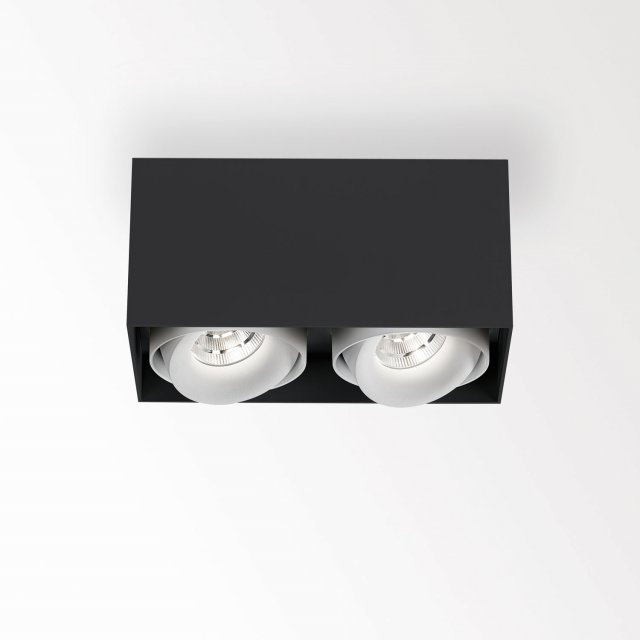

MINIGRID ON 250 92718 DIM8 B-W

MINIGRID ON 235 BOX DIM8 B + 2 x MINIGRID SNAP-IN 92733 W

MINIGRID 86 SURFACE MOUNTED DOUBLE HEAD
Black + White - 202 79 02 ED8 B + 2 x 202 790 811 922 W
CRI
Beam angle
CCT

General

Location
Indoor
CCT
2700K
Fixation
Ceiling
Installation
Surface mounted
IP
IP20
Weight (kg)
1.8
Adjustability
0° to 20° swiveling, 350° rotatable
Information
2 x REFLECTOR FL-33° INCL.DIMMABLE LED POWER SUPPLY 350mA-DC

Electrical

Voltage
100-240V / 50-60Hz
Class
II
Dimming type
mains (phase cut-off)

Lightsource

Light source
LED
LED information
2 x (LED array 7,1W / CRI>90 (R9: 60) / 2700K / 779lm)
TM-30 Values
rf: 89 / Rg: 100
SDCM
SDCM2
Riskgroup
RG1
LM80
L90B10 > 50000
LED technics (light source)
1558lm // 14,2W // 110lm/W
LED technics (luminaire)
1269lm // 16,3W // 78lm/W

Additional

Remarks
Parts to be ordered separately
Technical data was measured in optimum conditions.
