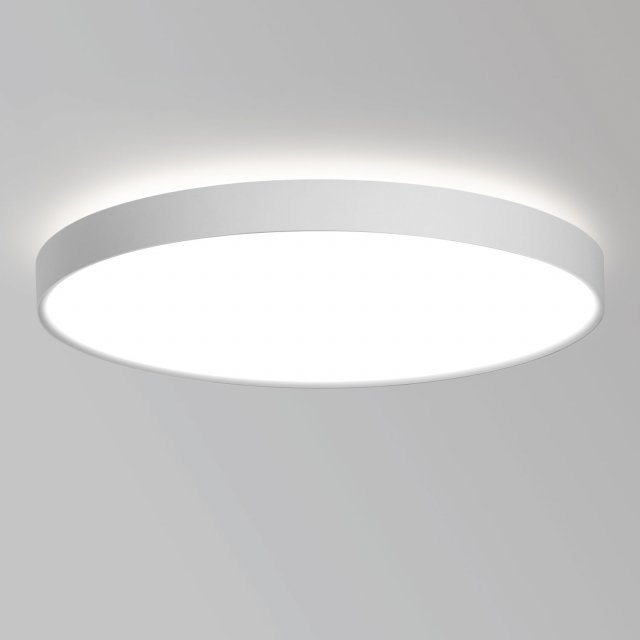

MULTINOVA 55 DOWN-UP PRISM 930 DIM4 W
White - 28018 9304 W
CRI
CCT
General
| Location | Indoor |
| CCT | 3000K |
| Fixation | Ceiling |
| Installation | Suspended |
| IP | IP20 |
| Weight (kg) | 4.6 |
| Adjustability | non adjustable |
| Information | INCL.PC PRISMATIC
INCL.DIMMABLE LED POWER SUPPLY |
Electrical
| Voltage | 220-240V / 50-60Hz |
| Class | I |
| Dimming type | DALI or DSI or push button |
| Energy class | D |
| Certificates | CB, ENEC, RCM |
Lightsource
| Light source | LED |
| LED information | DOWN: LED cluster 34,4W / CRI>90 (R9: 68) / 3000K / 4767lm
UP: LED cluster 5,1W / CRI>90 (R9: 68) / 3000K / 706lm |
| TM-30 Values | Rf: 89 / Rg: 97 |
| SDCM | SDCM3 |
| LM80 | L70 > 60000 |
| LED technics (light source) | DOWN: 4767lm // 34,4W // 139lm/W
UP: 706lm // 5,1W // 139lm/W |
| LED technics (luminaire) | DOWN: 3466lm // 39,6W // 88lm/W
UP: 668lm // 5,9W // 114lm/W |
Additional
| Options | MULTINOVA 55 SUSPENSION SET
MULTINOVA ROD SUSPENSION |
Technical data was measured in optimum conditions.
