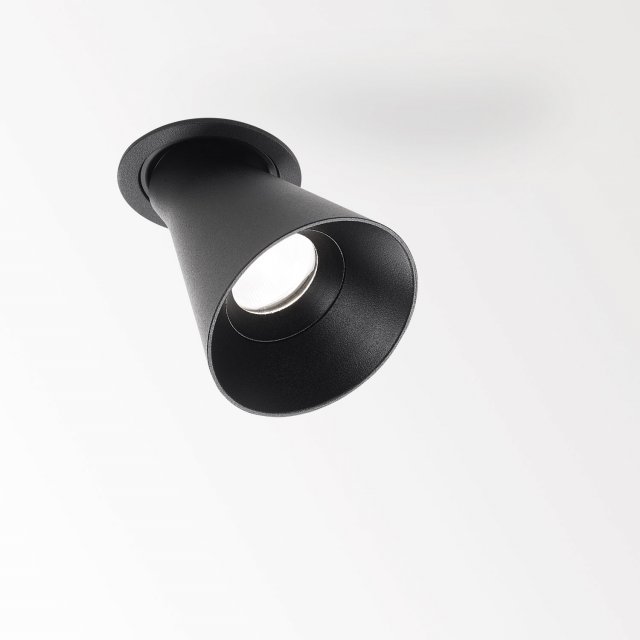

PION 93037
Available colors
-
BLACK-BLACK
26611 9330 B-B -
WHITE-WHITE
26611 9330 W-W -
GOLD COLORED-BLACK
26611 9330 GC-B
Characteristics
| Location | INTERIOR |
|---|---|
| Fixation | Ceiling Recessed |
| Cutout shape/size |  46 mm |
| Recessed depth | 40 mm |
| Thickness of mounting surface | min.5 mm |
| Information |
ADJUSTABLE 0-45°/355° 1 x LED 6,1-9W / CRI>90 / 3000K / 775-1076lm REFLECTOR FL-37° EXCL.LED POWER SUPPLY 350-500mA-DC Other CRI or KELVIN on request |
| CRI | CRI 90 |
| Colour temp | Warm White (+3000K) |
| LED Technics (light source) | 1076 lm // 9 W // 120 lm/W |
| LED Technics (luminaire) | 866 lm // 10 W // 84 lm/W |
| Electrical | |
| Class | Class III |
| Nett weight | 0.2 Kg |
| IP | IP20 |
| Minimum distance | n.a. |
| Remarks | n.a. |
| Energy Class | E |
| Accessories |
PION TUBE |
| Requirements |
LED POWER SUPPLY 350 / 500mA-DC DIM |
Description icons:
-
The CE marking on many products shows that the products is compliant with the European regulations.
-
A Class III appliance is designed to be supplied from a separated/safety extra-low voltage (SELV) power source. The voltage from a SELV supply is low enough that under normal conditions a person can safely come into contact with it.
-
Ceiling recessed
Finish your specification
Accessories
26610 0010
PION TUBE
Requirements
300 48 350 ED1
LED POWER CONVERTER 48V-DC to 350 mA-DC / 15W DIM1
300 48 350 ED5
LED POWER CONVERTER 48V-DC to 350 mA-DC / 15W DIM5
300 48 350 MDL
LED POWER CONVERTER 48V-DC to 350 mA-DC / 15W MDL
300 48 350 WDL
LED POWER CONVERTER 48V-DC to 350 mA-DC / 15W WDL
300 48 500 ED1
LED POWER CONVERTER 48V-DC to 500 mA-DC / 22W DIM1
300 48 500 ED5
LED POWER CONVERTER 48V-DC to 500 mA-DC / 22W DIM5
300 48 500 MDL
LED POWER CONVERTER 48V-DC to 500 mA-DC / 22W MDL
300 48 500 WDL
LED POWER CONVERTER 48V-DC to 500 mA-DC / 22W WDL
21012 0308
LED POWER SUPPLY 350mA / 7,35W DIM8
21012 0318
LED POWER SUPPLY 500mA / 10W DIM8
21012 0010
LED POWER SUPPLY MULTI POWER
21012 0021
LED POWER SUPPLY MULTI POWER DIM1
21012 0035
LED POWER SUPPLY MULTI POWER DIM5
21012 005W
LED POWER SUPPLY MULTI-POWER COMPACT WDL
300 90 68
LED POWER SUPPLY MULTI-POWER DIM5
300 90 61
LED POWER SUPPLY MULTI-POWER DIM6
300 90 124
LED POWER SUPPLY MULTI-POWER DIM7
300 90 64
LED POWER SUPPLY MULTI-POWER DIM7
300 90 63
LED POWER SUPPLY MULTI-POWER DIM9
300 90 135
LED POWER SUPPLY MULTI-POWER HV
300 90 69
LED POWER SUPPLY MULTI-POWER HV DIM9
300 90 125
LED POWER SUPPLY MULTI-POWER MINI DIM5
21012 004W
LED POWER SUPPLY MULTI-POWER WDL
Ceiling compatibility
Plasterboard
Stucanet
Wood
Concrete
Concrete + plaster
Lintel + plaster
Hollow-core slab
Hollow-core slab + plaster
Stretched ceiling
Discover more about the PION family
The queen, not the pawn The shape of Pion resembles a lot the one of a pawn in a game of chess, but that is also the only resemblance. Opposite to a pawn, Pion is able to move around freely thanks to its unique Ex-centric Rotation System (ERS). Starting as a fi x downlight, Pion can easily be turned into a periscope overlooking the room, simply by rotating its head. The Ex-centric Rotation System then enables Pion to tilt its head, allowing it to spy around over 355° and tilt up to 90°, so aiming possibilities are unlimited. Its elegant design in combination with the frisky colour combinations transform Pion immediately into the queen of the room, overlooking the scenery. Like any jewel, the colourful tubes serve as an accessory to top off its feminine shape in style. Balanced in form and function Pion is available as semi-recessed version, as surface mounted spotlight or as a plug-in module for our Magnetic profile range. As a recessed variant, the Ex-centric Rotation System is semi-recessed into the ceiling, hiding away the more technical part of the luminaire. As a ceiling mounted solution - with up to 3 modules per luminaire - Pion is not only about the looks, it is a textbook example of form meets function. In this way, the triple surface mounted version of Pion completes 4 functions. 3 of them are lighting up the room in 3 different ways from only 1 feeding point, the 4th is doing it without compromising on style. The clean lines of the driverbox perfectly complement the organic shape of the luminaire’s body.
