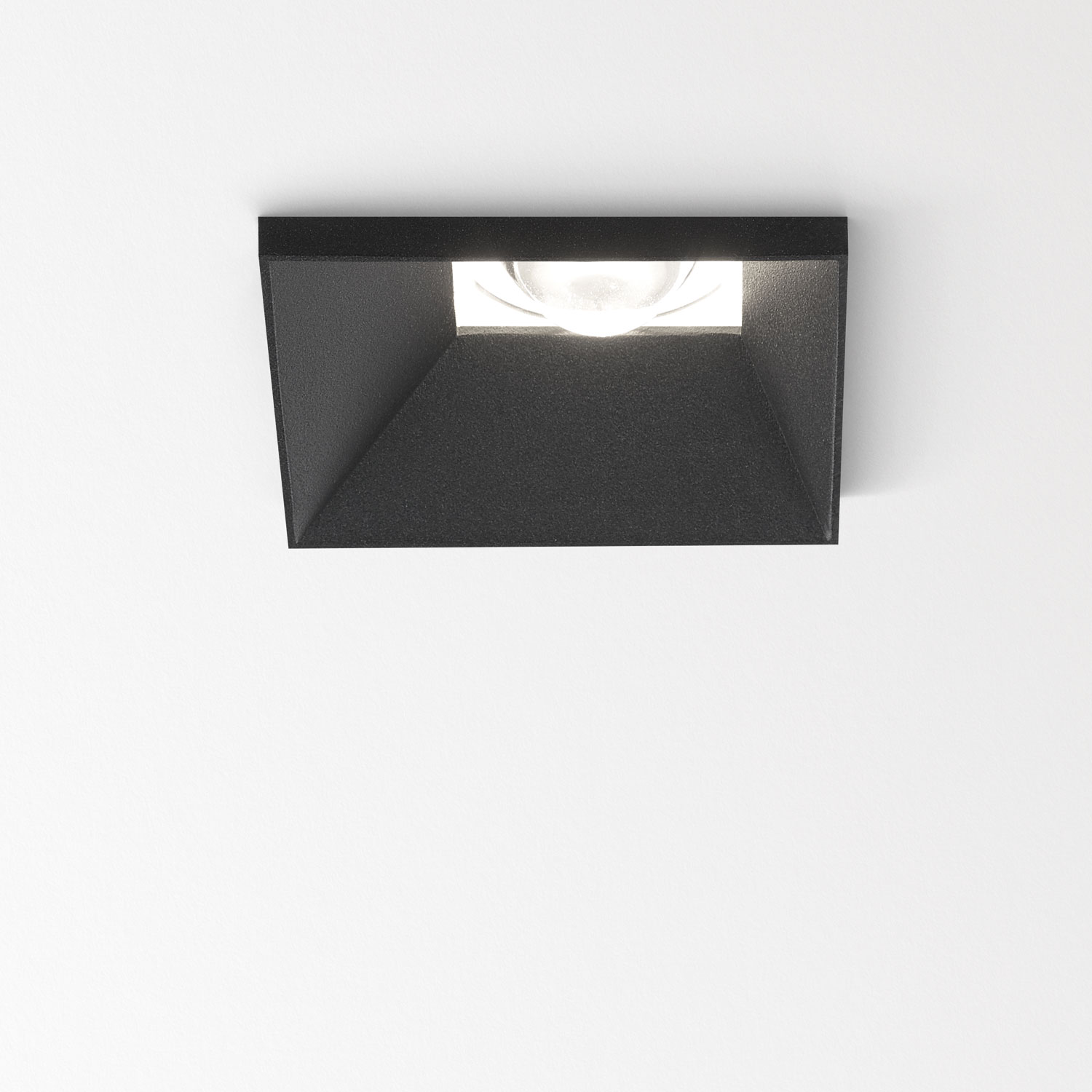

REO 93033 S2
Available colors
-
BLACK
202 262 811 932 B -
WHITE
202 262 811 932 W
Characteristics
| Location | INTERIOR |
|---|---|
| Fixation | Ceiling Recessed |
| Cutout shape/size |  76 mm |
| Recessed depth | 55 mm |
| Thickness of mounting surface | n.a. |
| Information |
NON ADJUSTABLE 1 x LED 7,1-10,4W / CRI>90 / 3000K / 812-1128lm REFLECTOR FL-33° EXCL.LED POWER SUPPLY 350-500mA-DC Other CRI or KELVIN on request |
| CRI | CRI 90 |
| Colour temp | Warm White (+3000K) |
| LED Technics (light source) | 1128 lm // 10 W // 109 lm/W |
| LED Technics (luminaire) | 918 lm // 12 W // 77 lm/W |
| Electrical | |
| Class | Class III |
| Nett weight | 0.2 Kg |
| IP | IP43/20-20/20 |
| Minimum distance | n.a. |
| Remarks | n.a. |
| Energy Class | E |
| Requirements |
LED POWER SUPPLY 350 / 500mA-DC DIM |
Description icons:
-
The CE marking on many products shows that the products is compliant with the European regulations.
-
A Class III appliance is designed to be supplied from a separated/safety extra-low voltage (SELV) power source. The voltage from a SELV supply is low enough that under normal conditions a person can safely come into contact with it.
-
Ceiling recessed
Finish your specification
Requirements
300 48 350 ED1
LED POWER CONVERTER 48V-DC to 350 mA-DC / 15W DIM1
300 48 350 ED5
LED POWER CONVERTER 48V-DC to 350 mA-DC / 15W DIM5
300 48 350 MDL
LED POWER CONVERTER 48V-DC to 350 mA-DC / 15W MDL
300 48 350 WDL
LED POWER CONVERTER 48V-DC to 350 mA-DC / 15W WDL
300 48 500 ED1
LED POWER CONVERTER 48V-DC to 500 mA-DC / 22W DIM1
300 48 500 ED5
LED POWER CONVERTER 48V-DC to 500 mA-DC / 22W DIM5
300 48 500 MDL
LED POWER CONVERTER 48V-DC to 500 mA-DC / 22W MDL
300 48 500 WDL
LED POWER CONVERTER 48V-DC to 500 mA-DC / 22W WDL
21012 005W
LED POWER SUPPLY MULTI-POWER COMPACT WDL
300 90 68
LED POWER SUPPLY MULTI-POWER DIM5
300 90 61
LED POWER SUPPLY MULTI-POWER DIM6
300 90 124
LED POWER SUPPLY MULTI-POWER DIM7
300 90 64
LED POWER SUPPLY MULTI-POWER DIM7
300 90 63
LED POWER SUPPLY MULTI-POWER DIM9
300 90 135
LED POWER SUPPLY MULTI-POWER HV
300 90 69
LED POWER SUPPLY MULTI-POWER HV DIM9
300 90 125
LED POWER SUPPLY MULTI-POWER MINI DIM5
21012 004W
LED POWER SUPPLY MULTI-POWER WDL
Ceiling compatibility
Plasterboard
Stucanet
Wood
Concrete
Concrete + plaster
Lintel + plaster
Hollow-core slab
Hollow-core slab + plaster
Stretched ceiling
Discover more about the REO family
The REO collection is more than one product, it is a family which offers a solution for many lighting demands, from residential to hotel, restaurant to retail and much more. In line with this philosophy, Reo comes in single and double fixtures, round or square, orientable or fixed, in multiple finishing colours, for both indoor and outdoor use. The design of these recessed conical spots delivers a hardly visible transition from the intense light to the ceiling, resulting in a halo-like effect, ideal to give the space an extra dimension.
