SCHUMAN EUROPOLE SNCF (FR)
Discover more

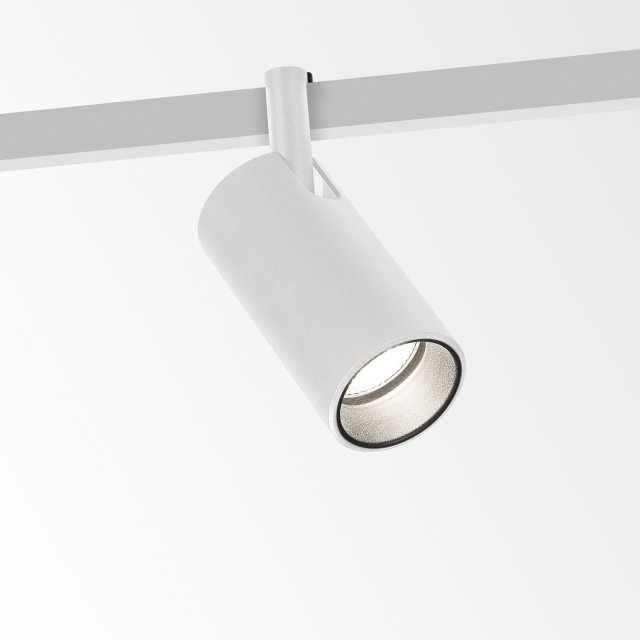

SOLI - 66 93018 DIM5
Available colors
-
BLACK
27123 9315 B -
WHITE
27123 9315 W
Characteristics
| Location | INTERIOR |
|---|---|
| Recessed depth | n.a. |
| Thickness of mounting surface | n.a. |
| Information |
ADJUSTABLE 0-90°/360° 1 x LED 21W / CRI>90 / 3000K / 2463lm REFLECTOR SP-18° EXCL.LED POWER SUPPLY 48V-DC DIMMING BY DALI Optional REFLECTORS 30° & 45° available Other CRI or KELVIN on request |
| CRI | CRI 90 |
| Colour temp | Warm White (+3000K) |
| LED Technics (light source) | 2463 lm // 21 W // 117 lm/W |
| LED Technics (luminaire) | 1759 lm // 24 W // 73 lm/W |
| Electrical | 48V-DC |
| Class | Class III |
| Nett weight | 0.5 Kg |
| IP | IP20 |
| Minimum distance | n.a. |
| Remarks | n.a. |
| Energy Class | E |
| Accessories |
HONEYCOMB 57 SPREAD LENS 57 LINEAR SPREAD LENS 57 SOFTENING LENS 57 GLASS SBL 57 |
| Requirements |
SPY 66 TUBE LED POWER SUPPLY 48V-DC |
Description icons:
-
The CE marking on many products shows that the products is compliant with the European regulations.
-
A Class III appliance is designed to be supplied from a separated/safety extra-low voltage (SELV) power source. The voltage from a SELV supply is low enough that under normal conditions a person can safely come into contact with it.
Finish your specification
Options
24611 0230
SPY 66 REFLECTOR 30°
24611 0240
SPY 66 REFLECTOR 45°
Accessories
24611 0160
GLASS SBL 57
24611 0210
HONEYCOMB 57 DOUBLE USE
24611 0150
HONEYCOMB 57 SINGLE USE
24611 0170
LINEAR SPREAD LENS 57
24611 0190
SOFTENING LENS 57
24611 0200
SPREAD LENS 57
Requirements
21012 0230
LED POWER SUPPLY 48V-DC / 100W
300 89 48 100
LED POWER SUPPLY 48V-DC / 100W DIN
21012 0240
LED POWER SUPPLY 48V-DC / 200W
300 89 48 240
LED POWER SUPPLY 48V-DC / 240W DIN
24611 0100
SPY 66 TUBE
Discover more about the SOLISCAPE family
Soliscape is an extremely versatile and flexible system, specifically designed to create human-centric environments.
Developed together with Ben van Berkel / UNStudio, Soliscape combines lighting, acoustics and IoT into an aesthetically appealing solution.
Soliscape presents a toolbox with flexible components to architects and designers, to create unique constellations in human-centric environments. The modules that make up Soliscape combine lighting, acoustics and connected sensors into an aesthetically appealing solution that can easily connect to any building management system.
Find out more about Soliscape >
Download The Lighting Bible 14.
View beautiful magazines online.
Contact us for additional information.
