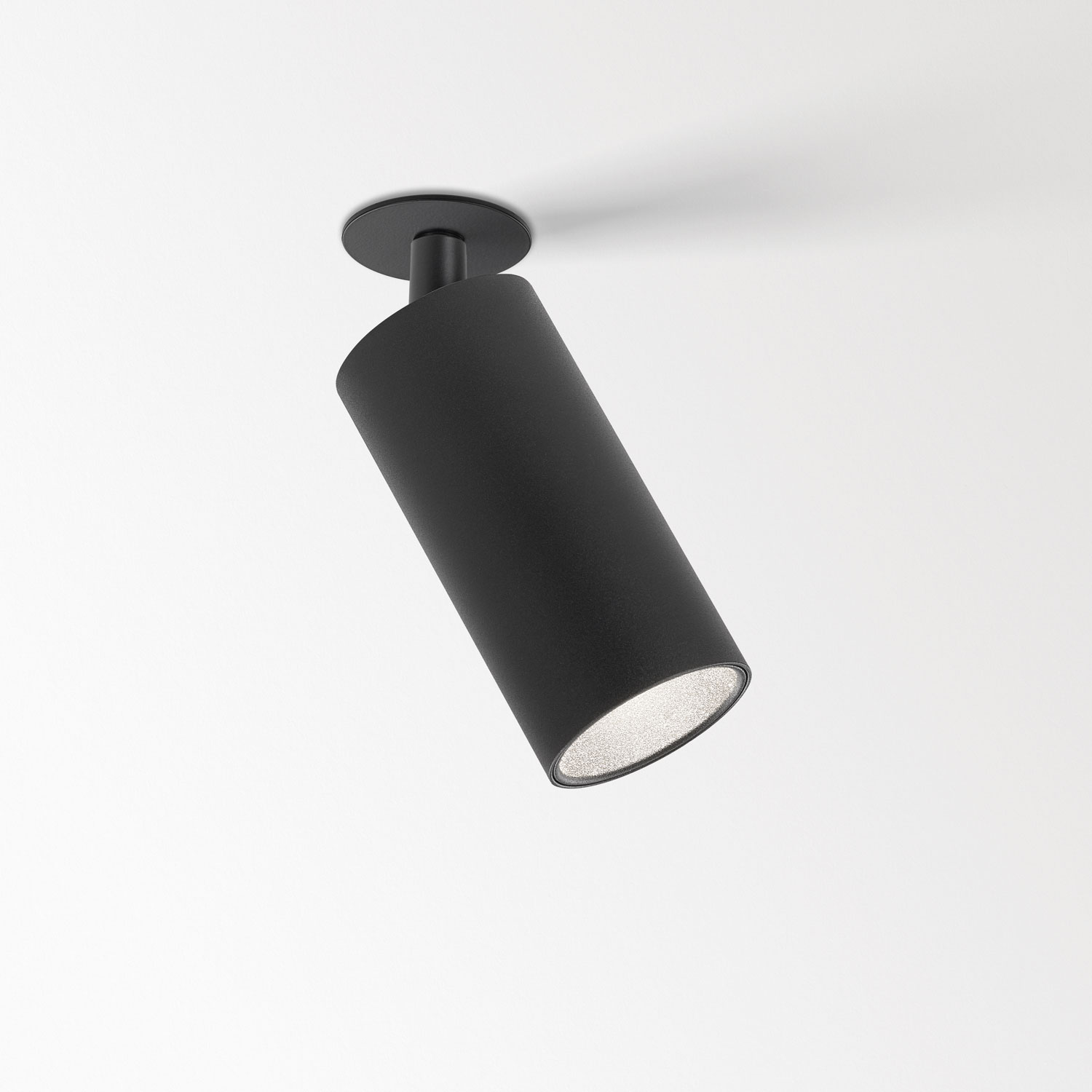

SPY 66 CLIP TW 96518
Available colors
-
BLACK-BLACK
24622 9010 B-B -
WHITE-WHITE
24622 9010 W-W
Characteristics
| Location | INTERIOR |
|---|---|
| Fixation | Ceiling Surface mounted |
| Cutout shape/size |  50 mm |
| Recessed depth | 40 mm |
| Thickness of mounting surface | n.a. |
| Information |
ADJUSTABLE 0-90°/355° 1 x LED 9W / CRI>90 / 2700-6500K / 1087lm REFLECTOR SP-18° EXCL.LED POWER SUPPLY 500mA-DC Optional REFLECTORS 30° & 45° available |
| CRI | CRI 90 |
| Colour temp | TUNABLE WHITE (2700K - 6500K) |
| LED Technics (light source) | 1087 lm // 9 W // 121 lm/W |
| LED Technics (luminaire) | 776 lm // 10 W // 75 lm/W |
| Electrical | |
| Class | Class III |
| Nett weight | 0.6 Kg |
| IP | IP20 |
| Minimum distance | n.a. |
| Remarks | n.a. |
| Energy Class | E |
| Options |
MOUNTING KIT FLUSH SPY |
| Accessories |
HONEYCOMB 57 SPREAD LENS 57 LINEAR SPREAD LENS 57 SOFTENING LENS 57 GLASS SBL 57 |
| Requirements |
SPY 66 TUBE LED POWER SUPPLY 500mA-DC TW |
Description icons:
-
The CE marking on many products shows that the products is compliant with the European regulations.
-
A Class III appliance is designed to be supplied from a separated/safety extra-low voltage (SELV) power source. The voltage from a SELV supply is low enough that under normal conditions a person can safely come into contact with it.
-
Ceiling surface mounted
Finish your specification
Options
Accessories
24611 0160
GLASS SBL 57
24611 0210
HONEYCOMB 57 DOUBLE USE
24611 0150

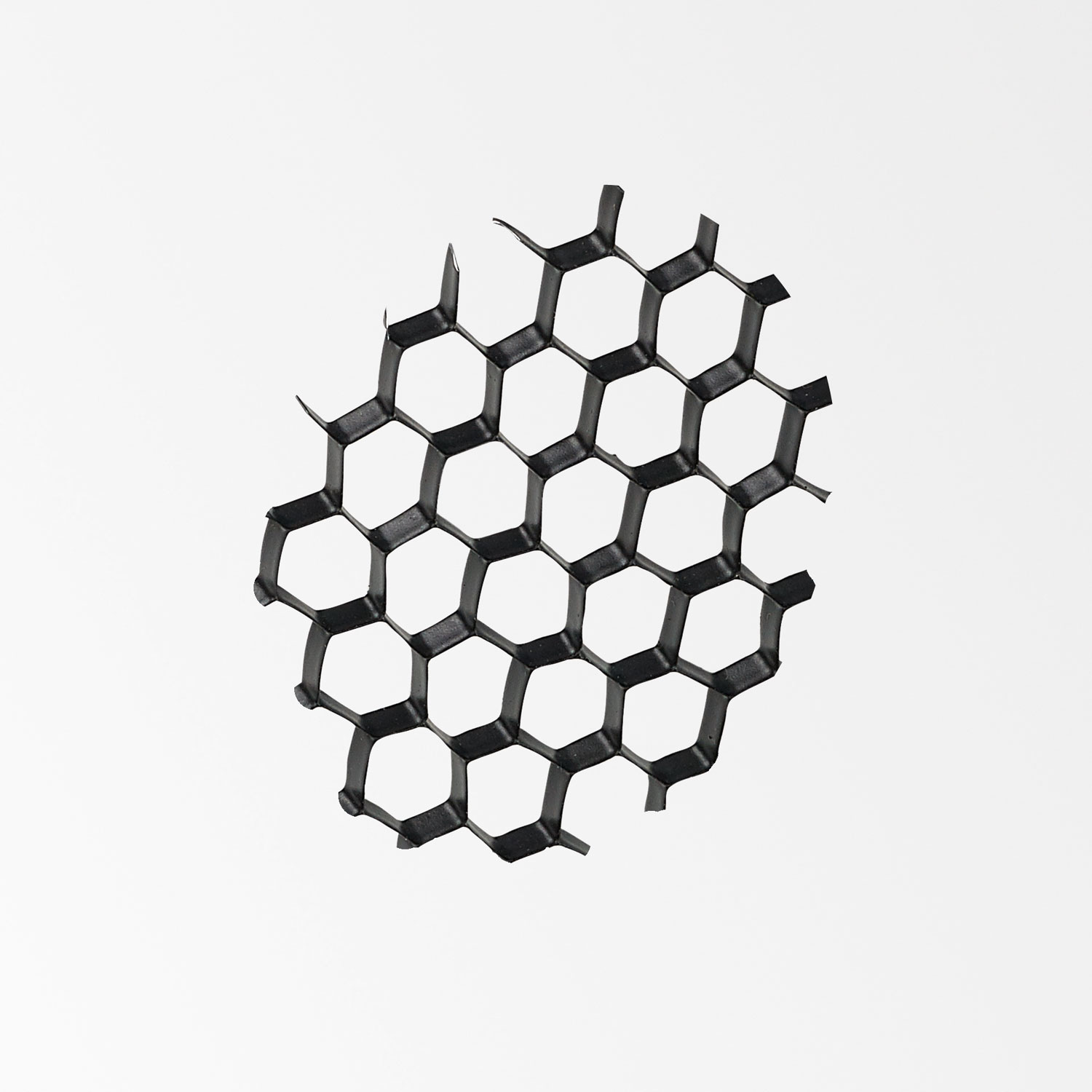

HONEYCOMB 57 SINGLE USE
24611 0170
LINEAR SPREAD LENS 57
24611 0190
SOFTENING LENS 57
24611 0200
SPREAD LENS 57
Requirements
21012 0355
LED POWER SUPPLY 500mA-DC 2CH TW DIM5
24611 0100
SPY 66 TUBE
Ceiling compatibility
Wood
Concrete
Hollow-core slab
Stretched ceiling
Discover more about the SPY family
Minimalism, functionality and versatility are the key terms to describe this extensive collection. The Spy was designed to meet multiple lighting requirements, an ideal solution for accent lighting in residential, hospitality or commercial spaces. The range features low to high lumen packages, narrow to wide beam options, standard or specific LED colours, recessed to surface mounted and track applications, different colour finishes and combinations, and can be equipped with multiple light refining accessories. Following the constant changes in the world of LEDs and optics and the evolution to better user comfort with more precise optics and better light control, the complete Spy range has been upgraded. The result? Fresh shapes and additional finishing colours, better light comfort through hybrid optics, improved LED colour consistency and new perspectives with Tunable White and Soft Dim. The renewed Spy family comes in diameters of 27, 39, 52, 66 and 90 millimeters, a range of spotlights to fit any purpose. While the smaller versions come in the lively colours Flemish Bronze, Flemish Gold and Gold Coloured, the bigger Spy’s offer Tunable White and Soft Dim solutions in multiple beam angles. PATENTED EX-CENTRIC ROTATION SYSTEM Spy brochure
