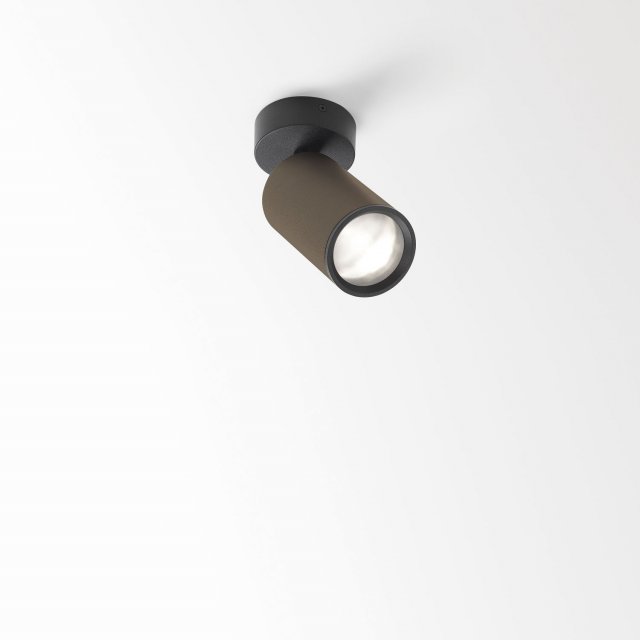

SPY FOCUS ON 930 FBR
SPY SURFACE MOUNTED WITH ADJUSTABLE BEAM
Flemish Bronze - 414 365 811 93 FBR
CRI
Beam angle
CCT
General
| Location | Indoor |
| CCT | 3000K |
| Fixation | Ceiling |
| Installation | Surface mounted |
| IP | IP20 |
| Weight (kg) | 0.5 |
| Adjustability | 0° to 90° swiveling, 355° rotatable |
| Information | INCL.1 x ADJUSTABLE BEAM 11°-44°
EXCL.LED POWER SUPPLY 350-500mA-DC |
Electrical
| Class | III |
| Dimming type | non-dimmable |
| Certificates | CB, EAC, ENEC |
Lightsource
| Light source | LED |
| LED information | LED array 7,1-10,4W / CRI>90 (R9: 52) / 3000K / 812-1128lm |
| TM-30 Values | rf: 90 / Rg: 99 |
| SDCM | SDCM2 |
| Riskgroup | RG1 |
| LM80 | L90B10 > 50000 |
| LED technics (light source) | 1128lm // 10,4W // 109lm/W |
| LED technics (luminaire) | 429lm // 12W // 36lm/W |
Additional
| Options | LED POWER SUPPLY 350 / 500mA-DC DIM
COVERSET R 90-100 |
Technical data was measured in optimum conditions.
Downloads
Following downloads are available:
Finish your specifications
Use the information listed below to complete your product
requirement
LED power supplies
| Product name | Voltage | Class | Dimming type | IP | Cutout shape | Cutout size | max. devices / supply | ||
|---|---|---|---|---|---|---|---|---|---|
 | LED POWER CONVERTER 48V-DC to 350 mA-DC / 15W DIM5 | - | III | DALI | IP20 | round | 30 | 1 | Add to pinlist |
| | LED POWER CONVERTER 48V-DC to 500 mA-DC / 22W DIM5 | - | III | DALI | IP20 | round | 30 | 1 | Add to pinlist |
 | LED POWER SUPPLY 350mA-DC / 10W DIM8 | 220-240V | II | mains (phase cut-off) | IP20 | round | 42 | 1 | Add to pinlist |
 | LED POWER SUPPLY 350mA-DC / 18W DIM8 | 220-240V | II | mains (phase cut-off) | IP20 | round | 55 | 2->2 | Add to pinlist |
 | LED POWER SUPPLY MULTI-POWER DIM7 | 110-240V | II | 1-10V or push button | IP20 | round | 55 | 2(2) | 1(1) | - | Add to pinlist |
 | LED POWER SUPPLY MULTI-POWER MINI DIM5 | 110-240V | II | DALI | IP20 | round | 55 | 1(1) | 1(1) | - | Add to pinlist |
 | LED POWER SUPPLY MULTI-POWER DIM9 | 110-240V | II | 1-10V or DALI or push button | IP20 | round | 82 | 3(3) | 3(3) | - | Add to pinlist |
 | LED POWER SUPPLY MULTI-POWER DIM5 | 110-240V | II | DALI | IP20 | round | 72 | 2(1) | 2(1) | - | Add to pinlist |
 | LED POWER SUPPLY MULTI-POWER HV DIM9 | 110-240V | II | 1-10V or DALI or push button | IP20 | round | 84 | 5(5) | 4(3) | - | Add to pinlist |
 | LED POWER SUPPLY 350mA-DC / 15W | 100-240V | II | non-dimmable | IP20 | round | 40 | 2(1) | Add to pinlist |
