ALU ANODIZED
389 011 483 E ANOWHITE
389 011 483 E WLocation | INTERIOR |
---|---|
Fixation | Ceiling Suspended / Ceiling Surface mounted |
Recessed depth | n.a. |
Thickness of mounting surface | n.a. |
Information |
INCL.SRL PC SBL LED CLUSTER 48W / CRI>90 / 3000K / 8120lm |
CRI | CRI 90 |
Colour temp | Warm White (+3000K) |
LED Technics (light source) | 8120 lm // 48 W // 166 lm/W |
LED Technics (luminaire) | 6315 lm // 56 W // 113 lm/W |
Electrical | 220-240V / 50-60Hz |
Class | Class I |
Nett weight | 6.8 Kg |
IP | IP20 |
Minimum distance | n.a. |
Remarks | n.a. |
Energy Class | C |
Options |
SUSPENSION SET 22 1.6m CABLE BASE R / S COVERSET R 62-90-100 / S 62-80-90 |
204 00 100
COVERSET R 100
204 00 62
COVERSET R 62
204 00 90
COVERSET R 90
204 62 62
COVERSET S 62
204 80 80
COVERSET S 80
204 90 90
COVERSET S 90
203 99 55
CABLE BASE R
203 99 56
CABLE BASE S
328 22 22
SUSPENSION SET 22 1,6m
15225 0360
CONNECTION ST

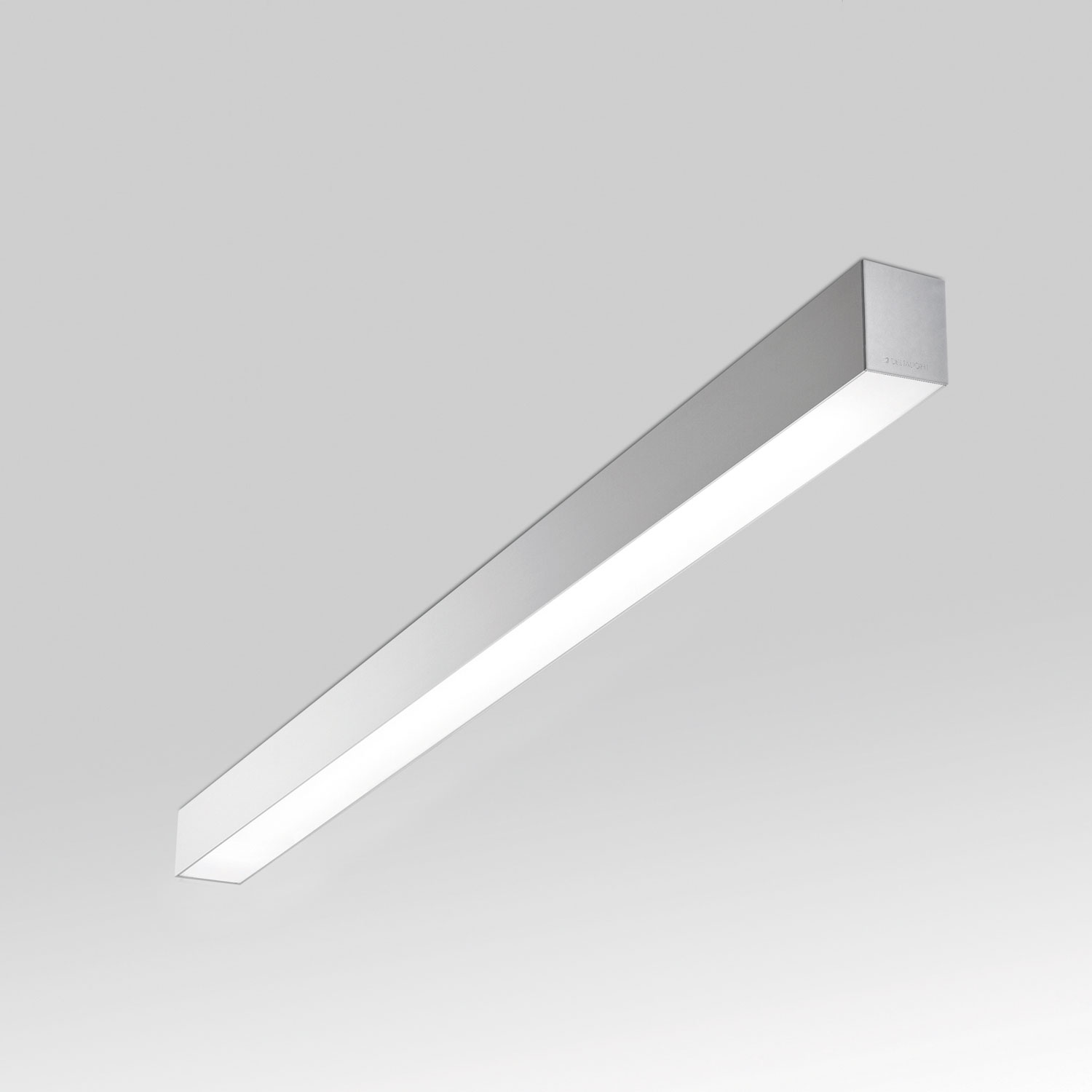

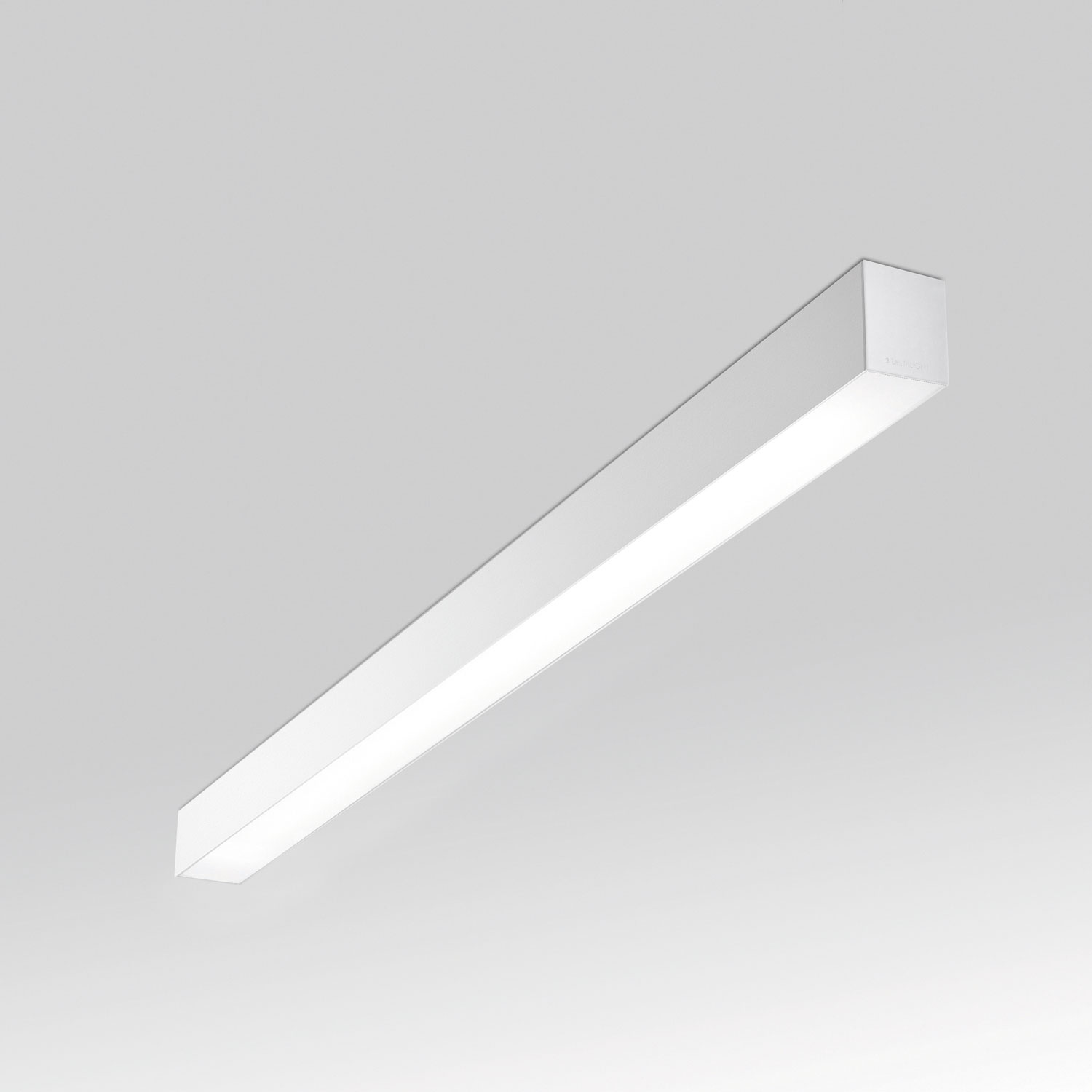

Streamliner is a very versatile profile family with a focus on LED. This made-to-measure profile can be finished with an opal or a prismatic cover and the LED array has two lumen outputs per length to chose from. As a plus, the LED arrays can also be provided with an emergency unit. Streamliner can be recessed mounted, with (Streamliner 85) or without trim (Streamliner TR), surface or pendant mounted. As a pendant version, the profile can be used with only direct light or there is also the opportunity to have it direct-indirect. To give the profile even more flexibility, also integrated downlighters and additional spots are available.
