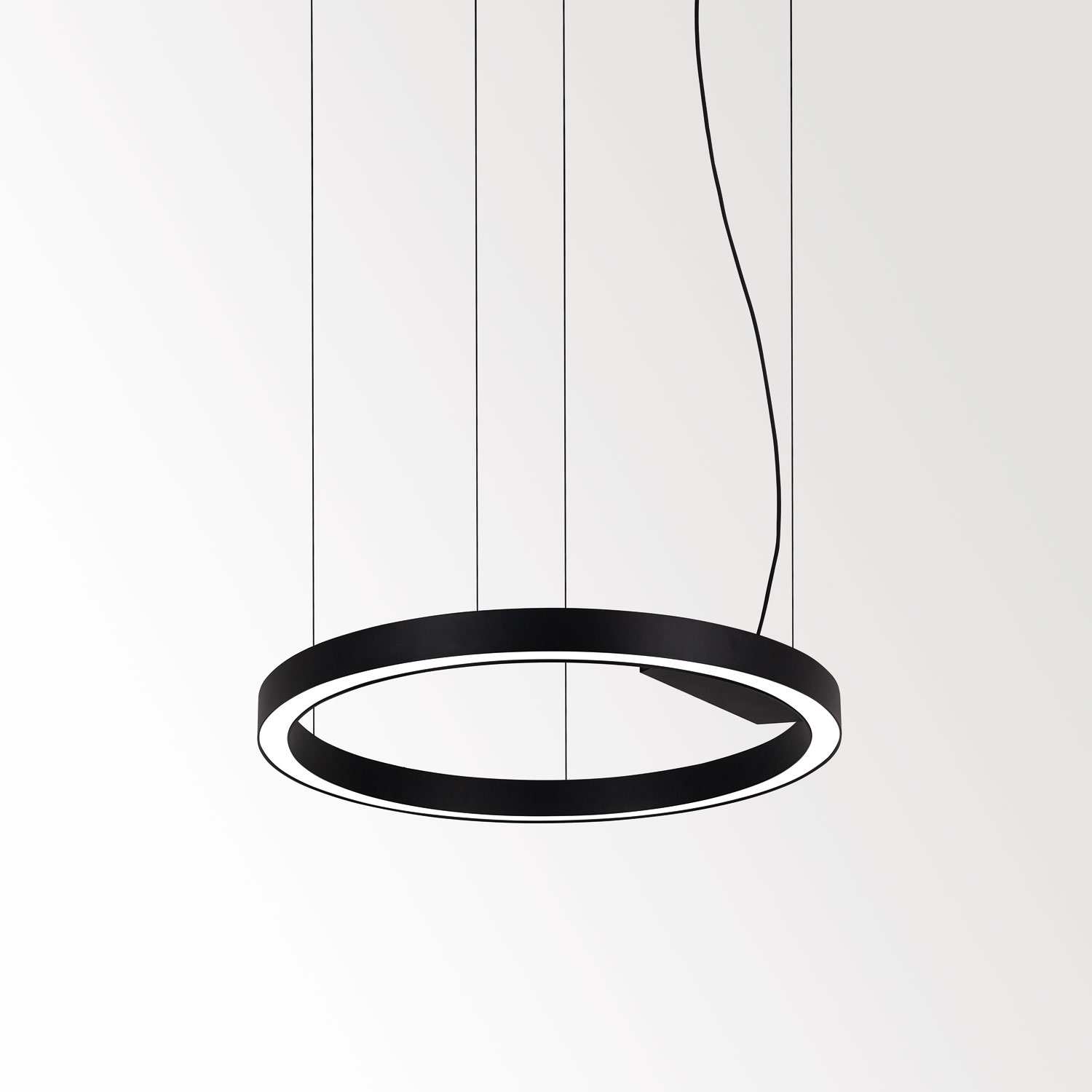

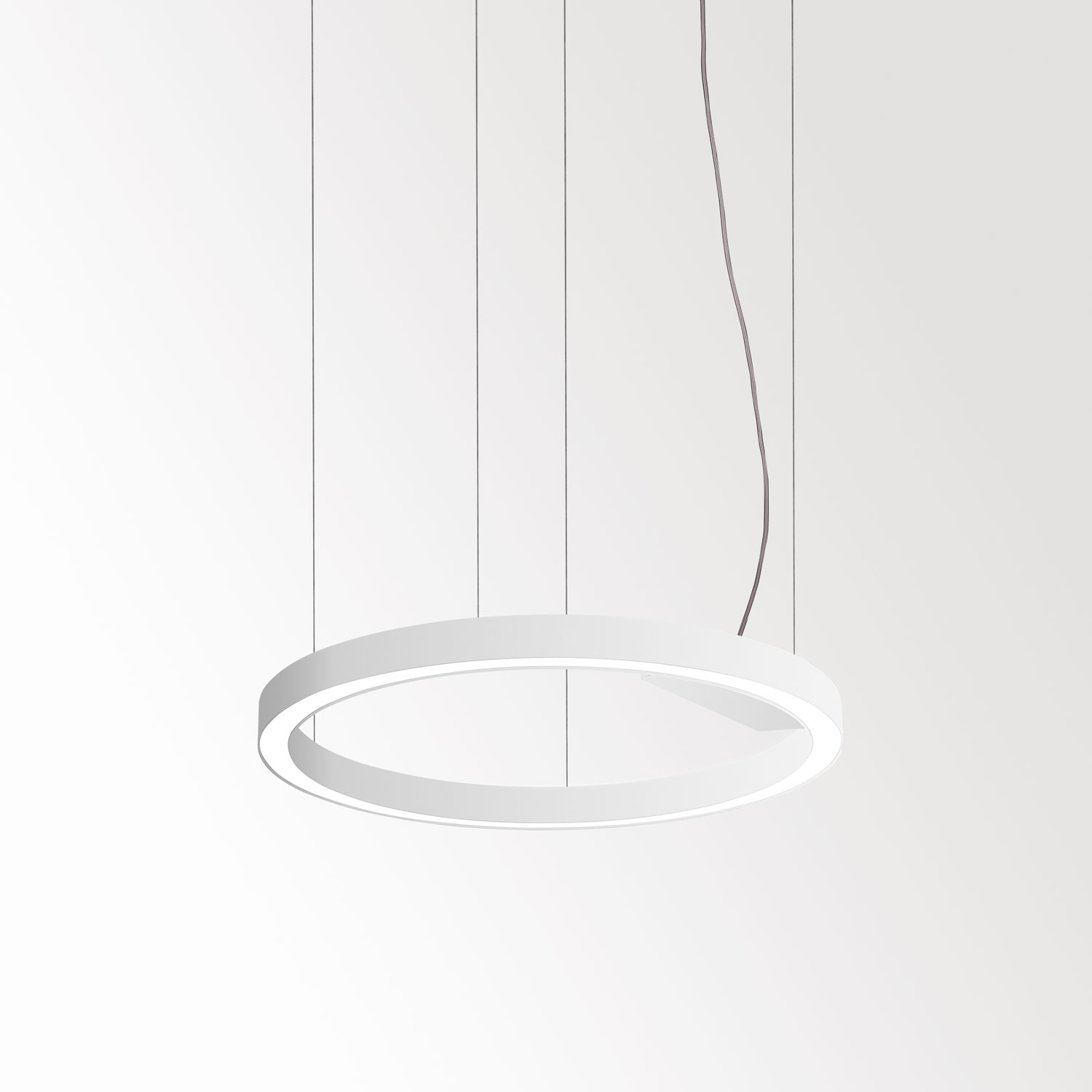

SUPER-OH! SLIM 80 C SBL DOWN-UP 930 DIM4

Available colors

  • BLACK

    20739 9304 B
    Pin this
  • WHITE

    20739 9304 W
    Pin this

Characteristics

Location INTERIOR
Fixation Ceiling Suspended
Recessed depth n.a.
Thickness of mounting surface n.a.
Information INCL.PC SBL
LED CLUSTERS DOWN 30,6W / CRI>90 / 3000K / 4951lm
INCL.DIMMABLE LED POWER SUPPLY 900mA
LED CLUSTERS UP 23,8W / CRI>90 / 3000K / 3851lm
INCL.DIMMABLE LED POWER SUPPLY 700mA
dimmable by DALI or DSI
INCL.4 x CABLE SUSPENSION SINGLE AUTO. 3m
INCL.1 x CABLE 5 x 0.75mm²
CABLING 2 CIRCUITS
CRI CRI 90
Colour temp Warm White (+3000K)
LED Technics (light source) 8802 lm // 54 W // 162 lm/W
LED Technics (luminaire) 6117 lm // 63 W // 98 lm/W
Electrical 220-240V / 0|50-60Hz
Class Class I
Nett weight 4.3 Kg
IP IP20
Minimum distance n.a.
Remarks n.a.
Energy Class C
Options CABLE BASE R / S
COVERSET R 62-90-100 / S 62-80-90
CONNECTION ST / CONNECTION TRIMLESS
SUSPENSION ST / SUSPENSION TRIMLESS
Click on the icons below for more details
  • European Certificate
  • I
  • Plafond

Finish your specification

Options

204 00 100
COVERSET R 100

204 00 62
COVERSET R 62

204 00 90
COVERSET R 90

204 62 62
COVERSET S 62

204 80 80
COVERSET S 80

204 90 90
COVERSET S 90

203 99 55
CABLE BASE R

203 99 56
CABLE BASE S

15225 0340
SUSPENSION ST

15225 0360
CONNECTION ST

Add to MY DELTALIGHT

Discover more about the SUPER-OH family

The initial Super-Oh range was launched at Euroluce 2015. A series of slim black rings floating through space, finished either with integrated powerleds or the more retro-look version with classic light bulbs. Now Delta Light builds on the success of the launch, expanding the range feature multiple sizes and applications. With its 25cm or 39cm diameter, the Super-Oh XS (Extra Small) can be considered to be “little one” of the family. With only 5cm height, this perfectly curved circle holds a polycarbonate, hiding an intense clustered inner circle of the latest powerleds. This circle of leds is specially designed to guarantee a uniform and perfectly balanced light output, resulting in a very enjoyable diffuse lighting effect. The Super-Oh XS is available either for direct mounting, as a suspension or with a pivot, a flexible ceiling bracket enabling the user to tilt the disc up to 45°, and rotate 360°. The large sized Super-Oh range now also features a brand-new SBL version, a circular aluminium profile with integrated polycarbonate, offering a perfectly seamless ring of light. This SBL version comes in different diameters, either down or down-up light, with either multiple fixation points or a central suspension. To keep a consistent design code throughout your project you can now also integrate a trimless Super-Oh. The result is a fully recessed, slim aureole. A symbol of infinity, without beginning or end, perfect, the ultimate geometric symbol seamlessly integrated into architecture. The Super-Oh can also be combined with Delta Light’s brand new Wireless Control Dimming module, allowing you to manage your Super-Oh from your mobile device. Super-Oh brochure
