SUPERDOME 9528 RECESSED DIM1
Available colors
-
WHITE-WHITE
321 96 9528 ED1 W-W -
BLACK-WHITE
321 96 9528 ED1 B-W
Characteristics
| Location | INTERIOR |
|---|---|
| Fixation | Ceiling Recessed |
| Cutout shape/size |  KIT mm |
| Recessed depth | 350 mm |
| Thickness of mounting surface | n.a. |
| Information |
INCL.PC SBL FIX ANGLE 10° LED CLUSTERS 105W / CRI>90 / 3000K / 16950lm INCL.2 x LED POWER SUPPLY 350mA DIMMING BY 1-10V CONTROL |
| CRI | CRI 90 |
| Colour temp | Warm White (+3000K) |
| LED Technics (light source) | 16950 lm // 105 W // 161 lm/W |
| LED Technics (luminaire) | 13043 lm // 121 W // 108 lm/W |
| Electrical | 120-240V / 50-60Hz |
| Class | Class I |
| Nett weight | 27 Kg |
| IP | IP20 |
| Minimum distance | n.a. |
| Remarks | n.a. |
| Energy Class | C |
| Requirements |
SUPERDOME RECESSED KIT |
Description icons:
-
The CE marking on many products shows that the products is compliant with the European regulations.
-
A Class I electrical appliance must have its chassis connected to electrical earth (ground) by an earth conductor.
-
Ceiling recessed
Finish your specification
Ceiling compatibility
Discover more about the SUPERDOME family

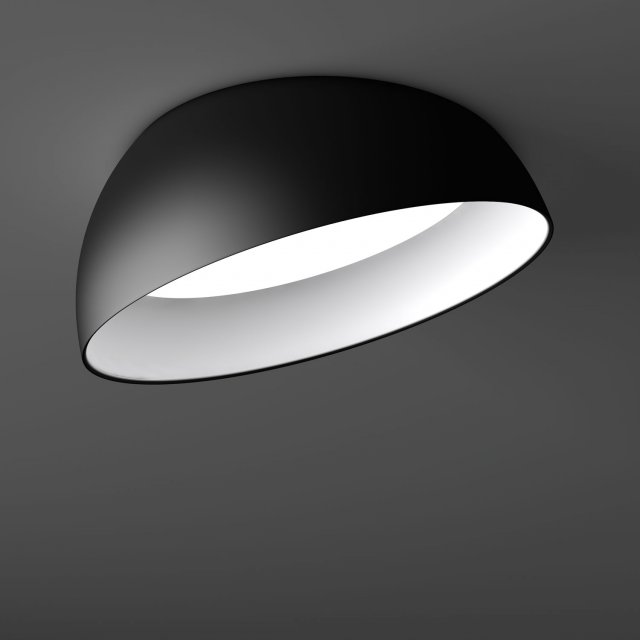

Cosiness is large and round; of that the Superdome is proof. This hanging fitting was initially created as an XXL version of Tweeter, one of the award winners in the collection. The Superdome is perfectly at home in double ceiling heights, or just as an atmospheric dome over the dining table or as an eye-catcher in the hall at home or the office. The body made from polyester is available with a black or white exterior, the interior is white for optimal light diffusion. At first glance the Superdome looks very simple, but it is well thought-out. The light source is concealed behind a large diffuser, recessed into the dome obscuried direct from view and preventing glare. The Superdome is available with dimmable LEDs or as a version with a traditional E27 fitting for a greater choice of lamps.
