BLACK
418 163 822 MDL BLocation | INTERIOR |
---|---|
Fixation | Ceiling Suspended |
Recessed depth | n.a. |
Thickness of mounting surface | n.a. |
Information |
NON ADJUSTABLE 1 x LED DOWN 4,1W / CRI>80 / 2700K / 420lm LENS FL-20° 1 x LED UP 2,1W / CRI>80 / 2700K / 213lm EXCL.FIX 40 GLASS INCL.CLIP 48V ADAPTER EXCL.LED POWER SUPPLY 48V-DC DIMMING BY DALI / 1-10V CONTROL / PUSH BUTTON via 48V modulator Other CRI or KELVIN on request |
CRI | CRI 80 |
Colour temp | Halogen White (+2700K) |
LED Technics (light source) | 643 lm // 6 W // 104 lm/W |
LED Technics (luminaire) | 486 lm // 7 W // 68 lm/W |
Electrical | 48V-DC |
Class | Class III |
Nett weight | 0.2 Kg |
IP | IP20 |
Minimum distance | n.a. |
Remarks | n.a. |
Energy Class | E |
Options |
DIMMABLE MODULATOR |
Requirements |
FIX 40 glass LED POWER SUPPLY 48V-DC |
300 90 011
SMART 48 MODULATOR DIM9
300 90 012
SMART 48 MODULATOR WD
21012 0230
LED POWER SUPPLY 48V-DC / 100W
300 89 48 100
LED POWER SUPPLY 48V-DC / 100W DIN
21012 0240
LED POWER SUPPLY 48V-DC / 200W
300 89 48 240
LED POWER SUPPLY 48V-DC / 240W DIN
418 163 01

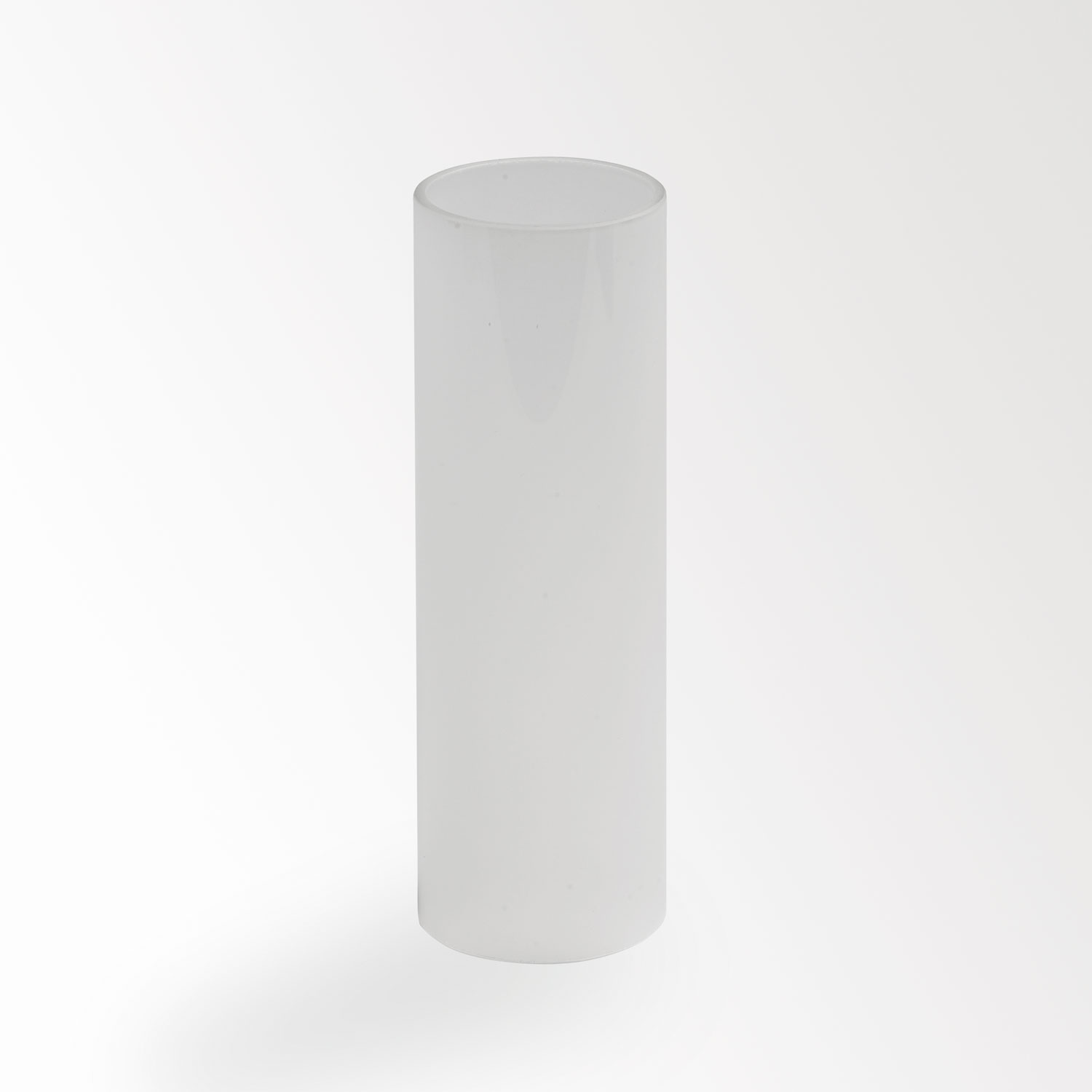

FIX 40 GLASS CLEAR
418 163 02
FIX 40 GLASS FROSTED
418 481 12
SUPERLOOP HC 120 MDL
418 481 17
SUPERLOOP HC 170 MDL
20555 0000
SUPERLOOP HC 200 MDL
20556 0000
SUPERLOOP HC 250 MDL
20557 0000
SUPERLOOP HC 300 MDL
20558 0000
SUPERLOOP HC 350 MDL
20559 0000
SUPERLOOP HC 400 MDL
20560 0000
SUPERLOOP HC 500 MDL
418 481 07
SUPERLOOP HC 70 MDL
418 481 09
SUPERLOOP HC 90 MDL
418 482 106
SUPERLOOP S HC 106 MDL
418 482 109
SUPERLOOP S HC 109 MDL
418 482 211
SUPERLOOP S HC 211 MDL
418 482 217
SUPERLOOP S HC 217 MDL
The Superloop family is an extensive range of slim circular and square shapes, offering a multitude of illumination options. Superloop allows you to choose ‘functional’, by mounting adjustable Spy modules on the round or square shaped base. It allows you to choose ‘decorative’, by mounting the light emitting circle in a horizontal way, or it allows you to choose ‘eye catcher’, by hanging the circle of light vertically, as a statement. Superloop circular light has the ability to diffuse light all around. The loop can be hung using steel cables, based in one fixation point or multiple suspension points, or from a steel rod suspending the ring from the air. Superloop is also available in a round or square shape with a Delta Light custom engineered 48V low voltage track on the inside. This allows you to position and move light modules all around, offering maximum flexibility and allowing you to meet any need of the project. The modules enable you to move from subtle functionality to very expressive or timeless elegance. The Flemish Gold and Flemish Bronze finishes or the Spot modules Vizir and Hedra offer you a way to upgrade the minimal appearance of the loop. By adding the Fix modules with down- or down-up light, combined with a clear or frosted glass, you can transform your Superloop into a modern chandelier. Looking for a more expressive and unique statement? Just plug and play with the ledtubes of the XY180 collection. Superloop brochure
