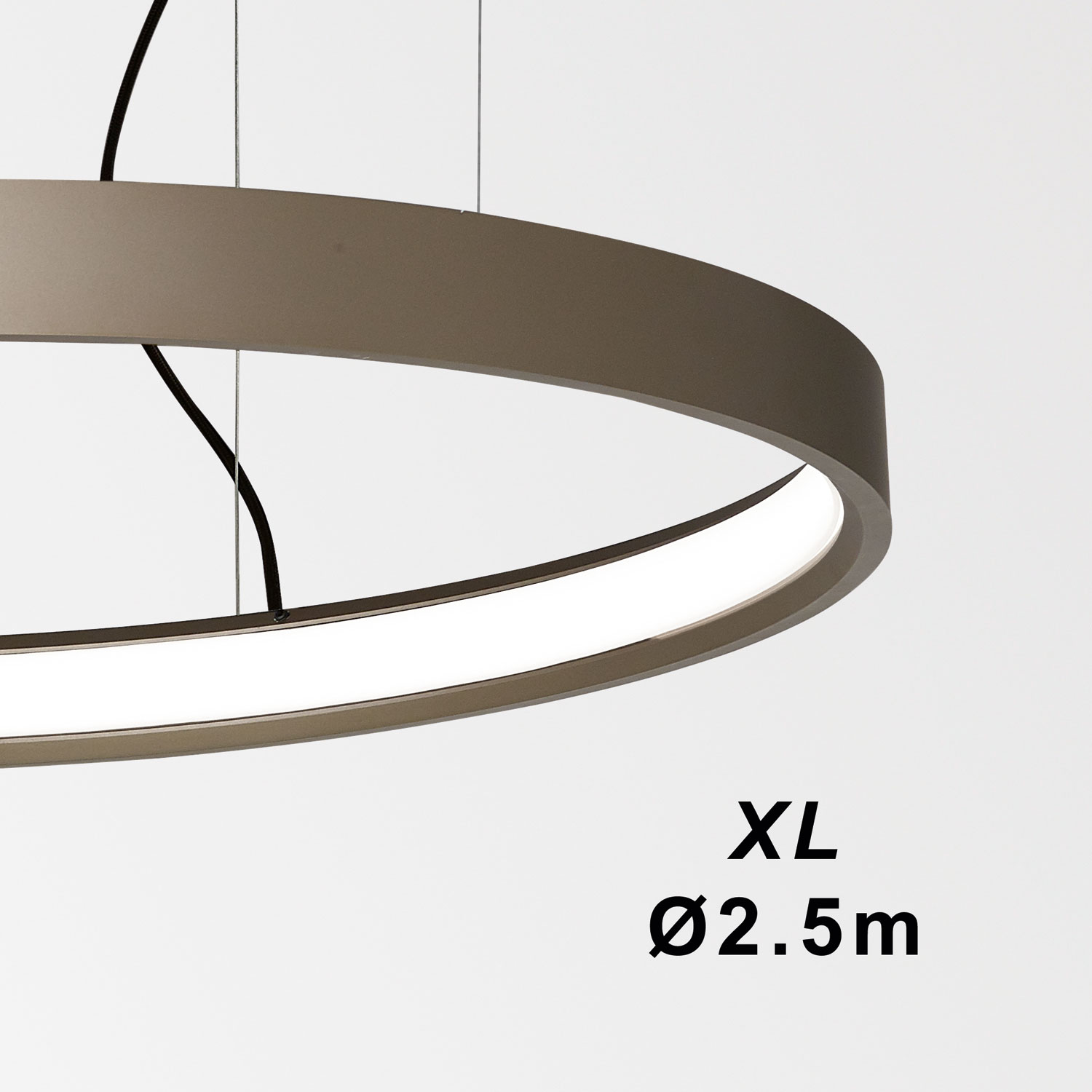

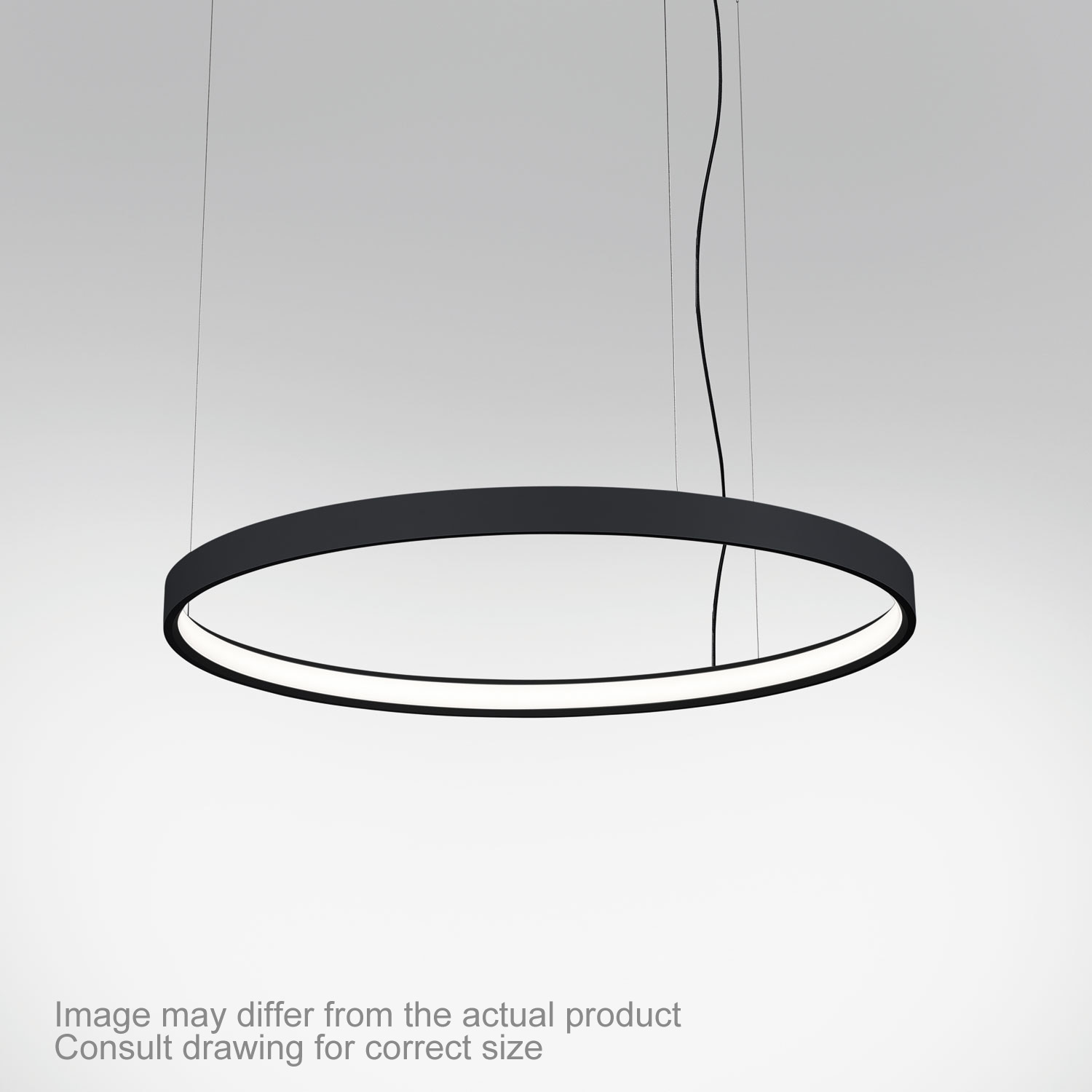

SUPERLOOP HC 250 SBL 930
Available colors
-
BLACK
20550 9300 B -
WHITE
20550 9300 W -
FLEMISH GOLD
20550 9300 FG -
FLEMISH BRONZE
20550 9300 FBR
Characteristics
| Location | INTERIOR |
|---|---|
| Fixation | Ceiling Suspended |
| Recessed depth | n.a. |
| Thickness of mounting surface | n.a. |
| Information |
INCL.PC SBL 3 SEGMENTS 3 x (LED FLEX HP 52W / CRI>90 / 3000K / 6422lm) EXCL.LED POWER SUPPLY 24-DC INCL.6 x CABLE SUSPENSION SINGLE AUTO. 3.0m INCL.3 x CABLE 2 x 0.75mm² |
| CRI | CRI 90 |
| Colour temp | Warm White (+3000K) |
| LED Technics (light source) | 19266 lm // 156 W // 123 lm/W |
| LED Technics (luminaire) | 8670 lm // 179 W // 48 lm/W |
| Electrical | 24V-DC |
| Class | Class III |
| Nett weight | 8.1 Kg |
| IP | IP20 |
| Minimum distance | n.a. |
| Remarks | n.a. |
| Energy Class | F |
| Options |
CABLE BASE R / S COVERSET R 62-90-100 / S 62-80-90 CONNECTION ST / CONNECTION TRIMLESS SUSPENSION ST / SUSPENSION TRIMLESS |
| Requirements |
LED POWER SUPPLY 24V-DC |
Description icons:
-
The CE marking on many products shows that the products is compliant with the European regulations.
-
A Class III appliance is designed to be supplied from a separated/safety extra-low voltage (SELV) power source. The voltage from a SELV supply is low enough that under normal conditions a person can safely come into contact with it.
-
Ceiling suspended
Finish your specification
Options
300 90 010
24V-DC / 2 x 4A WIRELESS DIM UNIT

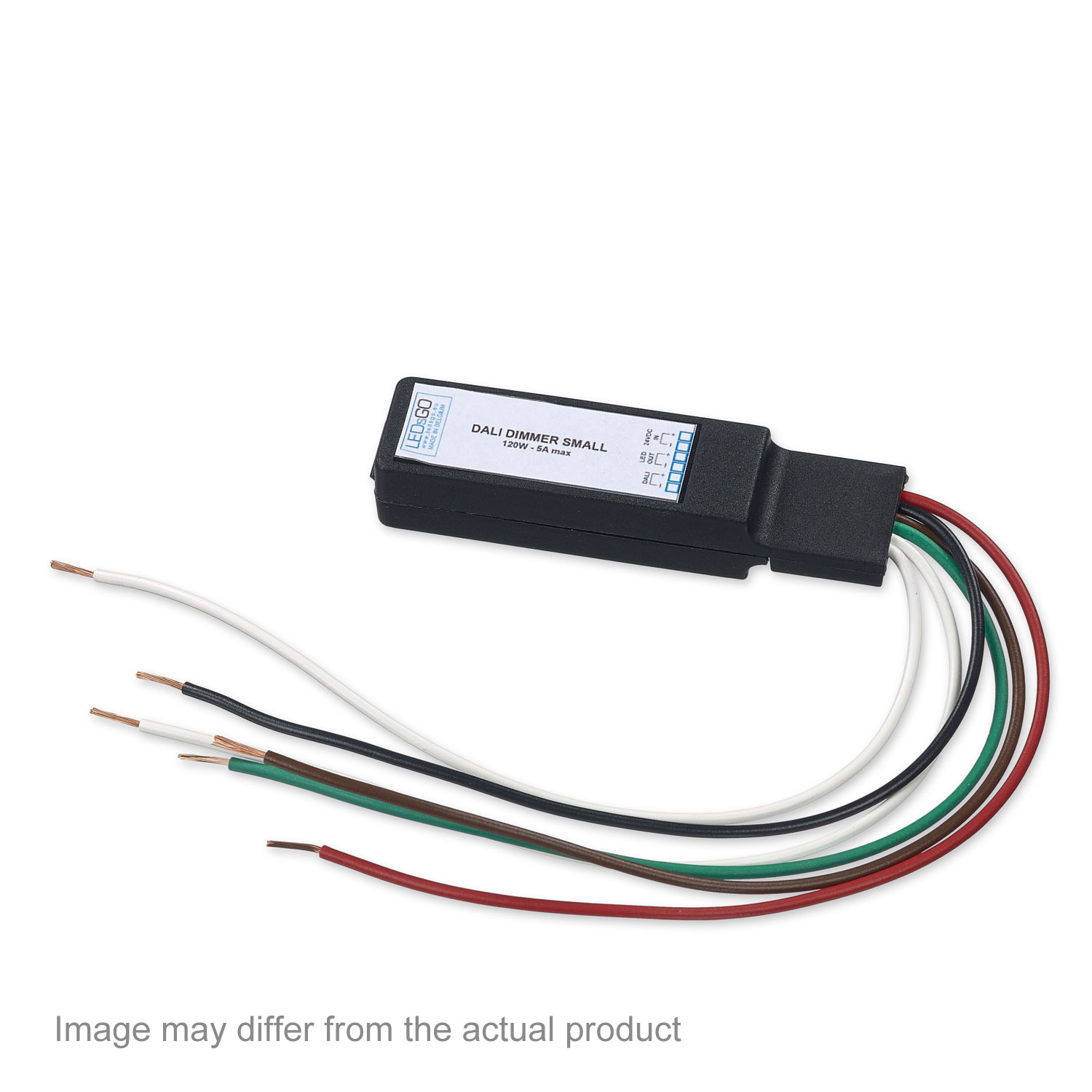

300 90 003 ED1
24V-DC / 4A DIM1 UNIT
300 90 003 ED5
24V-DC / 4A DIM5 UNIT

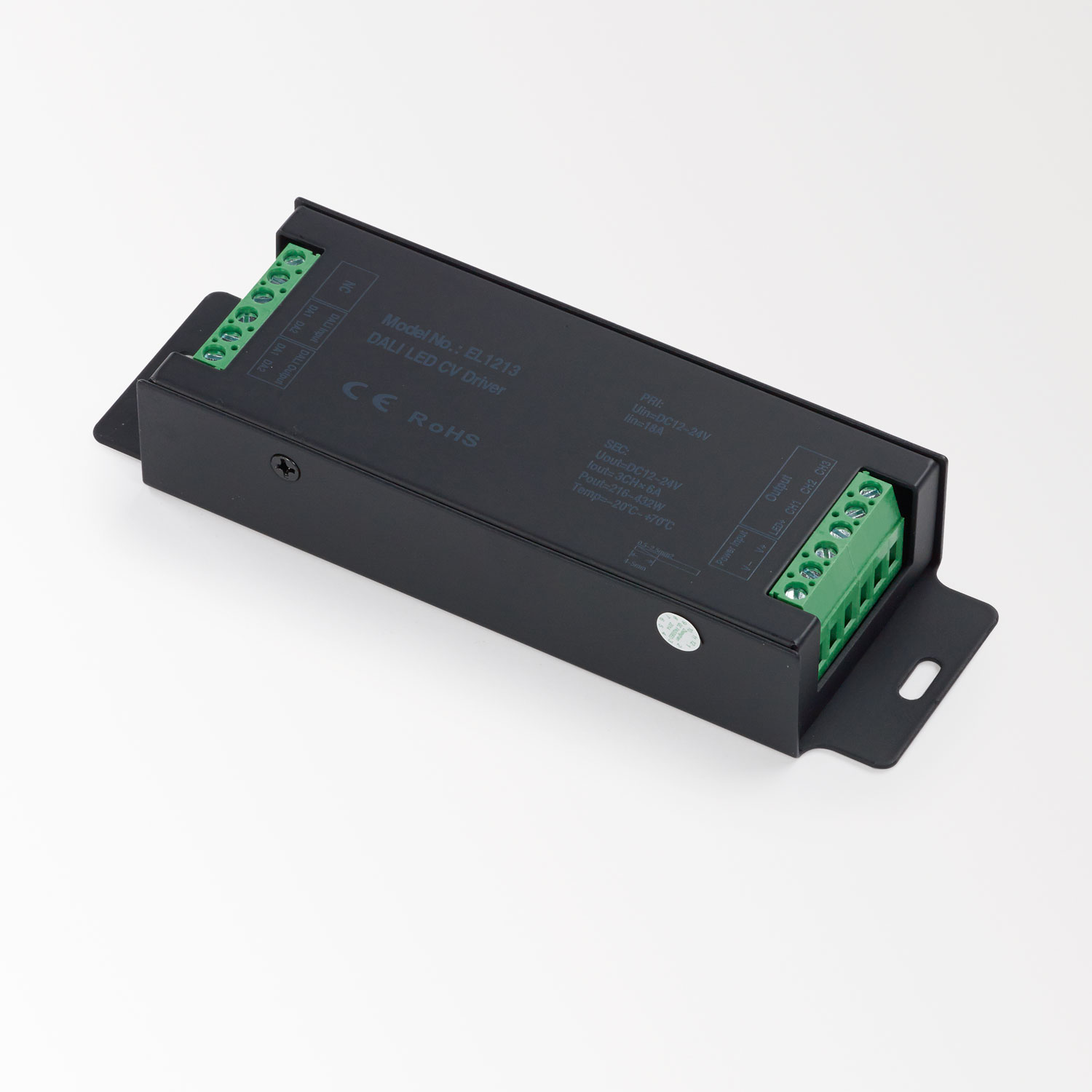

300 90 24 ED2
LED DIMMODULE 24V / 3CH / 6A DIM2
204 00 100
COVERSET R 100
204 00 62
COVERSET R 62
204 00 90
COVERSET R 90
204 62 62
COVERSET S 62
204 80 80
COVERSET S 80
204 90 90
COVERSET S 90
203 99 55
CABLE BASE R
203 99 56
CABLE BASE S

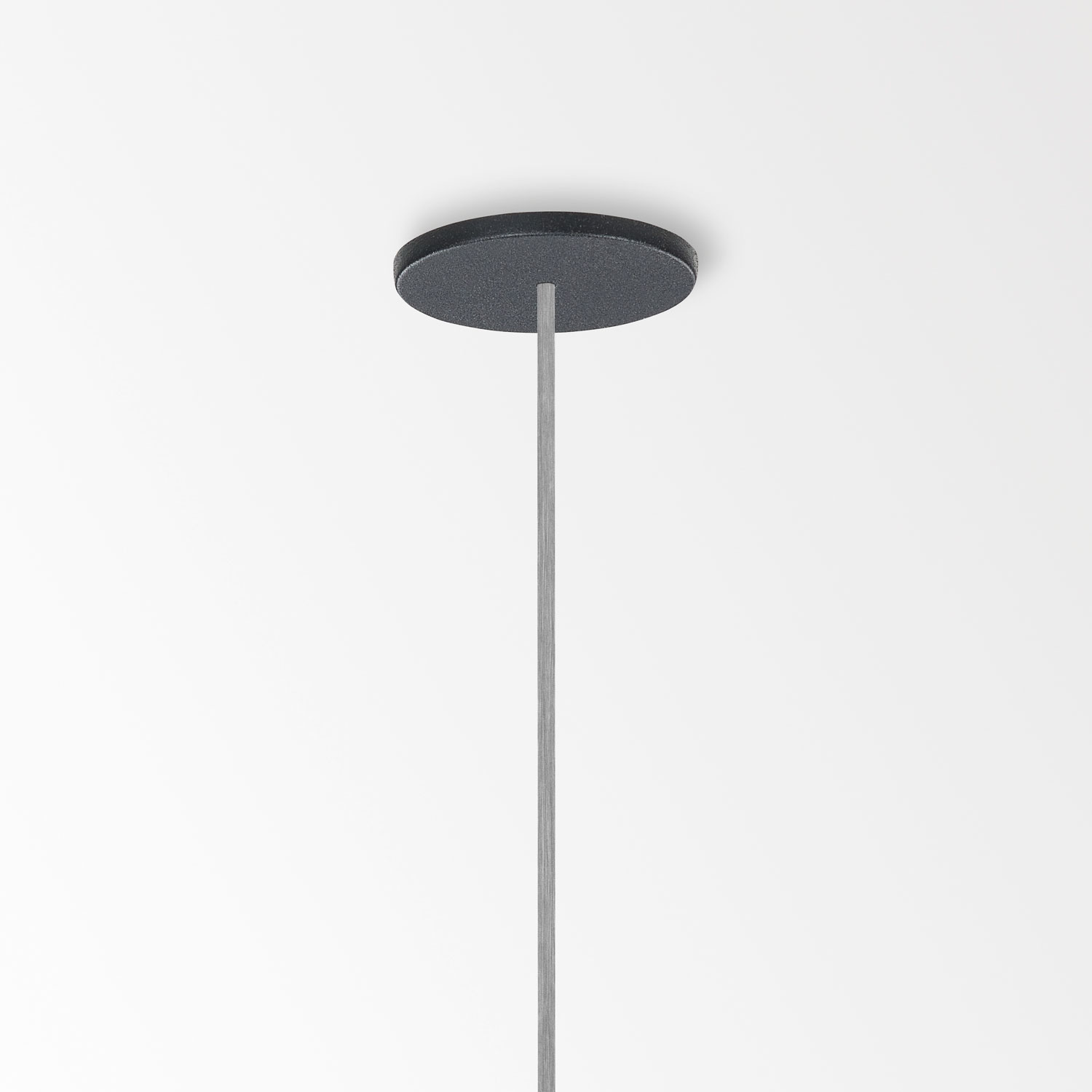

15225 0340
SUSPENSION ST
328 10 01

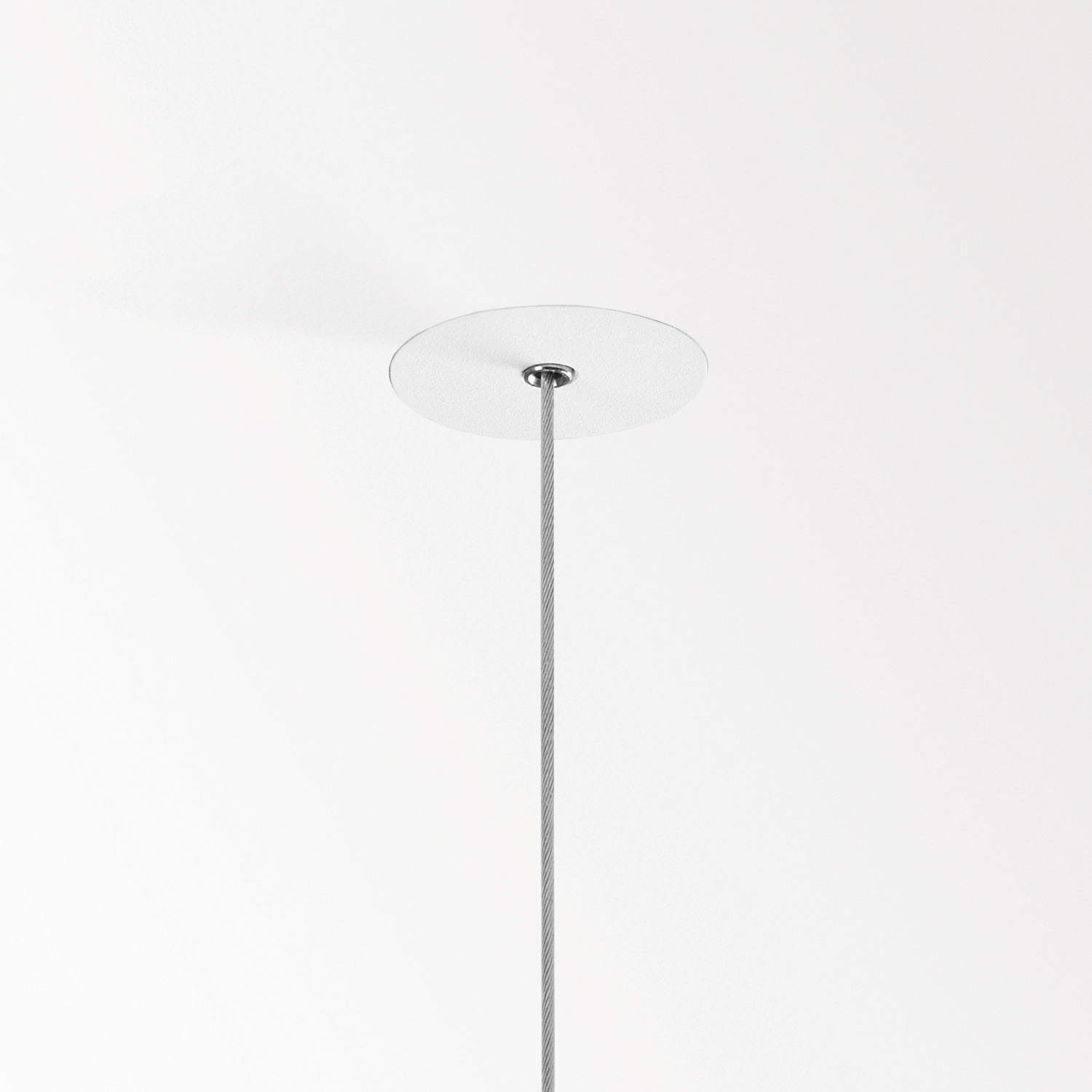

SUSPENSION TRIMLESS O.F.A.
15225 0360
CONNECTION ST
328 10 03
CONNECTION TRIMLESS O.F.A.
Requirements
21012 0225
LED POWER SUPPLY 24V-DC / 100W DIM5

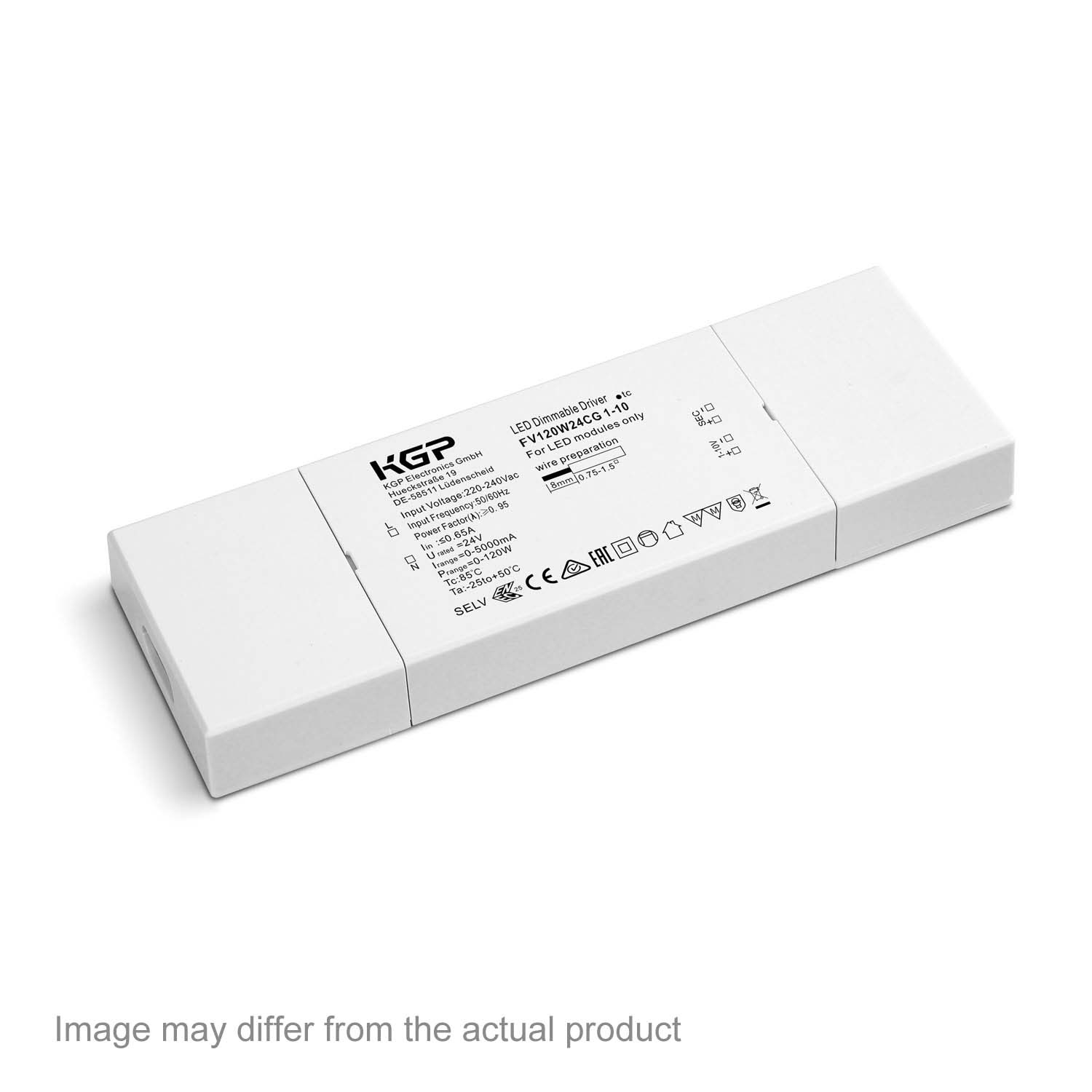

21012 0191
LED POWER SUPPLY 24V-DC / 120W DIM1
21012 0121
LED POWER SUPPLY 24V-DC / 120W IP67 DIM1
21012 0155
LED POWER SUPPLY 24V-DC / 120W IP67 DIM5
300 89 24 150

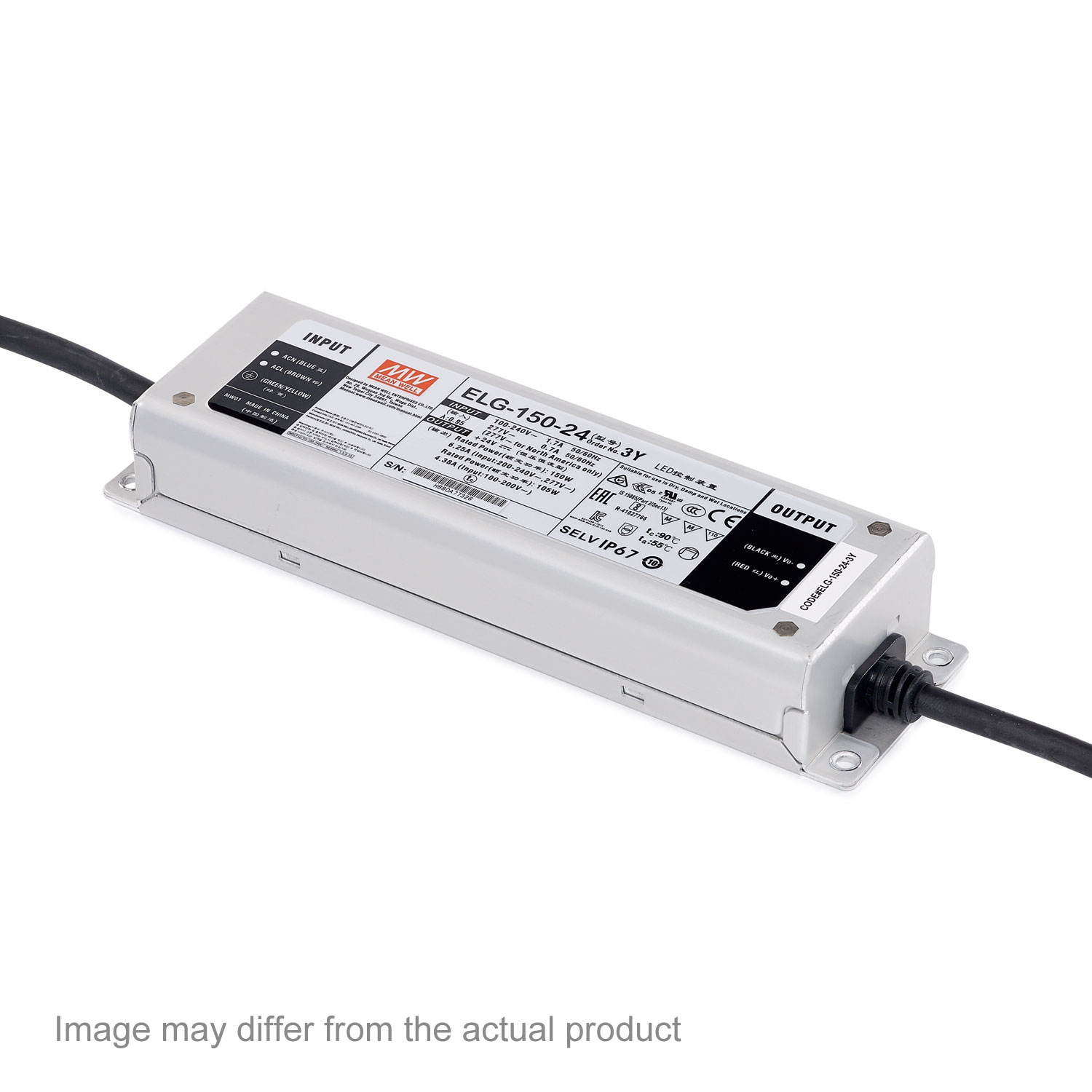

LED POWER SUPPLY 24V-DC / 150W

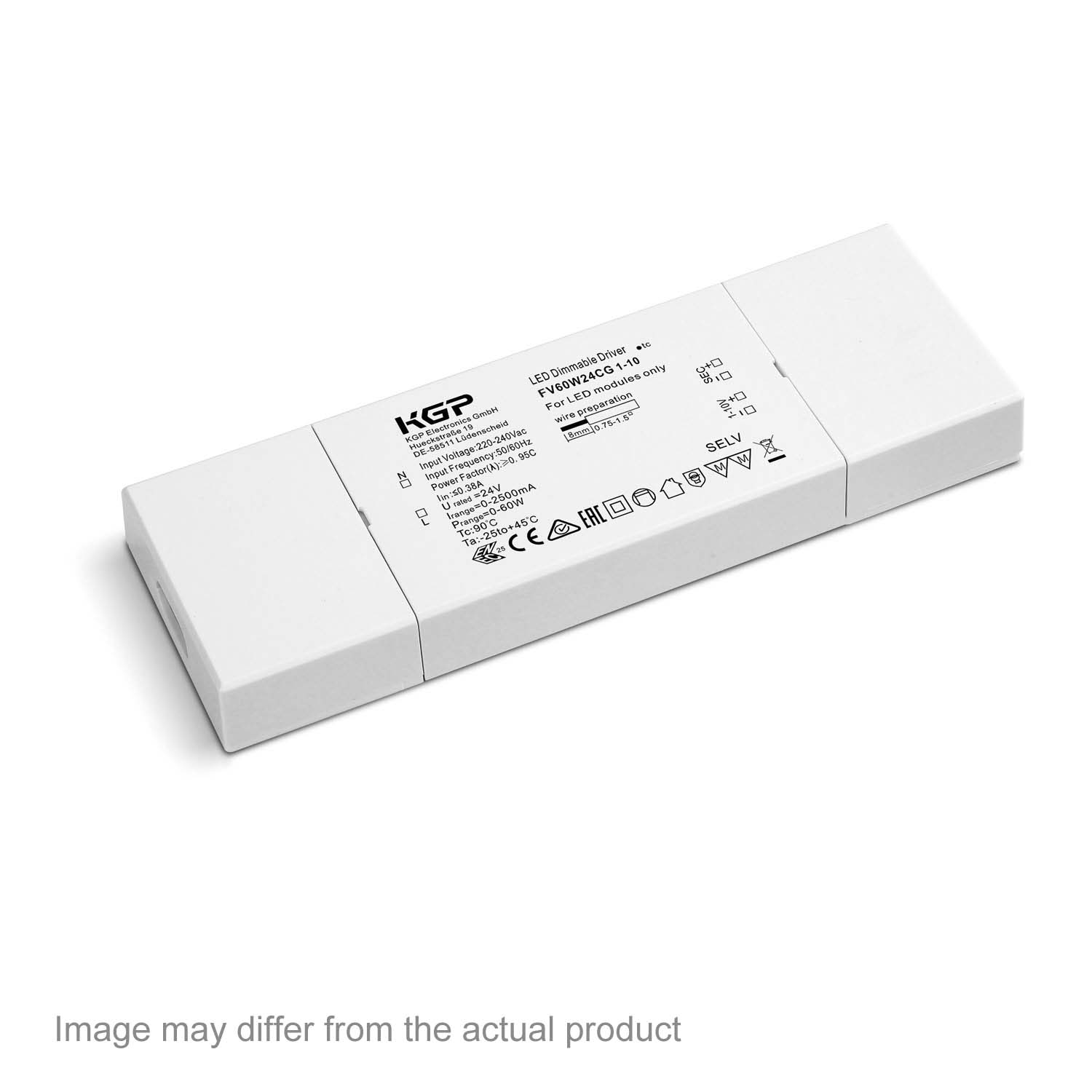

21012 0171
LED POWER SUPPLY 24V-DC / 60W DIM1

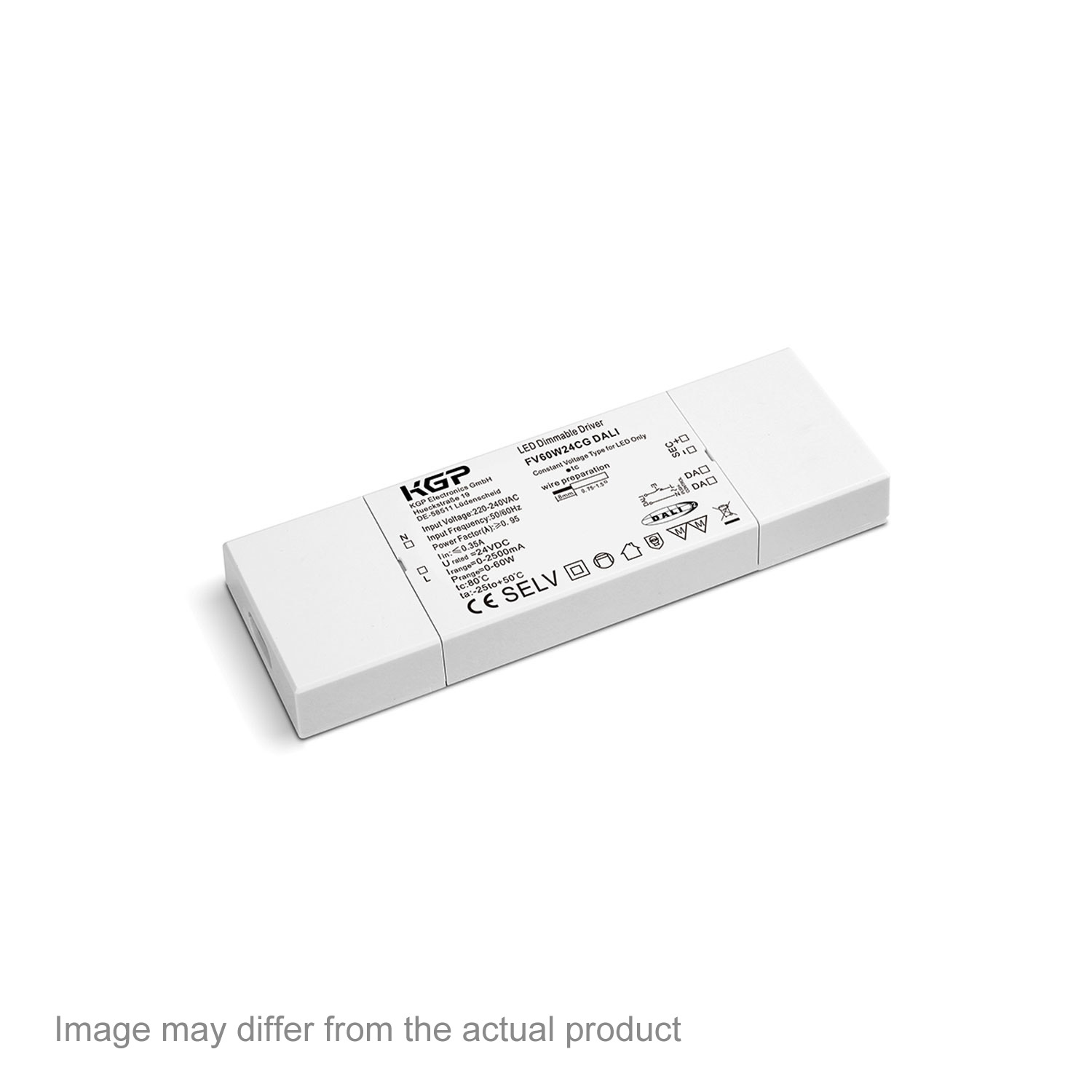

21012 0205
LED POWER SUPPLY 24V-DC / 60W DIM5

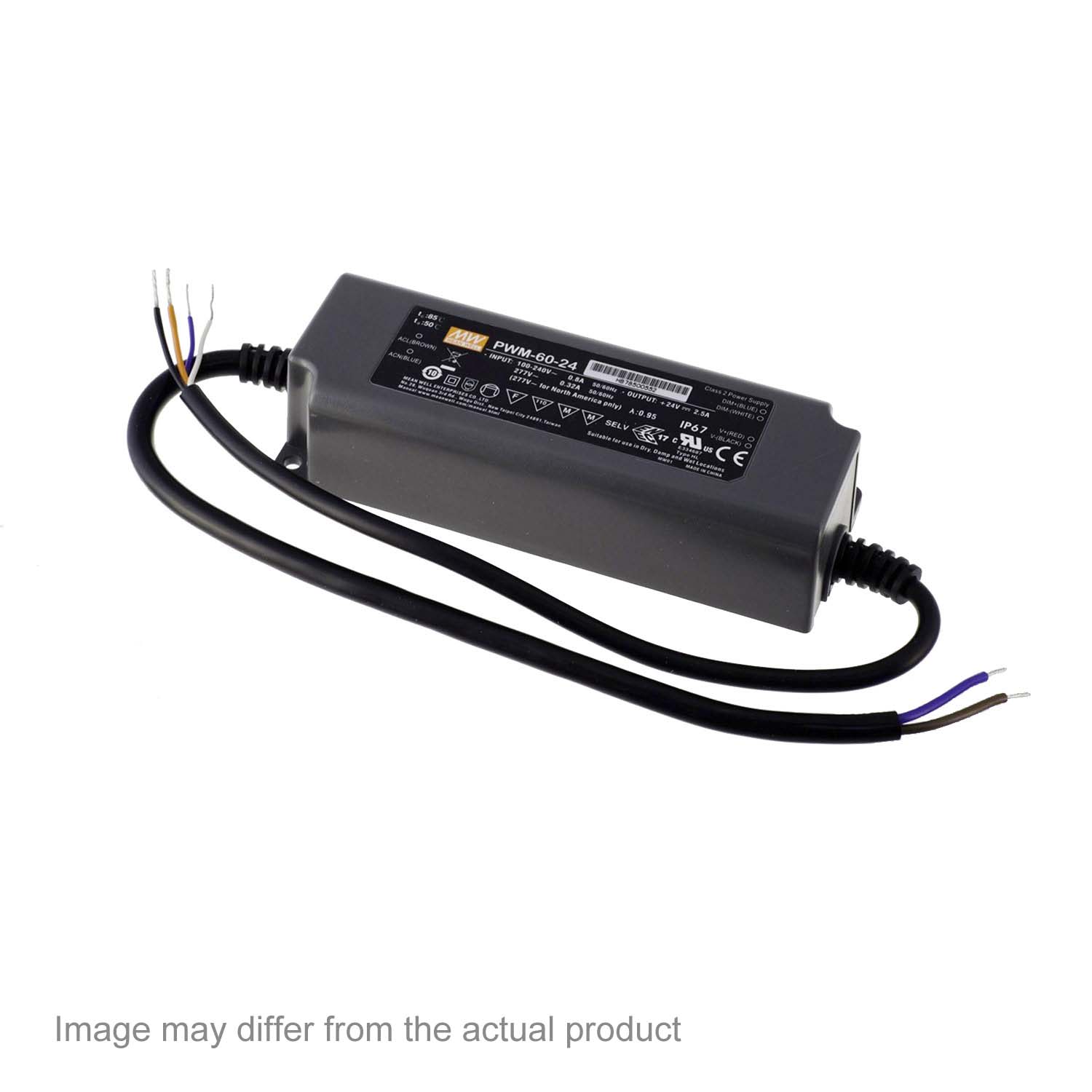

21012 0101
LED POWER SUPPLY 24V-DC / 60W IP67 DIM1
21012 0135
LED POWER SUPPLY 24V-DC / 60W IP67 DIM5

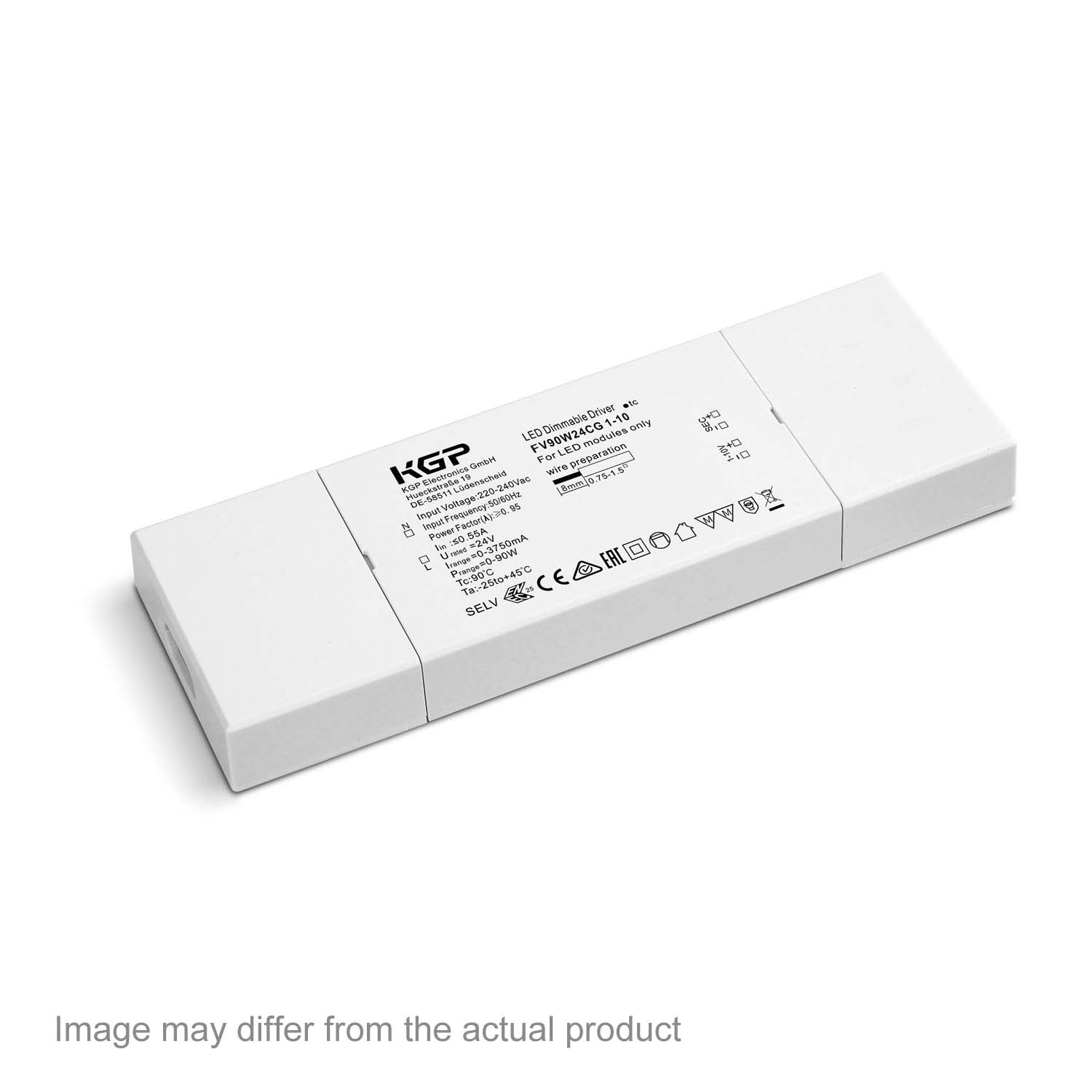

21012 0181
LED POWER SUPPLY 24V-DC / 90W DIM1
21012 0111

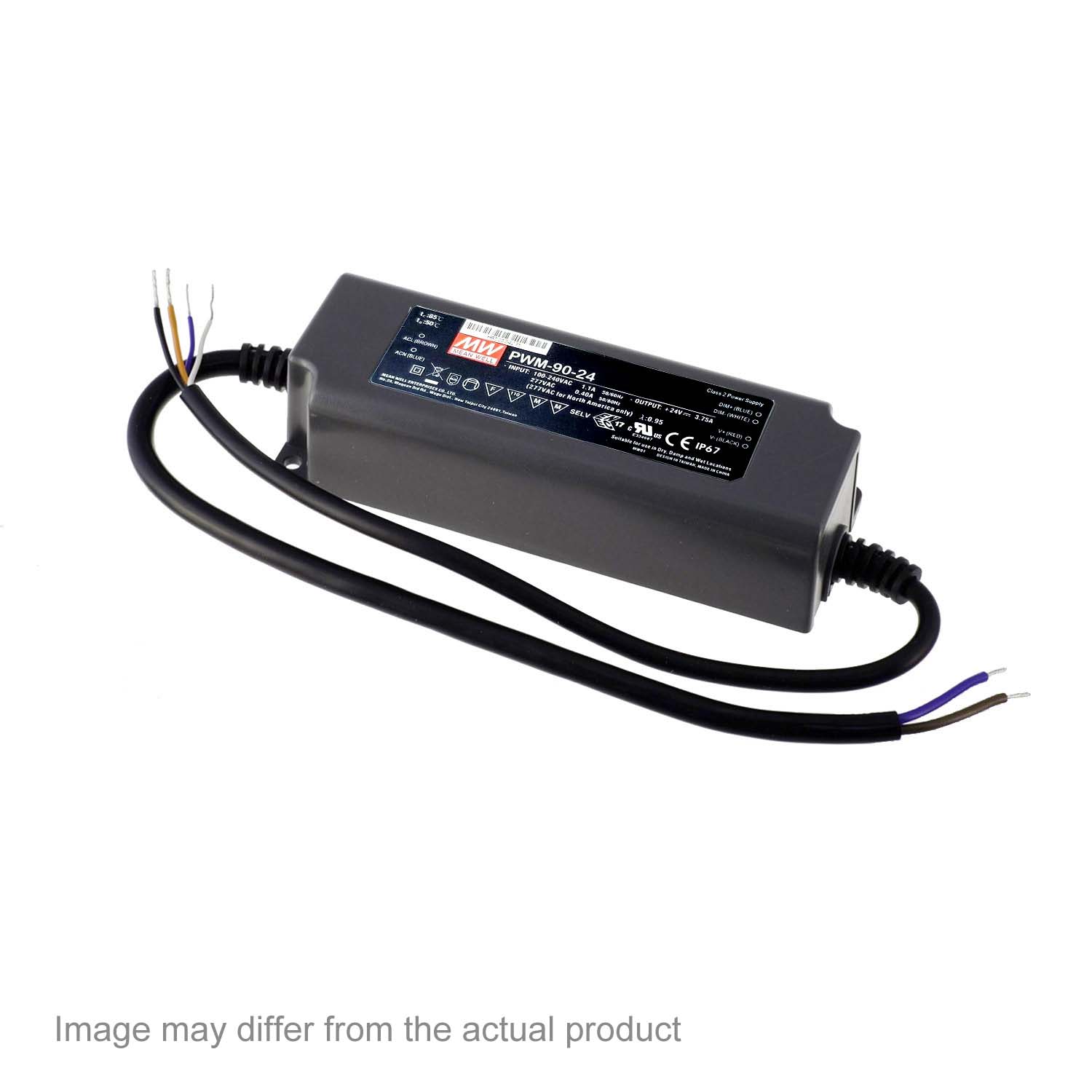

LED POWER SUPPLY 24V-DC / 90W IP67 DIM1
21012 0145
LED POWER SUPPLY 24V-DC / 90W IP67 DIM5
Discover more about the SUPERLOOP family
The Superloop family is an extensive range of slim circular and square shapes, offering a multitude of illumination options. Superloop allows you to choose ‘functional’, by mounting adjustable Spy modules on the round or square shaped base. It allows you to choose ‘decorative’, by mounting the light emitting circle in a horizontal way, or it allows you to choose ‘eye catcher’, by hanging the circle of light vertically, as a statement. Superloop circular light has the ability to diffuse light all around. The loop can be hung using steel cables, based in one fixation point or multiple suspension points, or from a steel rod suspending the ring from the air. Superloop is also available in a round or square shape with a Delta Light custom engineered 48V low voltage track on the inside. This allows you to position and move light modules all around, offering maximum flexibility and allowing you to meet any need of the project. The modules enable you to move from subtle functionality to very expressive or timeless elegance. The Flemish Gold and Flemish Bronze finishes or the Spot modules Vizir and Hedra offer you a way to upgrade the minimal appearance of the loop. By adding the Fix modules with down- or down-up light, combined with a clear or frosted glass, you can transform your Superloop into a modern chandelier. Looking for a more expressive and unique statement? Just plug and play with the ledtubes of the XY180 collection. Superloop brochure
