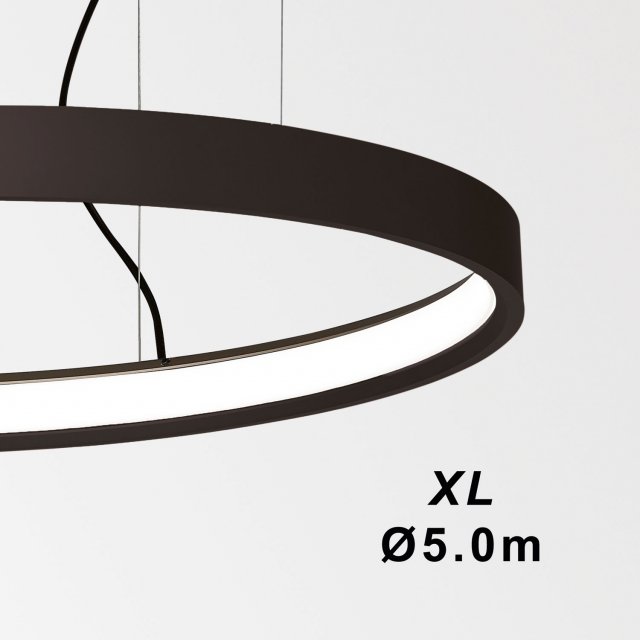

SUPERLOOP HC 500 SBL 930 B

General

Location
Indoor
CCT
3000K
Fixation
Ceiling
Installation
Suspended
IP
IP20
Weight (kg)
16.2
Adjustability
non adjustable
Information
INCL.PC SBL 5 SEGMENTS EXCL.LED POWER SUPPLY 24-DC INCL.10 x CABLE SUSPENSION SINGLE AUTO. 3.0m INCL.5 x CABLE 2 x 0.75mm²

Electrical

Voltage
24V-DC
Class
III
Dimming type
depending on type of external power supply
Energy class
F

Lightsource

Light source
LED
LED information
5 x (LED FLEX FP 45W / CRI>90 / 3000K / 5445lm)
LED technics (light source)
27225 lm // 225 W // 121 lm/W
LED technics (luminaire)
12251lm // 259W // 47lm/W

Additional

Requirements
LED POWER SUPPLY 24V-DC
Options
CABLE BASE R / S COVERSET R 62-90-100 / S 62-80-90 CONNECTION ST / CONNECTION TRIMLESS SUSPENSION ST / SUSPENSION TRIMLESS
Technical data was measured in optimum conditions.
