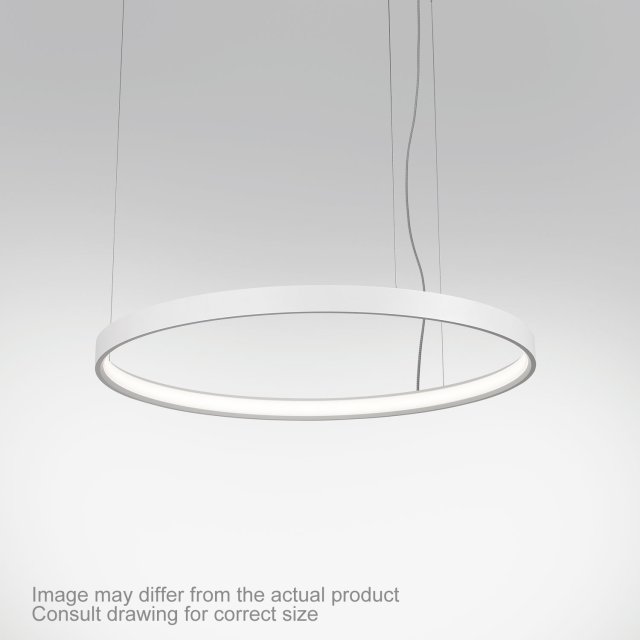

SUPERLOOP HC 70 SBL 930 W

General

Location
Indoor
CCT
3000K
Fixation
Ceiling
Installation
Suspended
IP
IP20
Weight (kg)
3
Adjustability
non adjustable
Information
INCL.PC SBL EXCL.LED POWER SUPPLY 700-900mA-DC INCL.3 x CABLE SUSPENSION SINGLE AUTO. 3.0m INCL.1 x CABLE 2 x 0.75mm²

Electrical

Class
III
Dimming type
depending on type of external power supply
Energy class
E

Lightsource

Light source
LED
LED information
LED cluster 28,2-39W / CRI>90 (R9: 59) / 3000K / 3888-5160lm
SDCM
SDCM3
LM80
L70 > 30000
LED technics (light source)
5160lm // 39W // 132lm/W
LED technics (luminaire)
3836lm // 45W // 86lm/W

Additional

Requirements
LED POWER SUPPLY 700 / 900mA-DC DIM SUPERLOOP POWERBOX L/H 700mA SUPERLOOP POWERBOX H 900mA
Options
CABLE BASE R / S COVERSET R 62-90-100 / S 62-80-90 CONNECTION ST / CONNECTION TRIMLESS SUSPENSION ST / SUSPENSION TRIMLESS
Technical data was measured in optimum conditions.
