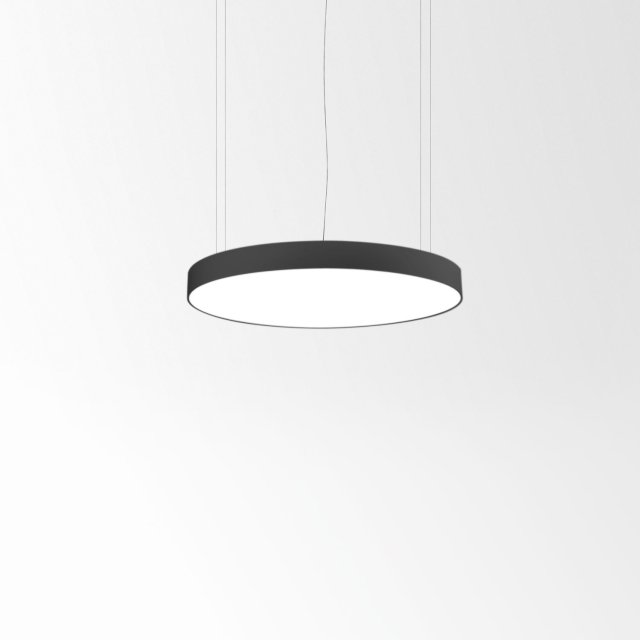

SUPERNOVA LINE 65 DOWN-UP 930 B

SUPERNOVA LINE 65 TW DOWN-UP DIM5 B

Black - 274 96 06 26 ED5 B
CRI
CCT
Add to pinlist
Interesting projects

General

Location
Indoor
CCT
2700K-5700K
Fixation
Ceiling
Installation
Suspended
IP
IP20
Weight (kg)
7.1
Adjustability
non adjustable
Information
INCL.PC SBL INCL.DIMMABLE LED POWER SUPPLY - DALI (DT6) CABLING 2 CIRCUITS 4 DALI CONTROL CHANNELS INCL.4 x CABLE SUSPENSION SINGLE AUTO. 3.0m INCL.1 x CABLE 5 x 0.75mm²

Electrical

Voltage
120-240V / 0|50-60Hz
Class
I
Dimming type
DALI
Energy class
F
Certificates
CB, ENEC

Lightsource

Light source
LED
LED information
DOWN @ 2700K : LED cluster 45W / CRI>80 / 2700K - 5700K / 4208lm UP @ 2700K : LED cluster 17W / CRI>80 / 2700K - 5700K / 1374lm OR DOWN @ 5700K : LED cluster 45W / CRI>80 / 2700K - 5700K / 4841lm UP @ 5700K : LED cluster 17W / CRI>80 / 2700K - 5700K / 1510lm
LED technics (light source)
DOWN @ 2700K: 4208 lm // 45 W // 93 lm/W UP @ 2700K: 1374 lm // 17 W // 81 lm/W OR DOWN @ 5700K: 4841 lm // 45 W // 108 lm/W UP @ 5700K: 1510 lm // 17 W // 89 lm/W
LED technics (luminaire)
DOWN @ 2700K: 3131lm // 52W // 60lm/W UP @ 2700K: 1201lm // 20W // 61lm/W OR DOWN @ 5700K: 3592lm // 52W // 69lm/W UP @ 5700K: 1320lm // 20W // 68lm/W

Additional

Options
CABLE BASE R / S COVERSET R 62-90-100 / S 62-80-90 CONNECTION ST / CONNECTION TRIMLESS SUSPENSION ST / SUSPENSION TRIMLESS
Technical data was measured in optimum conditions.
