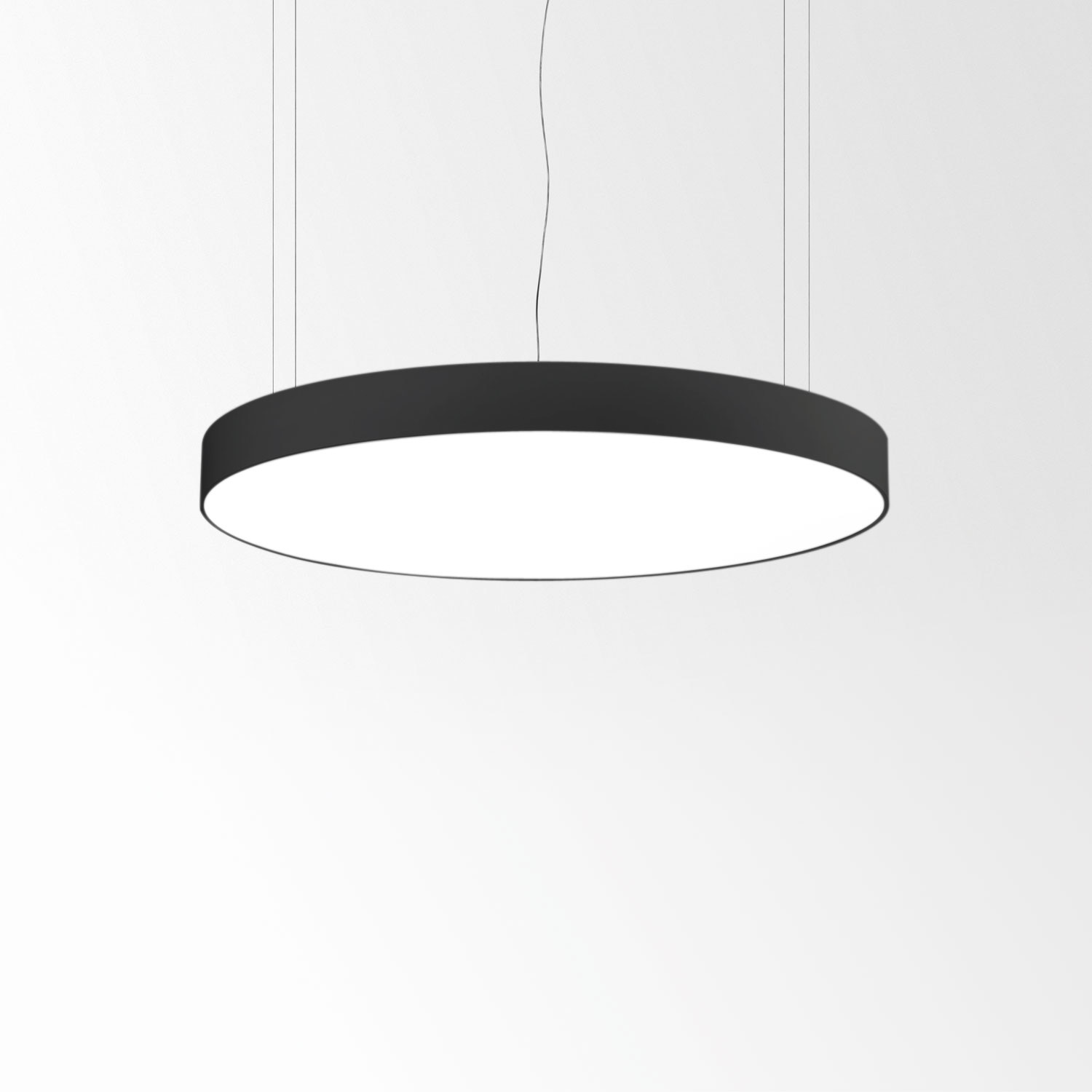

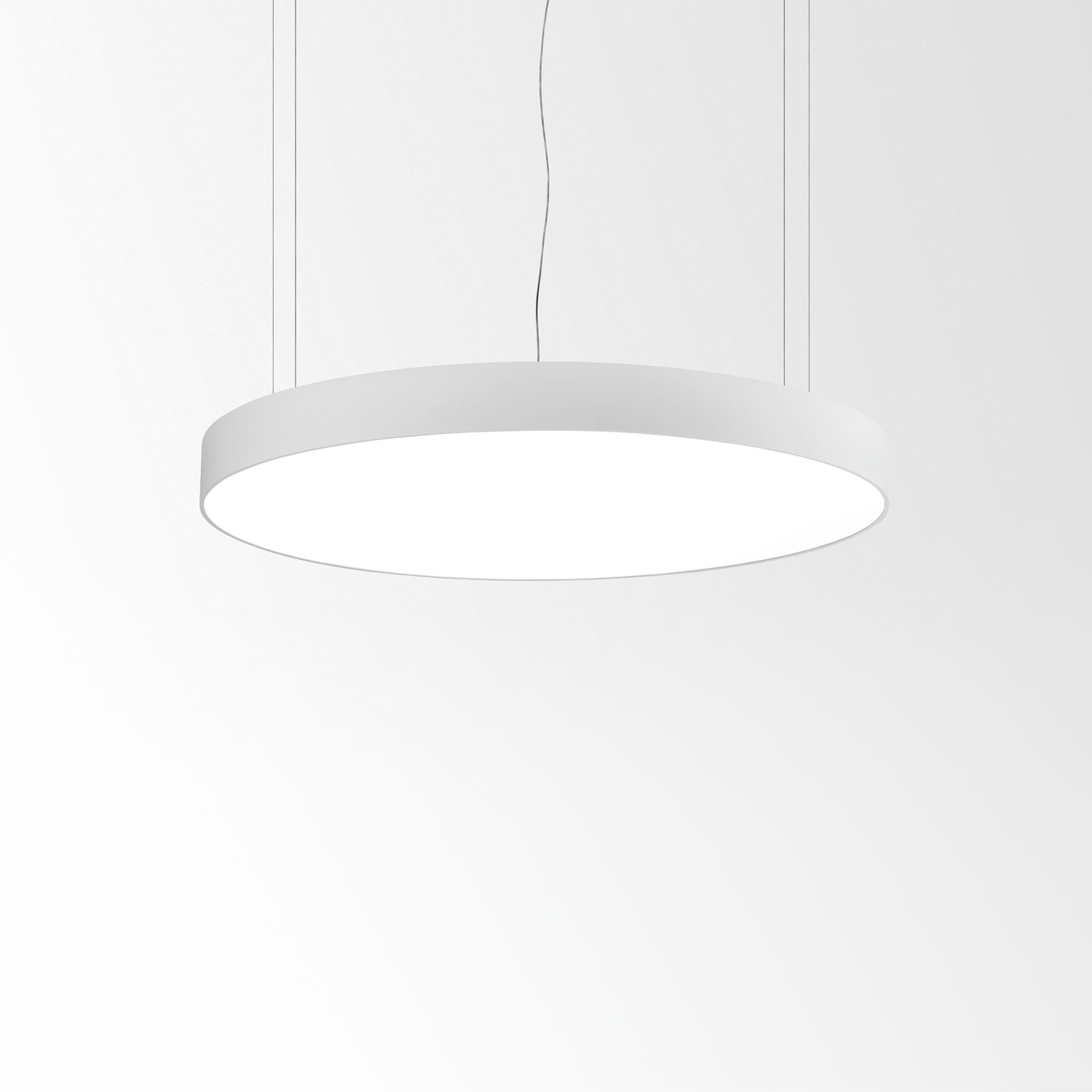

SUPERNOVA LINE 95 DOWN-UP 930
Available colors
-
BLACK
20618 9300 B -
WHITE
20618 9300 W
Characteristics
| Location | INTERIOR |
|---|---|
| Fixation | Ceiling Suspended |
| Recessed depth | n.a. |
| Thickness of mounting surface | n.a. |
| Information |
INCL.PC SBL LED CLUSTERS 150W DOWN + 30W UP / CRI>90 / 3000K / 23000lm DOWN + 4600lm UP INCL.LED POWER SUPPLY INCL.4 x CABLE SUSPENSION SINGLE AUTO. 3.0m INCL.1 x CABLE 3 x 0.75mm² |
| CRI | CRI 90 |
| Colour temp | Warm White (+3000K) |
| LED Technics (light source) | 27600 lm // 180 W // 136 lm/W |
| LED Technics (luminaire) | 20976 lm // 207 W // 101 lm/W |
| Electrical | 220-240V / 0|50-60Hz |
| Class | Class I |
| Nett weight | 13 Kg |
| IP | IP20 |
| Minimum distance | n.a. |
| Remarks | n.a. |
| Energy Class | D |
| Options |
CABLE BASE R / S COVERSET R 62-90-100 / S 62-80-90 CONNECTION ST / CONNECTION TRIMLESS SUSPENSION ST / SUSPENSION TRIMLESS |
Description icons:
-
The CE marking on many products shows that the products is compliant with the European regulations.
-
A Class I electrical appliance must have its chassis connected to electrical earth (ground) by an earth conductor.
-
Ceiling suspended
Finish your specification
Options
204 00 100
COVERSET R 100
204 00 62
COVERSET R 62
204 00 90
COVERSET R 90
204 62 62
COVERSET S 62
204 80 80
COVERSET S 80
204 90 90
COVERSET S 90
203 99 55
CABLE BASE R
203 99 56
CABLE BASE S
15225 0340
SUSPENSION ST
328 10 01
SUSPENSION TRIMLESS O.F.A.
15225 0360
CONNECTION ST
328 10 03
CONNECTION TRIMLESS O.F.A.
Discover more about the SUPERNOVA family
Supernova is an extensive range of pure geometrically formed lighting fixtures that guarantee powerful illumination and atmosphere. The range comes in different diameters and application possibilities. The LED version features in-house developed printed circuit boards specifically engineered to provide a uniform illumination of the polycarbonate. The Supernova is available with a 4 mm Polycarbonate (PC SBL), or 2 mm Polycarbonate Prismatic + 1,5 mm PC SBL, providing a very enjoyable diffuse lighting effect. Presence control and daylight simulation can now be done thanks to the optional presence detection and the tunable white versions of the Supernova. Supernova brochure
