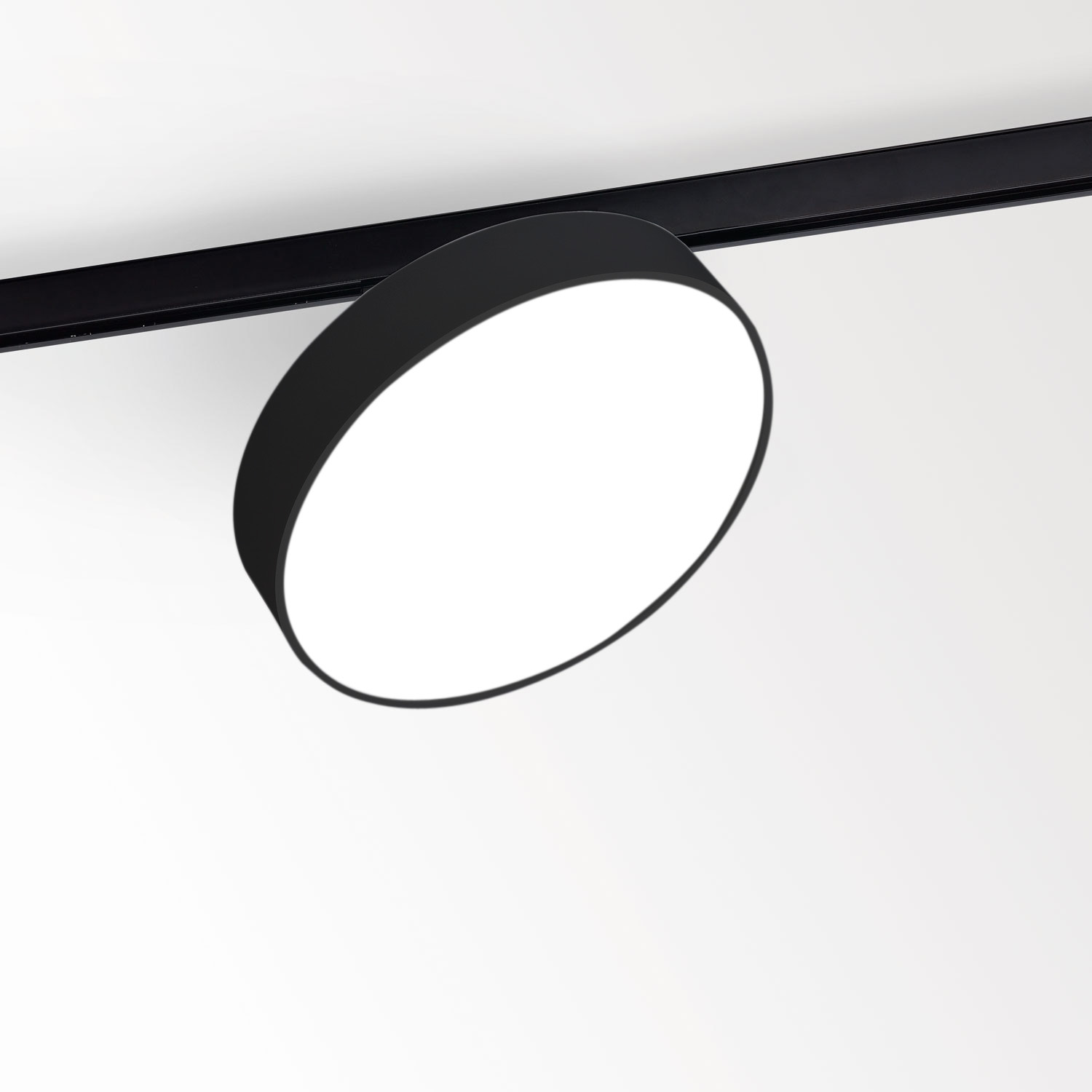

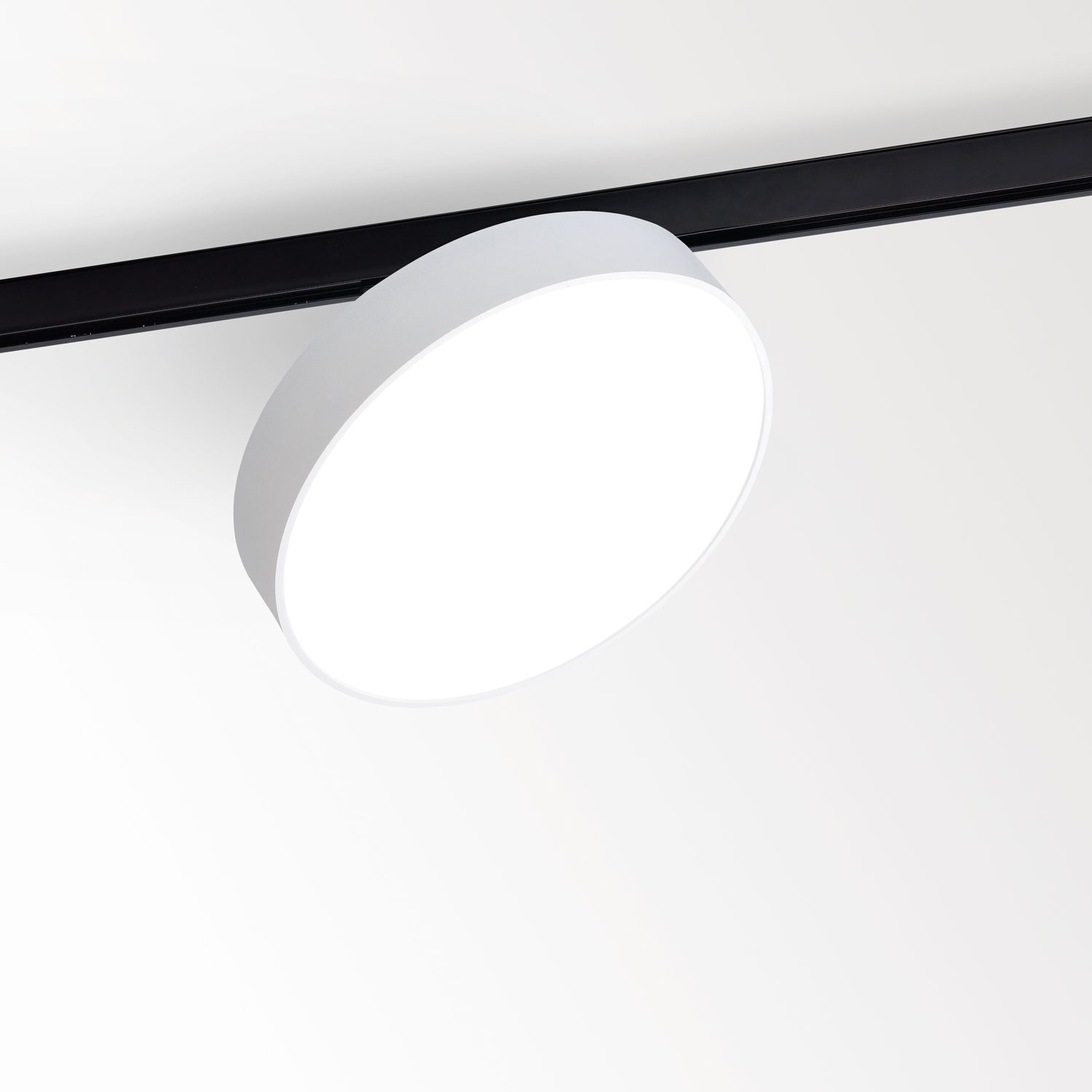

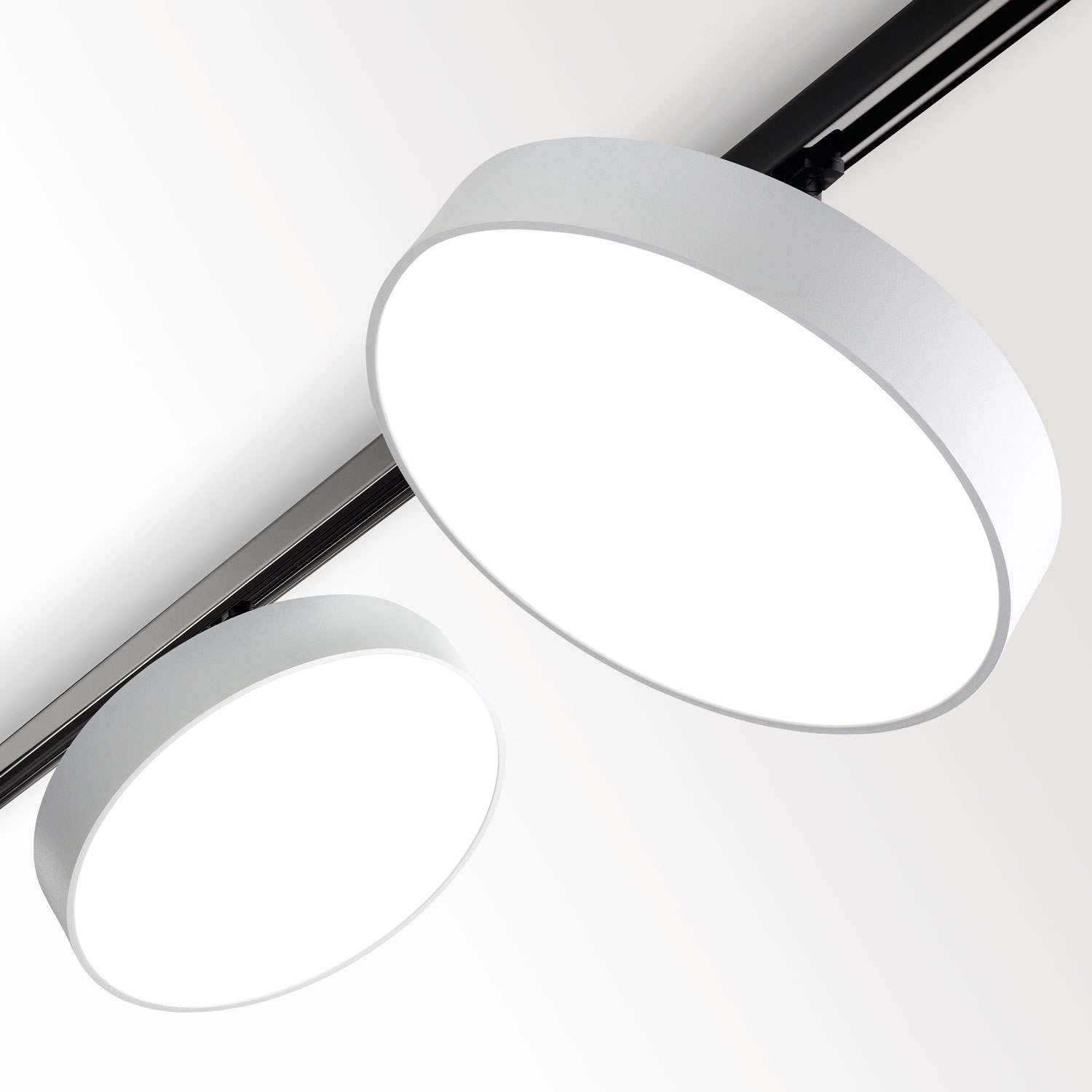

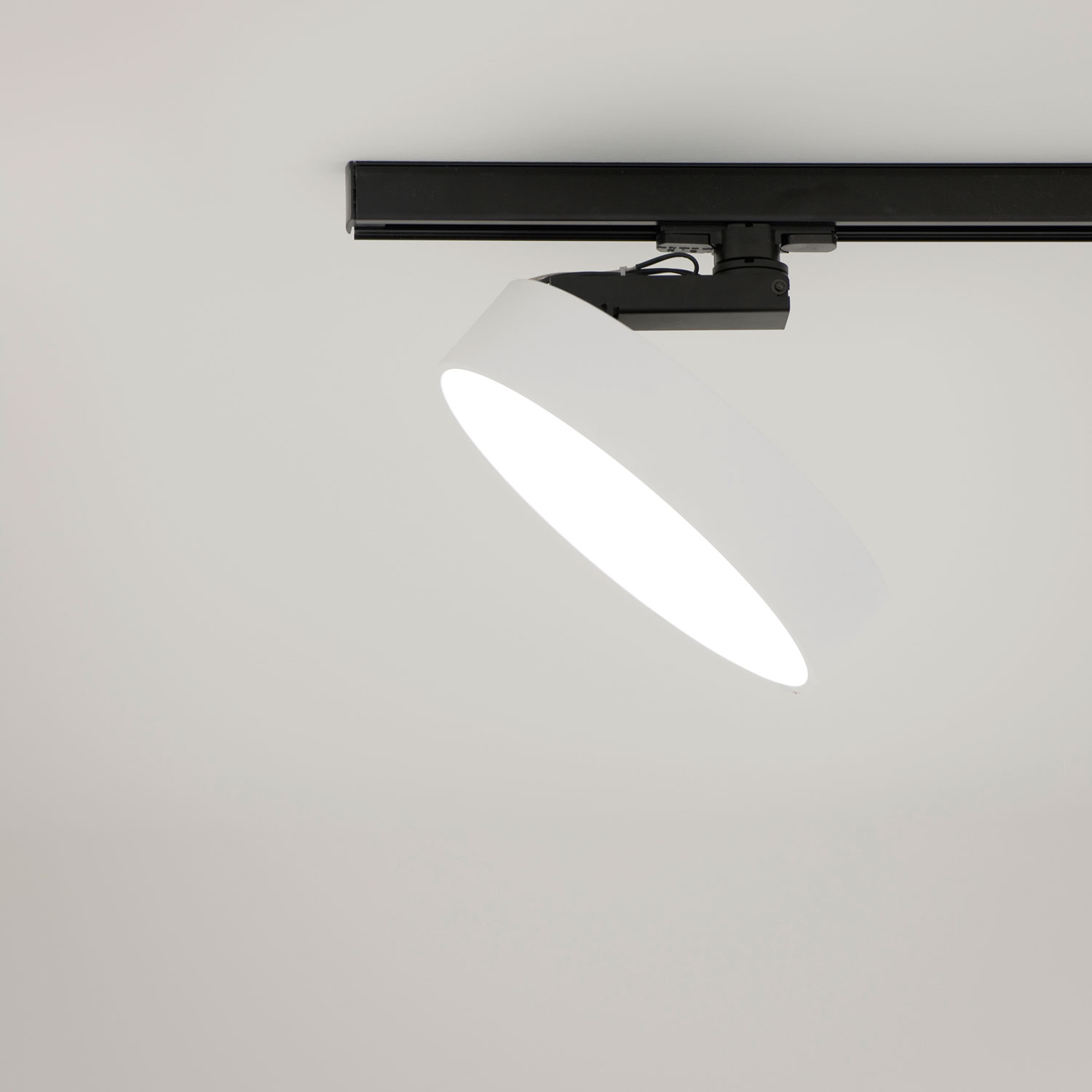

SUPERNOVA XS PIVOT 260 ADM
Available colors
-
BLACK
274 88 2515 ADM B -
WHITE
274 88 2515 ADM W
Characteristics
| Location | Interior |
|---|---|
| CRI | CRI 80 |
| Colour temp | Warm White (+3000K) |
| LED Technics (light source) | 1580 lm // 15 W // 105 lm/W |
| LED Technics (luminaire) | 1139 lm // 17 W // 66 lm/W |
| Cutout shape/size | n.a. |
| Recessed depth | n.a. |
| Thickness of mounting surface | n.a. |
| Information |
ADJUSTABLE 0-45°/350° INCL.PC SBL LED CLUSTER 15W / CRI>80 / 3000K / 1580lm 3F MULTI ADAPTER INCL.LED POWER SUPPLY 24V-DC / 20W |
| Electrical | 220-240V / 50-60Hz |
| Class | Class I |
| Nett weight | 1.8 Kg |
| IP | IP20 |
| Minimum distance | n.a. |
| Remarks | n.a. |
| Energy Class | F |
| Requirements |
TRACK 3F DIM |
Description icons:
-
The CE marking on many products shows that the products is compliant with the European regulations.
-
A Class I electrical appliance must have its chassis connected to electrical earth (ground) by an earth conductor.
Accessories
No accessories
Requirements
Discover more about the SUPERNOVA XS family
With its 26 cm or 33 cm diameter, the Supernova XS (Extra Small) can be considered to be the baby in the range when it comes to size, but not when it comes to performance and skills. It only needs 6 cm of height to hide away an intense cluster of powerleds in its perfectly curved aluminium body. Following its big brother, the recessed Supernova XS is distinguished thanks to its remarkable tilted application when installed into the ceiling, a particular way of changing a simple round downlight into a playful eye-catcher.
