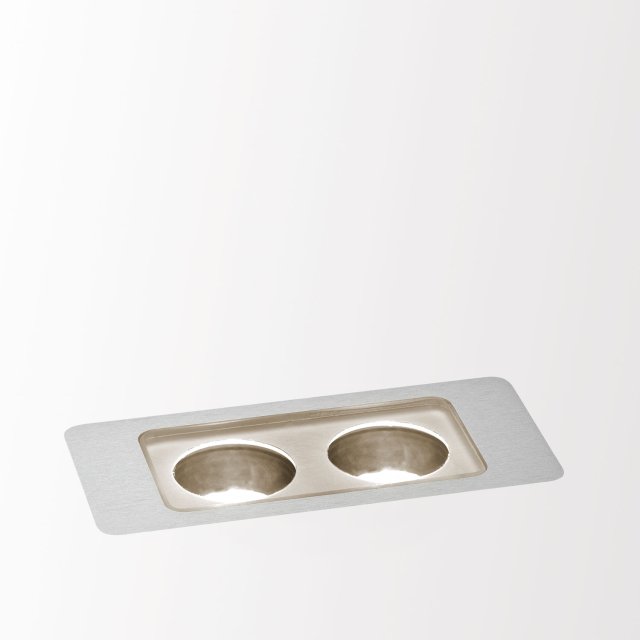

TACTIC 2 WW ANO
Alu Anodized - 213 42 22 ANO
CRI
Beam angle
CCT
General
| Location | Indoor, Outdoor |
| Fixation | Floor |
| Installation | Recessed |
| Cutout shape | rectangle |
| Cutout size (mm) | 97 x 47 |
| Min. recessed depth (mm) | 80 |
| IP | IP67 |
| IK | IK03 |
| Weight (kg) | 0.4 |
| Adjustability | non adjustable |
| Information | INCL.2 x LENS 25°
INCL.1 x CABLE H05 RN-F 2 x 1mm² 0,5m
EXCL.LED POWER SUPPLY 350mA-DC
IEC 60598-2-13 : max.150kg 25N/cm²
ESG 6mm |
Electrical
| Class | III |
| Dimming type | depending on power supply |
Lightsource
| Light source | LED |
| LED information | 2 x (LED 1,1W / CRI>80 / 3000K / 120lm) |
| SDCM | SDCM3 |
| Riskgroup | RG1 |
| LED technics (light source) | 240lm // 2,2W // 122lm/W |
| LED technics (luminaire) | 204lm // 3W // 81lm/W |
Additional
| Options | LED POWER SUPPLY 350mA-DC DIM
CONCRETE BOX 183 |
Technical data was measured in optimum conditions.
Downloads
Following downloads are available:
Finish your specifications
Use the information listed below to complete your product
requirement
LED power supplies
| Product name | Voltage | Class | Dimming type | IP | Cutout shape | Cutout size | max. devices / supply | ||
|---|---|---|---|---|---|---|---|---|---|
 | LED POWER CONVERTER 48V-DC to 350 mA-DC / 15W DIM5 | - | III | DALI | IP20 | round | 30 | 2->5 | Add to pinlist |
 | LED POWER SUPPLY 350mA-DC / 10W DIM8 | 220-240V | II | mains (phase cut-off) | IP20 | round | 42 | 3 | Add to pinlist |
 | LED POWER SUPPLY 350mA-DC / 18W DIM8 | 220-240V | II | mains (phase cut-off) | IP20 | round | 55 | 5->7 | Add to pinlist |
 | LED POWER SUPPLY MULTI-POWER DIM7 | 110-240V | II | 1-10V or push button | IP20 | round | 55 | 5(5) | - | - | Add to pinlist |
 | LED POWER SUPPLY MULTI-POWER MINI DIM5 | 110-240V | II | DALI | IP20 | round | 55 | 11(11) | - | - | Add to pinlist |
 | LED POWER SUPPLY MULTI-POWER DIM9 | 110-240V | II | 1-10V or DALI or push button | IP20 | round | 82 | 10(10) | - | - | Add to pinlist |
 | LED POWER SUPPLY MULTI-POWER DIM5 | 110-240V | II | DALI | IP20 | round | 72 | 6(5) | - | - | Add to pinlist |
 | LED POWER SUPPLY MULTI-POWER HV DIM9 | 110-240V | II | 1-10V or DALI or push button | IP20 | round | 84 | 2->15(15) | - | - | Add to pinlist |
 | LED POWER SUPPLY 350mA-DC / 15W | 100-240V | II | non-dimmable | IP20 | round | 40 | 5(3) | Add to pinlist |
