WHITE-WHITE
206 11 811 922 W-WLocation | INTERIOR |
---|---|
Fixation | Ceiling Recessed |
Cutout shape/size | ![]() |
Recessed depth | 115 mm |
Thickness of mounting surface | max.25 mm |
Information |

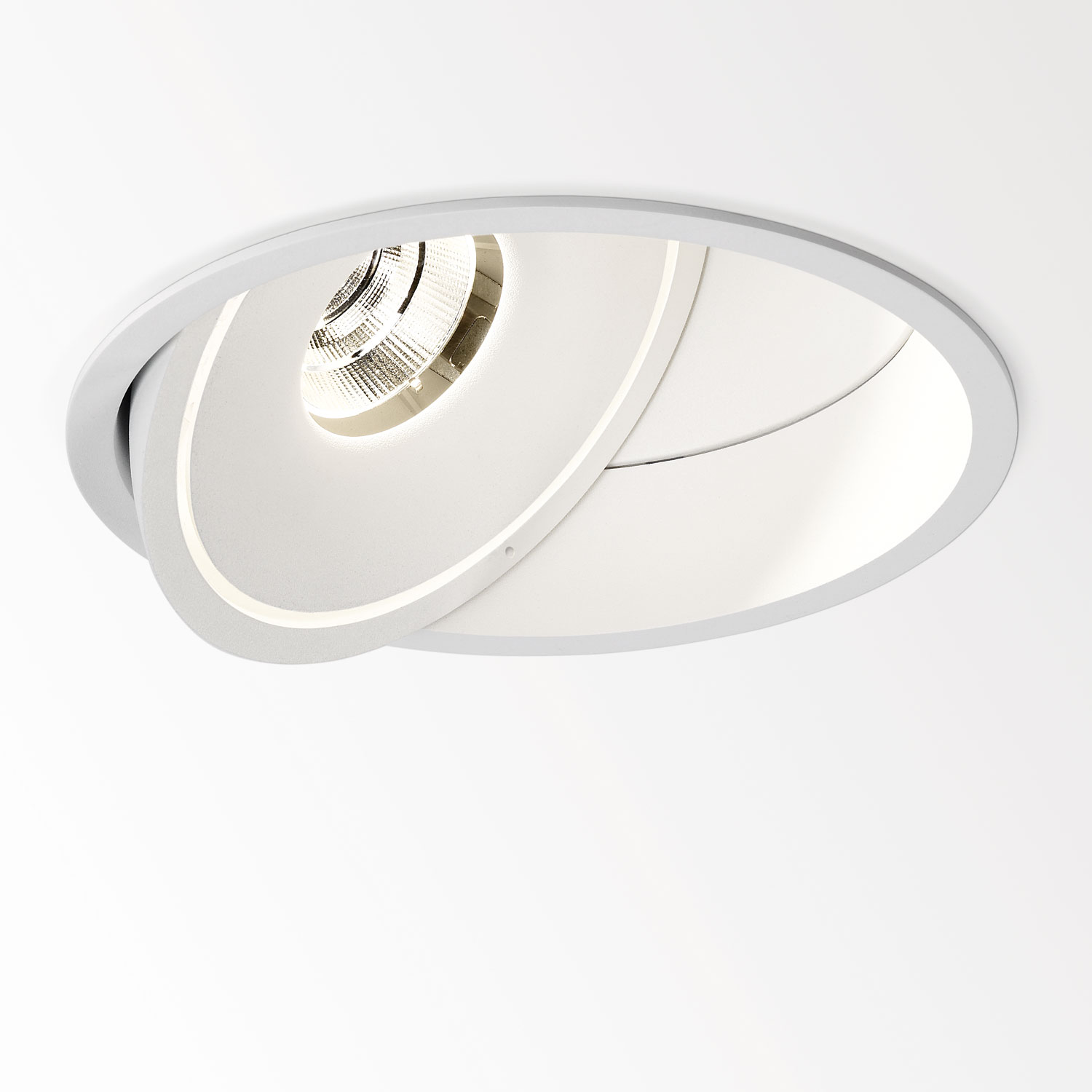

ADJUSTABLE 0-45°/355° 1 x LED 7,1-10,4W / CRI>90 / 2700K / 779-1083lm REFLECTOR FL-33° EXCL.LED POWER SUPPLY 350-500mA-DC Patented Ex-centric Rotation System Other CRI or KELVIN on request |
CRI | CRI 90 |
Colour temp | Halogen White (+2700K) |
LED Technics (light source) | 1083 lm // 10 W // 105 lm/W |
LED Technics (luminaire) | 926 lm // 12 W // 77 lm/W |
Electrical | |
Class | Class III |
Nett weight | 0.7 Kg |
IP | IP20 |
Minimum distance | n.a. |
Remarks | n.a. |
Energy Class | E |
Options |
PLASTERKIT 118 |
Accessories |
TWEETER CLIP + ACCESSORIES |
Requirements |
LED POWER SUPPLY 350 / 500mA-DC DIM |
202 56 99 01
PLASTERKIT 118
201 03 05
GLASS SBL 40
201 03 01
HONEYCOMB 40
201 03 02
LINEAR SPREAD LENS 40
201 03 04
SOFTENING LENS 40
201 03 03
SPREAD LENS 40
201 03 00
TWEETER CLIP
300 48 350 ED1
LED POWER CONVERTER 48V-DC to 350 mA-DC / 15W DIM1
300 48 350 ED5
LED POWER CONVERTER 48V-DC to 350 mA-DC / 15W DIM5
300 48 350 MDL
LED POWER CONVERTER 48V-DC to 350 mA-DC / 15W MDL
300 48 350 WDL
LED POWER CONVERTER 48V-DC to 350 mA-DC / 15W WDL
300 48 500 ED1
LED POWER CONVERTER 48V-DC to 500 mA-DC / 22W DIM1
300 48 500 ED5
LED POWER CONVERTER 48V-DC to 500 mA-DC / 22W DIM5
300 48 500 MDL
LED POWER CONVERTER 48V-DC to 500 mA-DC / 22W MDL
300 48 500 WDL
LED POWER CONVERTER 48V-DC to 500 mA-DC / 22W WDL
21012 005W
LED POWER SUPPLY MULTI-POWER COMPACT WDL
300 90 68
LED POWER SUPPLY MULTI-POWER DIM5
300 90 61
LED POWER SUPPLY MULTI-POWER DIM6
300 90 124
LED POWER SUPPLY MULTI-POWER DIM7
300 90 64
LED POWER SUPPLY MULTI-POWER DIM7
300 90 63
LED POWER SUPPLY MULTI-POWER DIM9
300 90 135
LED POWER SUPPLY MULTI-POWER HV
300 90 69
LED POWER SUPPLY MULTI-POWER HV DIM9
300 90 125
LED POWER SUPPLY MULTI-POWER MINI DIM5
21012 004W
LED POWER SUPPLY MULTI-POWER WDL

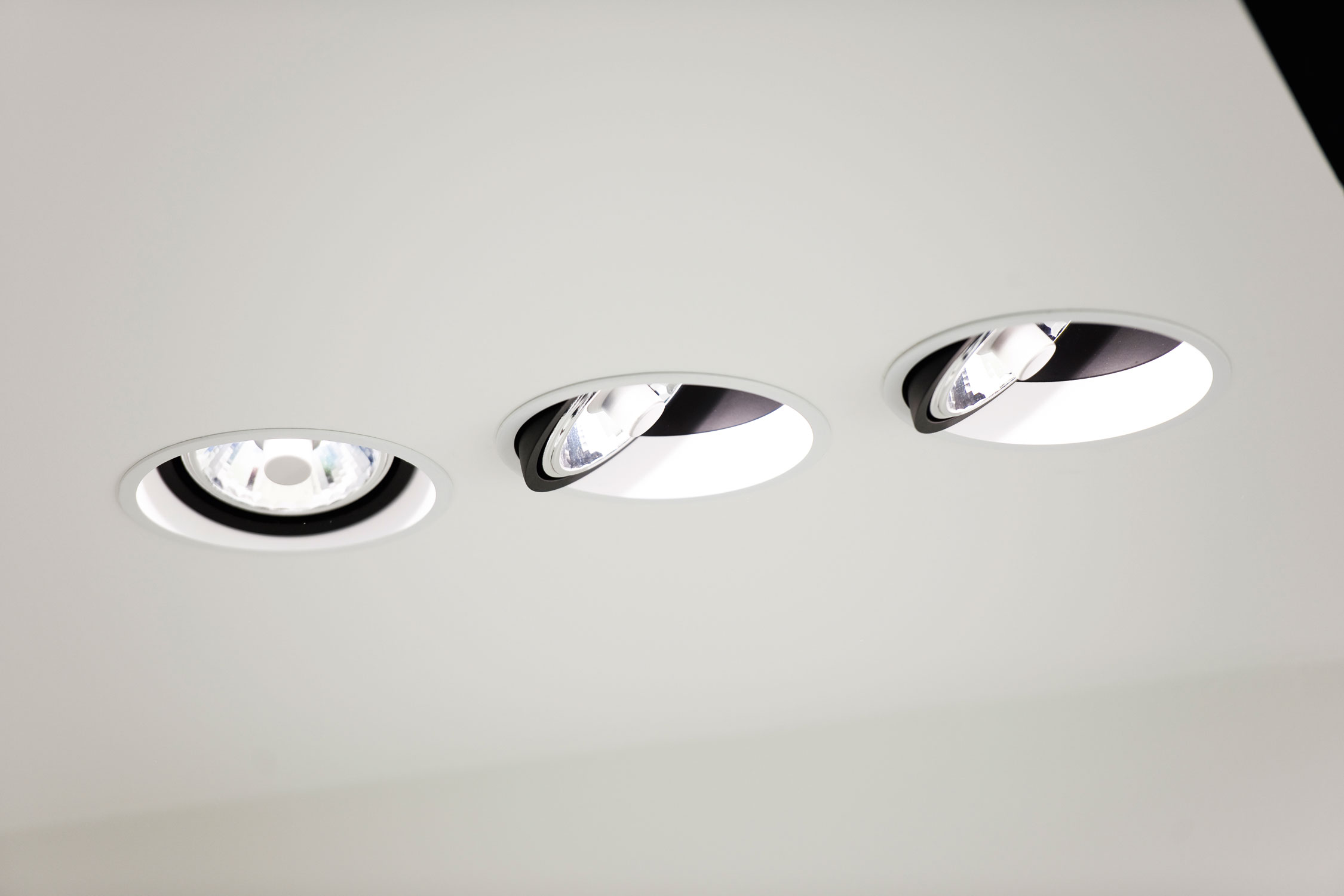

Tweeter is one of the most remarkable families in the Delta Light collection, destined to become a longstanding classic. Available as ceiling recessed and ceiling surface mounted, Tweeter introduces new levels in flexibility, both in movement as in lighting application. With Tweeter Delta Light introduces the ERS – Ex-centric Rotation System®, characterized by an asymmetrical hinge joint, combining extreme rotation and tilting abilities, all in one swift whirling motion. The recessed Tweeter versions enable a maximum fuse of light and architecture. The spotlight heads are identical to the surface mounted installation and handling is simple and convenient. The double shell design prevents ceiling exposure, while the flexible inner shell tailors for any lighting need. Ultimate refinement is reached with the Oreo principle, a subtle aureole of light circling around the central led, for improved lighting aesthetics. The application of the Ex-centric Rotation System not only upgrades movement of the fixture, but more importantly also provides advanced lighting abilities. The rotation mechanism was designed so that the light beam is not cut off, resulting in maximum efficiency. The Tweeter On strikes a perfect balance between lighting quality and energy efficiency, adding value to the design statement of its environment. This striking yet elegant fitting suits every interior environment, pleasing the user with its supreme suppleness and intriguing appearance. Tweeter excels thanks to its ingenious design, refined to the last detail. Constant evolution in LED has allowed for Tweeter M to be designed: minimal in dimensions, but using the same ERS for utmost flexability. Finishing can be done in either full white or a remarkable Black-Chrome combination. Within the Tweeter family, also outdoor lighting solutions can be found in both wall and bollard application, ideal to combine functionality with a peculiar design. Tweeter brochure
