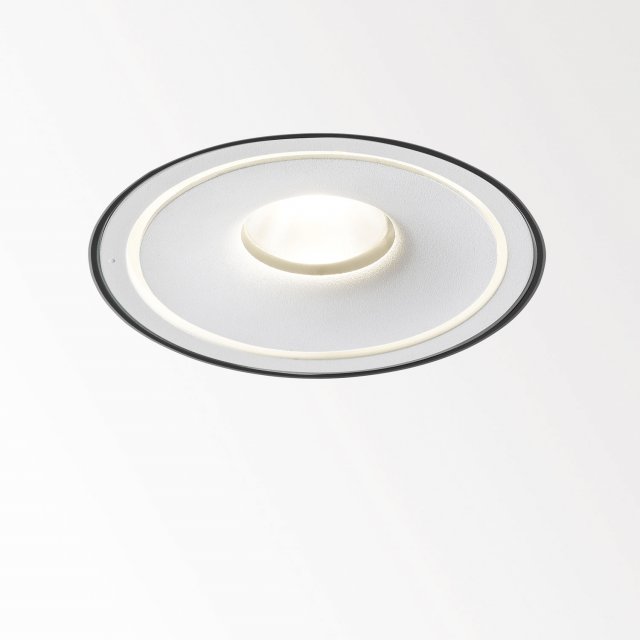

TWEETER TRIMLESS 93050 B-W
Black-White - 206 21 811 933 B-W
CRI
Beam angle
CCT
General
| Location | Indoor |
| CCT | 3000K |
| Fixation | Ceiling |
| Installation | Recessed |
| Cutout shape | round |
| Cutout size (mm) | Ø KIT |
| Min. recessed depth (mm) | 100 |
| IP | IP23/20 |
| Weight (kg) | 0.5 |
| Adjustability | 0° to 45° swiveling, 355° rotatable |
| Information | REFLECTOR WFL-50°
EXCL.LED POWER SUPPLY 350-500mA-DC |
Electrical
| Class | III |
| Dimming type | depending on power supply |
| Energy class | E |
| Certificates | CB, ENEC |
Lightsource
| Light source | LED |
| LED information | LED array 7,1-10,4W / CRI>90 (R9: 52) / 3000K / 812-1128lm |
| TM-30 Values | rf: 90 / Rg: 99 |
| SDCM | SDCM2 |
| Riskgroup | RG1 |
| LM80 | L90B10 > 50000 |
| LED technics (light source) | 1128lm // 10,4W // 109lm/W |
| LED technics (luminaire) | 953lm // 12W // 80lm/W |
Additional
| Requirements | MOUNTING KIT TWEETER TRIMLESS
LED POWER SUPPLY 350 / 500mA-DC DIM |
| Accessories | TWEETER CLIP + ACCESSORIES |
Technical data was measured in optimum conditions.
Downloads
Following downloads are available:
Ceiling compatibility
Please find an overview of the suitable ceiling types for this specific product.
Ceiling Type
Mounting kit
-
-
-
-
-
-
-
Finish your specifications
Use the information listed below to complete your product
