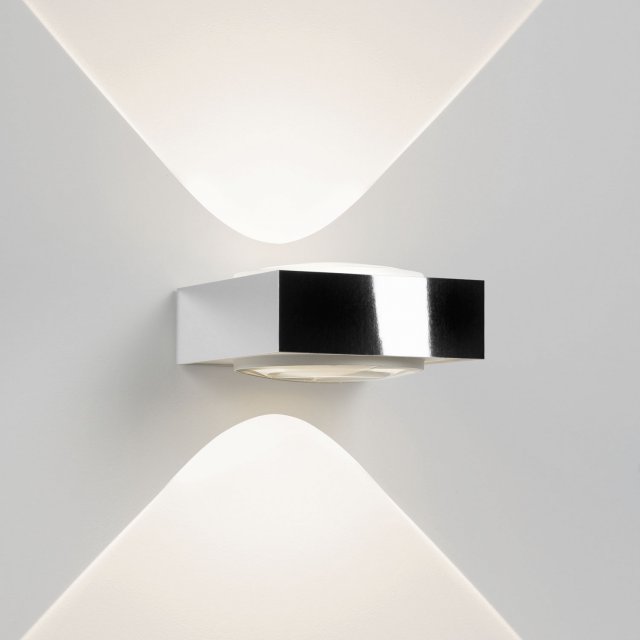

VISION LED WW
Available colors
-
WHITE
278 25 22 W -
WHITE-CHROMED
278 25 22 W-C
Characteristics
| Location | INTERIOR |
|---|---|
| Fixation | Wall Surface mounted |
| Recessed depth | n.a. |
| Thickness of mounting surface | n.a. |
| Information |
INCL.2 x LENS INCL.2 x LED 1,6W / CRI>80 / 3000K INCL.LED POWER SUPPLY 500mA-DC |
| CRI | CRI 80 |
| Colour temp | Warm White (+3000K) |
| LED Technics (light source) | 336 lm // 3 W // 117 lm/W |
| LED Technics (luminaire) | 235 lm // 4 W // 64 lm/W |
| Electrical | 100-240V / 50-60Hz |
| Class | Class I |
| Nett weight | 0.9 Kg |
| IP | IP20 |
| Minimum distance | n.a. |
| Remarks | n.a. |
Description icons:
-
The CE marking on many products shows that the products is compliant with the European regulations.
-
Explanation of the class symbol
-
Wall surface mounted
Finish your specification
Discover more about the VISION family
Since its launch Vision has already won multiple awards, thanks to its impressive and nicely delineated parabolic light pattern on the wall. This classic is available both for indoor and outdoor use. Vision thanks its powerful light effect to the combination of LED technology in combination with a lens, giving its unique design.
