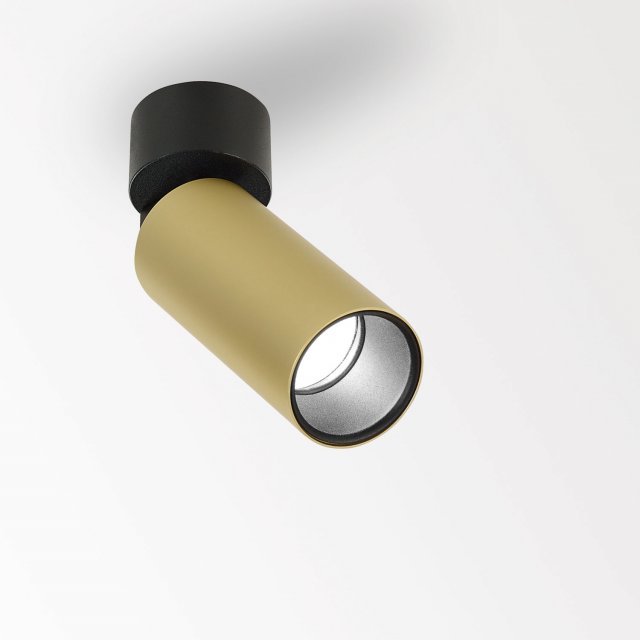

VIZIR ON 92708
Available colors
-
WHITE-WHITE
22532 9210 W-W -
GOLD COLORED-BLACK
22532 9210 GC-B -
BLACK BRONZE-BLACK
22532 9210 BBR-B
Characteristics
| Location | INTERIOR |
|---|---|
| Fixation | Ceiling Surface mounted |
| Recessed depth | n.a. |
| Thickness of mounting surface | n.a. |
| Information |
ADJUSTABLE 0-90°/355° 1 x LED 3,9-5,7W / CRI>90 / 2700K / 385-519lm LENS SP-8° EXCL.LED POWER SUPPLY 350-500mA-DC Other CRI or KELVIN on request |
| CRI | CRI 90 |
| Colour temp | Halogen White (+2700K) |
| LED Technics (light source) | 519 lm // 6 W // 98 lm/W |
| LED Technics (luminaire) | 397 lm // 7 W // 58 lm/W |
| Electrical | |
| Class | Class III |
| Nett weight | 0.3 Kg |
| IP | IP20 |
| Minimum distance | n.a. |
| Remarks | n.a. |
| Energy Class | F |
| Options |
COVERSET R 90-100 |
| Accessories |
VIZIR HONEYCOMB VIZIR SOFTENING LENS |
| Requirements |
VIZIR TUBE LED POWER SUPPLY 350 / 500mA-DC DIM |
Description icons:
-
The CE marking on many products shows that the products is compliant with the European regulations.
-
A Class III appliance is designed to be supplied from a separated/safety extra-low voltage (SELV) power source. The voltage from a SELV supply is low enough that under normal conditions a person can safely come into contact with it.
-
Ceiling surface mounted
Finish your specification
Options
204 00 100
COVERSET R 100
204 00 90
COVERSET R 90
Accessories
473 03 01
VIZIR HONEYCOMB
473 03 04
VIZIR SOFTENING LENS
Requirements
300 48 350 ED1
LED POWER CONVERTER 48V-DC to 350 mA-DC / 15W DIM1
300 48 350 ED5
LED POWER CONVERTER 48V-DC to 350 mA-DC / 15W DIM5
300 48 350 MDL
LED POWER CONVERTER 48V-DC to 350 mA-DC / 15W MDL
300 48 350 WDL
LED POWER CONVERTER 48V-DC to 350 mA-DC / 15W WDL
300 48 500 ED1
LED POWER CONVERTER 48V-DC to 500 mA-DC / 22W DIM1
300 48 500 ED5
LED POWER CONVERTER 48V-DC to 500 mA-DC / 22W DIM5
300 48 500 MDL
LED POWER CONVERTER 48V-DC to 500 mA-DC / 22W MDL
300 48 500 WDL
LED POWER CONVERTER 48V-DC to 500 mA-DC / 22W WDL
21012 0010
LED POWER SUPPLY MULTI POWER
21012 0021
LED POWER SUPPLY MULTI POWER DIM1
21012 0035
LED POWER SUPPLY MULTI POWER DIM5
21012 005W
LED POWER SUPPLY MULTI-POWER COMPACT WDL
300 90 68
LED POWER SUPPLY MULTI-POWER DIM5
300 90 61
LED POWER SUPPLY MULTI-POWER DIM6
300 90 124
LED POWER SUPPLY MULTI-POWER DIM7
300 90 64
LED POWER SUPPLY MULTI-POWER DIM7
300 90 63
LED POWER SUPPLY MULTI-POWER DIM9
300 90 135
LED POWER SUPPLY MULTI-POWER HV
300 90 69
LED POWER SUPPLY MULTI-POWER HV DIM9
300 90 125
LED POWER SUPPLY MULTI-POWER MINI DIM5
21012 004W
LED POWER SUPPLY MULTI-POWER WDL
473 01 00
VIZIR TUBE
Discover more about the VIZIR/HEDRA family
Vizir and Hedra, two new members of the Delta Light family, add refinement, finesse and color to the range. They are characterized by an atypical hinge, a design element that not only catches the eye, but also serves as storage for technical parts inside the luminaire. Next to black and white, the Vizir and Hedra are available in the new Gold Colored anodization and Black Bronze finishes, ether polished or in faceted texture. The faceted design of the Hedra captures and reflects the ambient light with an ever-changing look as result. It is also the typical design element of the Hedra family, a series of pendant, spotlight and wall mounted luminaires, available as full LED solution or for retrofit bulbs.
