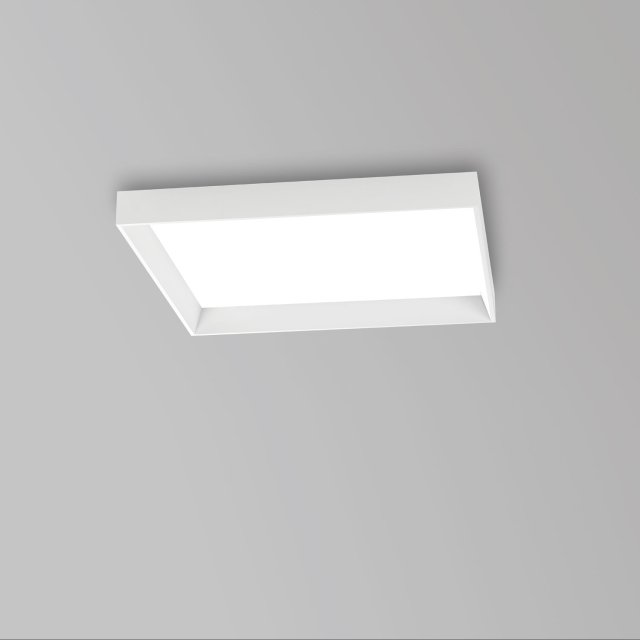

WINDOW 6060 830 W
White - 274 106 00 W
CRI
CCT
General
| Location | Indoor |
| CCT | 3000K |
| Fixation | Ceiling |
| Installation | Surface mounted, Suspended |
| IP | IP20 |
| Weight (kg) | 8 |
| Information | EXCL.LED POWER SUPPLY 830mA |
Electrical
| Class | III |
| Dimming type | non-dimmable |
| Energy class | F |
Lightsource
| Light source | LED |
| LED information | LED cluster 36W / CRI>80 / 3000K / 4150lm |
| LED technics (light source) | 4150lm // 36W // 115lm/W |
| LED technics (luminaire) | 2779lm // 41,4W // 67lm/W |
Additional
| Requirements | LED POWER SUPPLY SET 830mA-DC / 36W |
| Options | SUSPENSION SET 26 3m
SUSPENSION SET 26 DIM 3m
CABLE BASE R / S
COVERSET R 62-90-100 / S 62-80-90 |
Technical data was measured in optimum conditions.
Downloads
Following downloads are available:
Finish your specifications
Use the information listed below to complete your product
optional
Coversets
| Product name | CCT | CRI | Beam angle | ||
|---|---|---|---|---|---|
 | COVERSET R 100 B | - | - | - | Add to pinlist |
 | COVERSET R 100 W | - | - | - | Add to pinlist |
