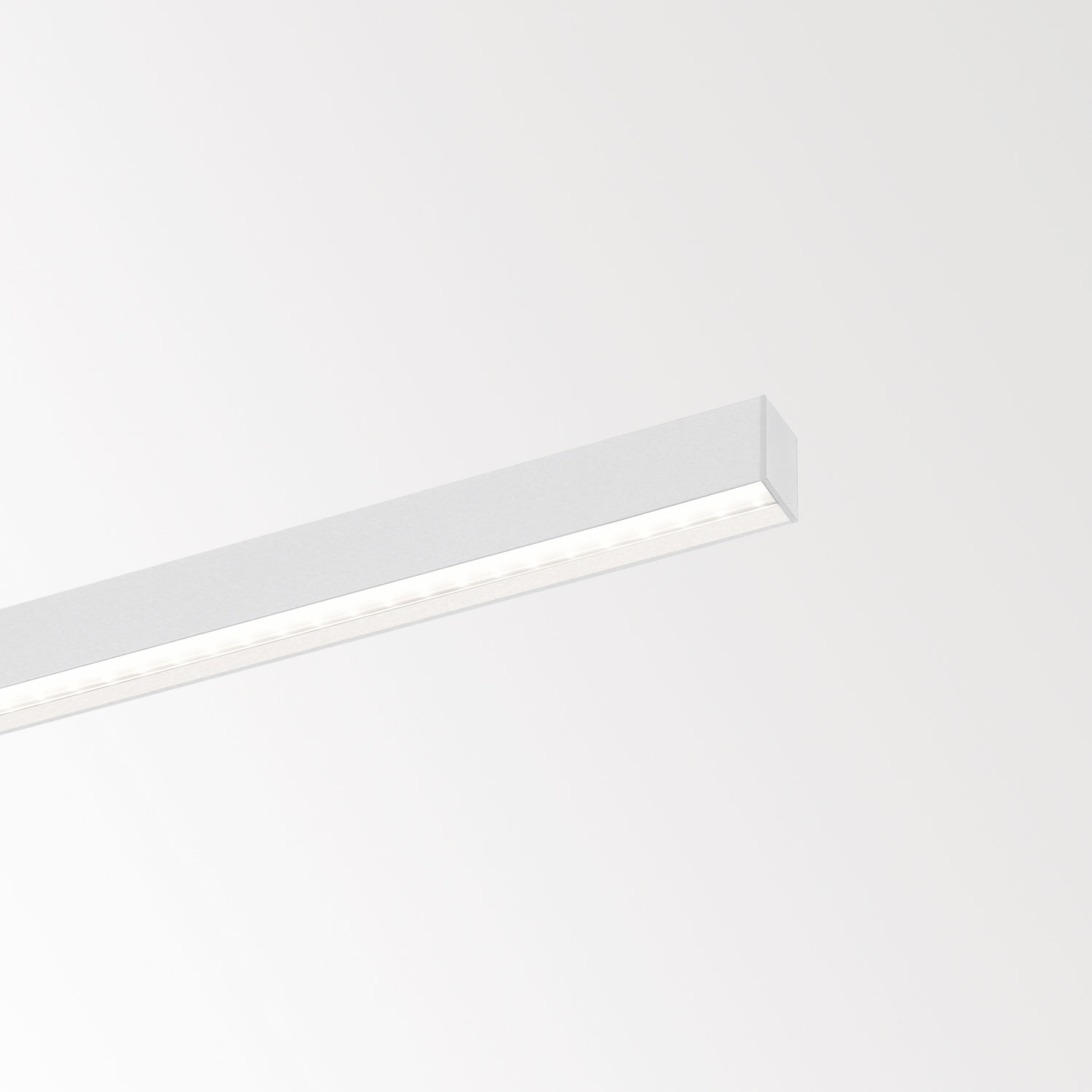

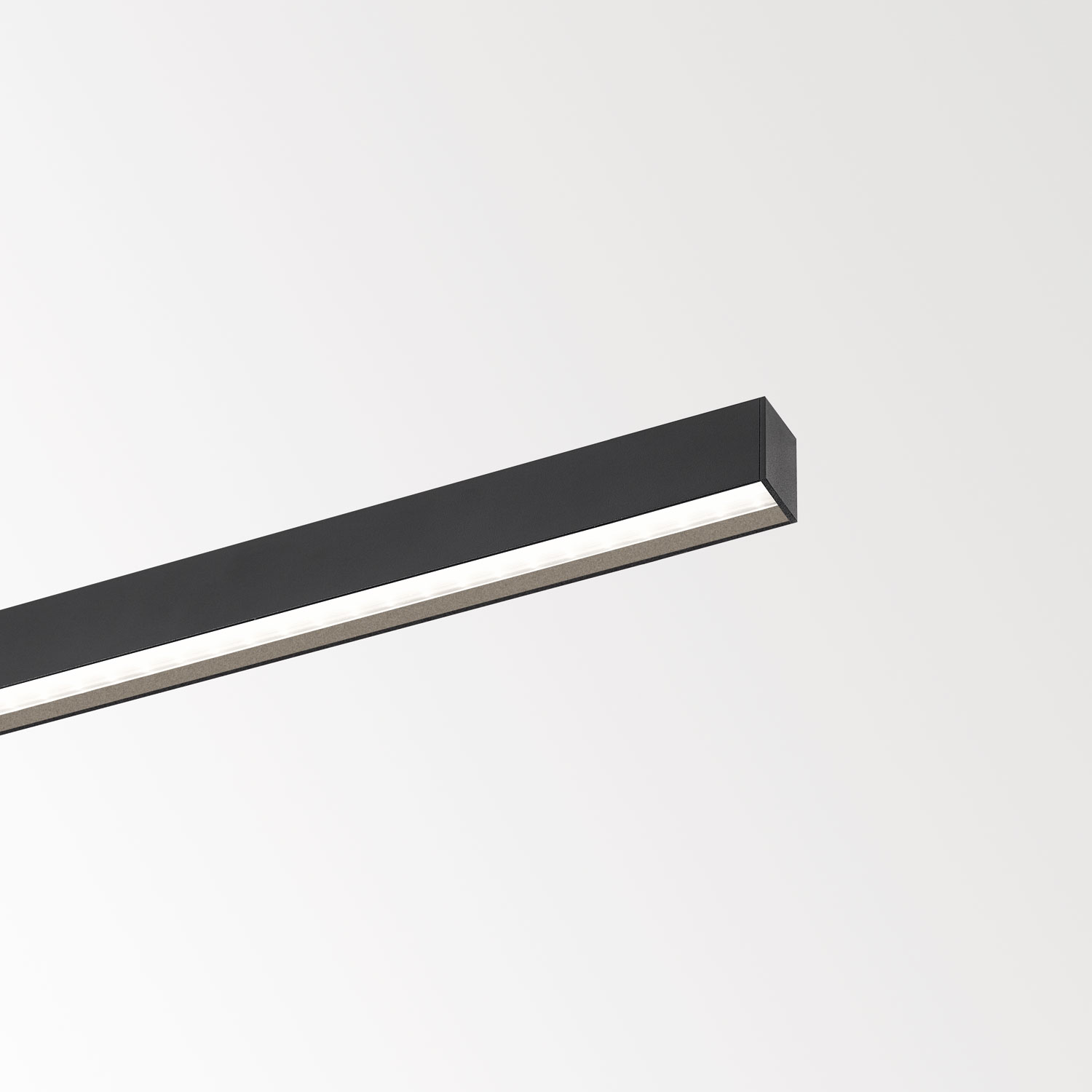

FEMTOLINE 35 WALL GRAZER profile
As an addition to the extensive range of Femtoline profiles, this wallgrazer introduces new ways of integrating linear solutions into architectural lighting. As a member of the Femtoline range it also uses LED flex inside its slender body, but its optical compartment generates new application possibilities, as it creates a grazing light along the surface, perfect to enhance textured walls or produce a dramatic lighting effect through its play of light and shadow. The in-house developed lens extrusion is designed to fulfill multiple functionalities to create the optimal grazing effect. First of all its specific shape generates a double light effect: in one direction it produces a small light beam to graze along the surface, even for higher walls, in the other direction the purpose is to widen the beam to obtain the same effect as wide as possible. Its second task is to do all of this without loosing sight of the visual perception. Thanks to a special treatment of the lens, the LED dots of the LEDflex are being transformed into a uniform line of light without any obtrusive effect to the eye.
Profile | ||||
---|---|---|---|---|
16427 0000 |
FTL35 WG - PROFILE | LDT/IES file | Installation manual | Specsheet |
End caps | ||||
16427 0310 | FTL35 WG - END CAP SET | |||
Corners | ||||
391 06 06 | FTL35 - CORNER 90° | |||
391 06 11 | FTL35 - FIXATION SET / CORNER 180° | |||
Fixation components | ||||
16427 1480 | FTL35 WG - TILT SET | |||
391 09 01 | FTL35 - CABLE SUSPENSION SINGLE 1,6m | Installation manual | ||
Current supply | ||||
391 97 51 | FTL35 - CURRENT SUPPLY 2 x 0,75 mm² 1,6m | Installation manual | ||
LED Power supply | ||||
300 24 060 | FTL - POWERBOX 24V-DC / 60W | Installation manual | ||
300 24 060 ED1 | FTL - POWERBOX 24V-DC / 60W DIM1 | Installation manual | ||
300 24 150 ED5 | FTL - POWERBOX 24V-DC / 150W DIM5 | Installation manual | ||
LED flex components | ||||
21031 0020 | LEDFLEX IN SOFT DIM 1830 | |||
21031 0030 | LEDFLEX IN 927 | |||
21031 0040 | LEDFLEX IN 930 | |||
21031 0060 | LEDFLEX IN 940 | |||
21031 0110 | LEDFLEX IN MP 927 | |||
21031 0120 | LEDFLEX IN MP 930 | |||
21031 0140 | LEDFLEX IN MP 940 | |||
21031 0190 | LEDFLEX IN FP 927 | |||
21031 0200 | LEDFLEX IN FP 930 | |||
21031 0220 | LEDFLEX IN FP 940 | |||
21031 0270 | LEDFLEX IN HP 927 | |||
21031 0280 | LEDFLEX IN HP 930 | |||
21031 0300 | LEDFLEX IN HP 940 | |||
21031 0390 | LEDFLEX IN TW 2765 | LDT/IES file | ||
21031 0400 | LEDFLEX IN RGB | LDT/IES file | ||
21031 0420 | LEDFLEX IN RGB/TW | LDT/IES file |
