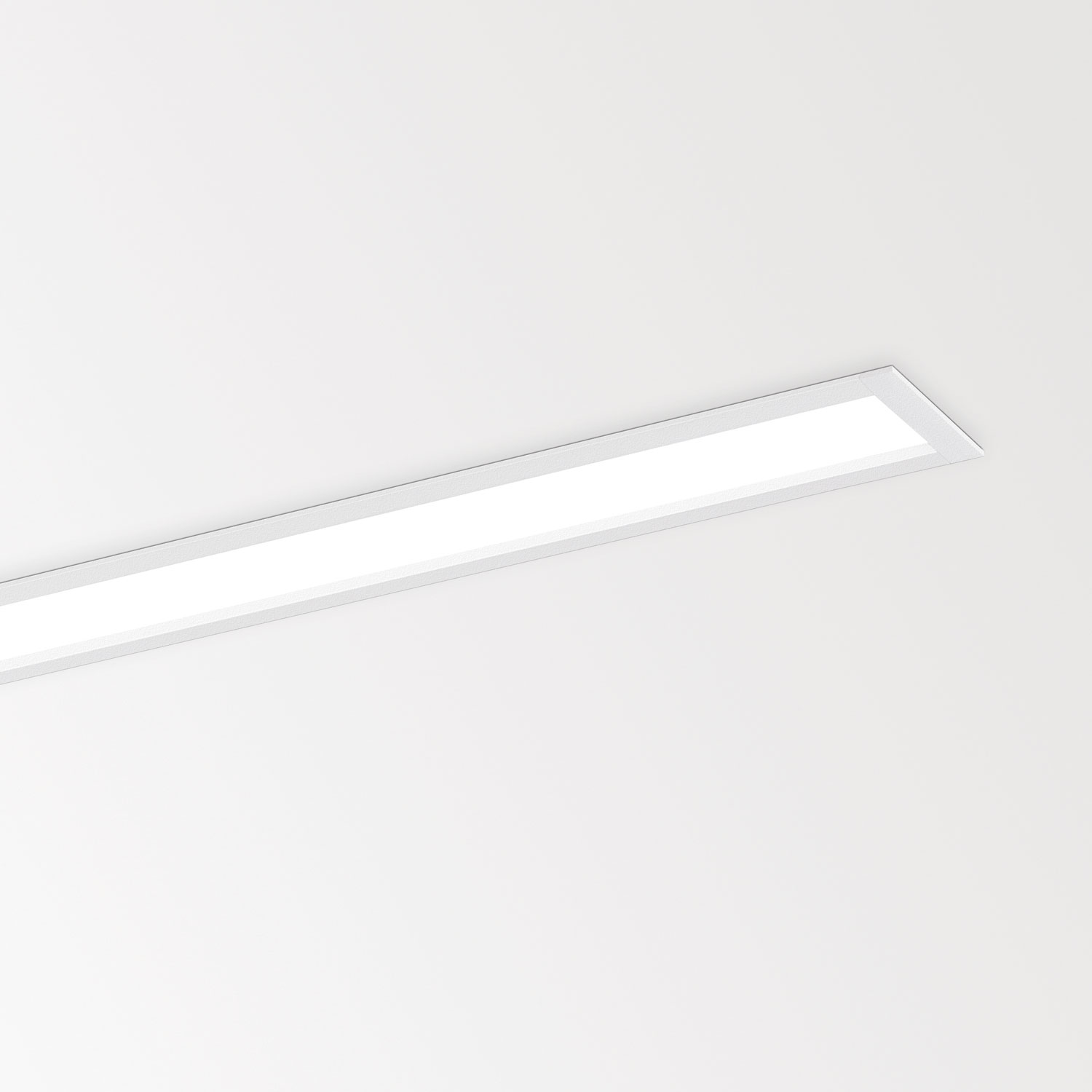

MICROLINE 60 profile
The new Microline 40/60 profile was created as a high efficiency replacement for the original 30/50 profile. The high-output led array is available with a dimmable power supply with 151lm/W and as a non-dimmable version delivering 167lm/W. In addition, the 40+ features a protruding polycarbonate for extra wide light output.
| Profile | ||||
|---|---|---|---|---|
|
399 03 00 |
MIC60 - PROFILE | Installation manual | Specsheet | |
| End caps | ||||
| 399 03 03 01 | MIC60 - END CAP | |||
| Corners | ||||
| 399 06 01 | MIC40/60 - CORNER 180° | |||
| 399 06 06 | MIC40/60 - CORNER 90° | |||
| Fixation components | ||||
| 399 03 14 01 | MIC60 - INSIDE CLIP | |||
| LED linear modules (down) | ||||
| 399 610 12 E | MIC40/60 - LED ARRAY 1 x 12W DOWN | LDT/IES file | ||
| 399 610 12 ED1 | MIC40/60 - LED ARRAY 1 x 12W DOWN DIM1 | LDT/IES file | ||
| 399 610 12 ED2 | MIC40/60 - LED ARRAY 1 x 12W DOWN DIM2 | LDT/IES file | ||
| 399 610 18 E | MIC40/60 - LED ARRAY 1 x 18W DOWN | LDT/IES file | ||
| 399 610 18 ED1 | MIC40/60 - LED ARRAY 1 x 18W DOWN DIM1 | LDT/IES file | ||
| 399 610 18 ED2 | MIC40/60 - LED ARRAY 1 x 18W DOWN DIM2 | LDT/IES file | ||
| 399 610 24 E | MIC40/60 - LED ARRAY 1 x 24W DOWN | LDT/IES file | ||
| 399 610 24 ED1 | MIC40/60 - LED ARRAY 1 x 24W DOWN DIM1 | LDT/IES file | ||
| 399 610 24 ED2 | MIC40/60 - LED ARRAY 1 x 24W DOWN DIM2 | LDT/IES file | ||
| 399 610 30 E | MIC40/60 - LED ARRAY 1 x 30W DOWN | LDT/IES file | ||
| 399 610 30 ED1 | MIC40/60 - LED ARRAY 1 x 30W DOWN DIM1 | LDT/IES file | ||
| 399 610 30 ED2 | MIC40/60 - LED ARRAY 1 x 30W DOWN DIM2 | LDT/IES file | ||
| 399 610 36 E | MIC40/60 - LED ARRAY 1 x 36W DOWN | LDT/IES file | ||
| 399 610 36 ED2 | MIC40/60 - LED ARRAY 1 x 36W DOWN DIM2 | LDT/IES file | ||
| 399 610 48 E | MIC40/60 - LED ARRAY 1 x 48W DOWN | LDT/IES file | ||
| 399 610 48 ED2 | MIC40/60 - LED ARRAY 1 x 48W DOWN DIM2 | LDT/IES file | ||
| 399 613 06 E | MIC40/60 - LED ARRAY 1 x 06W DOWN HE | LDT/IES file | ||
| 399 613 09 E | MIC40/60 - LED ARRAY 1 x 09W DOWN HE | LDT/IES file | ||
| 399 613 12 E | MIC40/60 - LED ARRAY 1 x 12W DOWN HE | LDT/IES file | ||
| 399 613 15 E | MIC40/60 - LED ARRAY 1 x 15W DOWN HE | LDT/IES file | ||
| 399 613 18 E | MIC40/60 - LED ARRAY 1 x 18W DOWN HE | LDT/IES file | ||
| 399 613 24 E | MIC40/60 - LED ARRAY 1 x 24W DOWN HE | LDT/IES file | ||
| Optics | ||||
| 399 01 02 05 SBL HE | MIC40/60 - PC SBL PROFILE HE | |||
| 399 01 02 08 SBL | MIC40/60 - PC SBL PROFILE - ROLL 8M | |||
| 399 01 02 15 SBL | MIC40/60 - PC SBL PROFILE - ROLL 15M | |||
