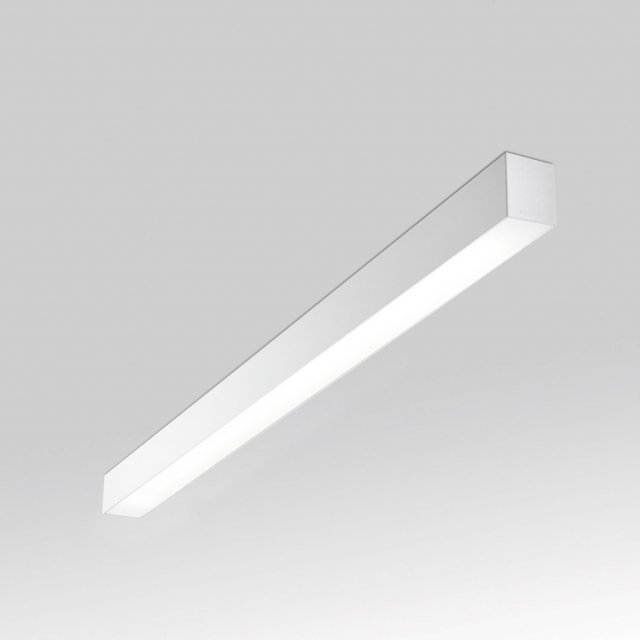

STREAMLINER 70S P4883 W
White - 389 011 483 E W
CRI
CCT
General
| Location | Indoor |
| CCT | 3000K |
| Fixation | Ceiling |
| Installation | Surface mounted, Suspended |
| IP | IP20 |
| Weight (kg) | 6.8 |
| Adjustability | non adjustable |
| Information | INCL.SRL PC SBL |
Electrical
| Voltage | 220-240V / 50-60Hz |
| Class | I |
| Dimming type | non-dimmable |
| Energy class | D |
| Certificates | CB, ENEC |
Lightsource
| Light source | LED |
| LED information | LED cluster 49W / CRI>90 (R9: 50) / 3000K / 7603lm |
| TM-30 Values | Rf: 92 / Rg: 100 |
| SDCM | SDCM3 |
| Riskgroup | RG1 |
| LM80 | L80 > 60000 |
| LED technics (light source) | 7603lm // 49W // 155lm/W |
| LED technics (luminaire) | 5913lm // 56,4W // 105lm/W |
Additional
| Options | SUSPENSION SET 22 1.6m
CABLE BASE R / S
COVERSET R 62-90-100 / S 62-80-90 |
Technical data was measured in optimum conditions.
Downloads
Following downloads are available:
Finish your specifications
Use the information listed below to complete your product
optional
Coversets
| Product name | CCT | CRI | Beam angle | ||
|---|---|---|---|---|---|
 | COVERSET R 100 B | - | - | - | Add to pinlist |
 | COVERSET R 100 W | - | - | - | Add to pinlist |
Current supply
Electric connection parts
| Product name | Class | ||
|---|---|---|---|
 | CONNECTION ST B | I | Add to pinlist |
 | CONNECTION ST W | I | Add to pinlist |
