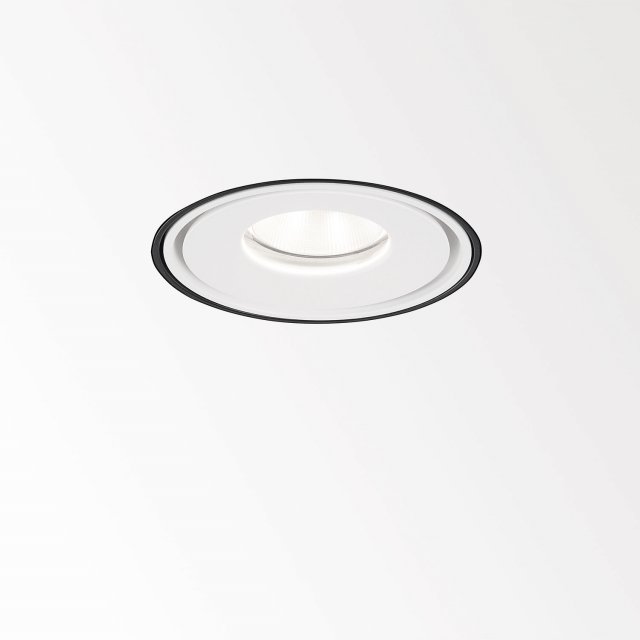

TWEETER M TRIMLESS 9-SOFT W-W
TWEETER MINI TRIMLESS
White-White - 418 13 1902 W-W
CRI
Beam angle
CCT

General
| Location | Indoor |
| CCT | 2700K-1800K |
| Fixation | Ceiling |
| Installation | Recessed |
| Cutout shape | round |
| Cutout size (mm) | Ø KIT |
| Min. recessed depth (mm) | 80 |
| IP | IP20 |
| Weight (kg) | 0.5 |
| Adjustability | 0° to 45° swiveling, 355° rotatable |
| Information | REFLECTOR FL-40°
EXCL.DIMMABLE LED POWER SUPPLY 650mA-DC |
Electrical
| Class | III |
| Dimming type | depending on power supply |
| Energy class | F |
| Certificates | CB, ENEC |
Lightsource
| Light source | LED |
| LED information | LED array 9,5W / CRI>90 / 2700K-1800K / 760lm |
| SDCM | SDCM3 |
| Riskgroup | RG0 |
| LED technics (light source) | 760lm // 9,5W // 82lm/W |
| LED technics (luminaire) | 538lm // 10,9W // 49lm/W |
Additional
| Requirements | MOUNTING KIT R102 TRIMLESS O.F.A.
DIMMABLE LED POWER SUPPLY 650mA-DC |
Technical data was measured in optimum conditions.
Downloads
Following downloads are available:
Ceiling compatibility
Please find an overview of the suitable ceiling types for this specific product.
Ceiling Type
Mounting kit
