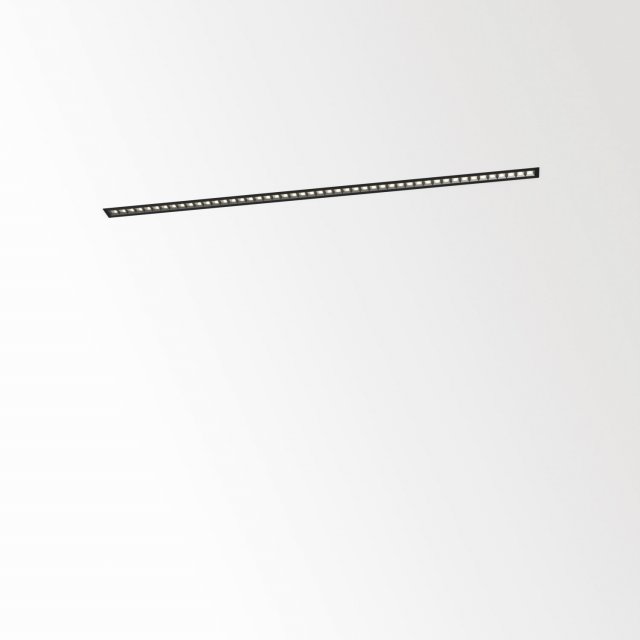

INFORM ST 1104 83067 B-B
INFORM 28 SMALL TRIM
Black-Black - 25502 8320 B-B
CRI
Beam angle
CCT
General
| Location | Indoor |
| CCT | 3000K |
| Fixation | Ceiling |
| Installation | Recessed |
| Cutout shape | rectangle |
| Cutout size (mm) | 38 x 1117 |
| Min. recessed depth (mm) | 40 |
| Thickness of mounting surface (mm) | max.12,5 |
| IP | IP20 |
| Weight (kg) | 1 |
| Adjustability | non adjustable |
| Information | 48 x REFLECTOR FL-67°
EXCL.LED POWER SUPPLY 400/600mA-DC
MELANOPIC LIGHT TECHNOLOGY |
Electrical
| Class | III |
| Dimming type | depending on power supply |
| Energy class | D |
| Certificates | CB, ENEC |
Lightsource
| Light source | LED |
| LED information | LED cluster 13,1-20,3W / CRI>80 (R9: 50) / 3000K / 2251-3302lm |
| TM-30 Values | Rf: 85 / Rg: 94 |
| SDCM | SDCM3 |
| Riskgroup | RG1 |
| LM80 | L90 > 60000 |
| LED technics (light source) | 3302lm // 20,3W // 163lm/W |
| LED technics (luminaire) | 2883lm // 23,3W // 123lm/W |
Additional
| Requirements | INFORM POWER SUPPLY 25W |
Technical data was measured in optimum conditions.
Downloads
Following downloads are available:
Ceiling compatibility
Please find an overview of the suitable ceiling types for this specific product.
Ceiling Type
Mounting kit
-
-
-
Finish your specifications
Use the information listed below to complete your product
requirement
LED power supplies
| Product name | Voltage | Class | Dimming type | IP | Cutout shape | Cutout size | max. devices / supply | ||
|---|---|---|---|---|---|---|---|---|---|
 | INFORM POWER SUPPLY 25W DIM5 | 220-240V | I | DALI | IP20 | - | - | 1 | Add to pinlist |
 | INFORM POWER SUPPLY 25W | 220-240V | I | non-dimmable | IP20 | - | - | 1 | Add to pinlist |
