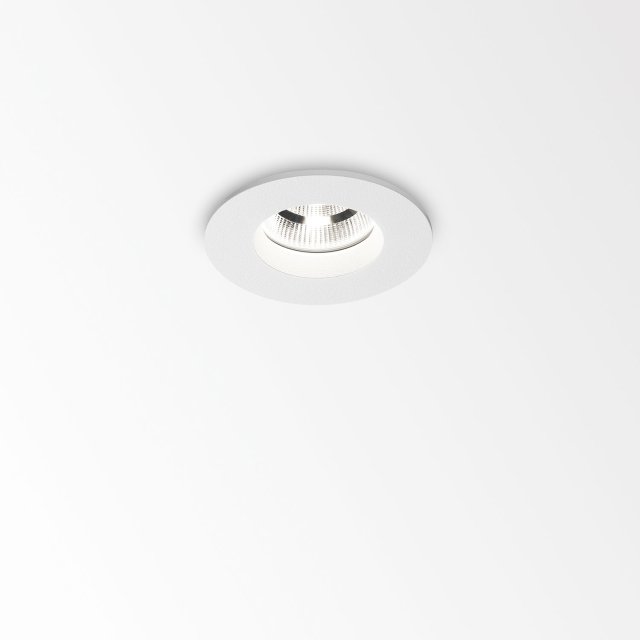

RINGO LED 93040 W
White - 415 223 933 W
CRI
Beam angle
CCT
General
| Location | Indoor |
| CCT | 3000K |
| Fixation | Ceiling |
| Installation | Recessed |
| Cutout shape | round |
| Cutout size (mm) | 67 |
| Min. recessed depth (mm) | 60 |
| Thickness of mounting surface (mm) | min.5 |
| IP | IP43 |
| Weight (kg) | 0.2 |
| Adjustability | non adjustable |
| Information | REFLECTOR WFL-40°
EXCL.LED POWER SUPPLY 350mA-DC |
Electrical
| Class | III |
| Dimming type | depending on power supply |
| Energy class | F |
| Certificates | CB, ENEC |
Lightsource
| Light source | LED |
| LED information | LED array 6,4W / CRI>90 / 3000K / 587lm |
| SDCM | SDCM2 |
| Riskgroup | RG1 |
| LED technics (light source) | 587lm // 6,4W // 92lm/W |
| LED technics (luminaire) | 491lm // 7,4W // 67lm/W |
Additional
| Requirements | LED POWER SUPPLY 350mA-DC DIM |
| Accessories | MINI REO HONEYCOMB
MINI REO SOFTENING LENS
MINI REO GLASS SBL |
Technical data was measured in optimum conditions.
Downloads
Following downloads are available:
Ceiling compatibility
Please find an overview of the suitable ceiling types for this specific product.
Ceiling Type
Mounting kit
-
-
-
-
-
-
-
-
-
-
Finish your specifications
Use the information listed below to complete your product
requirement
LED power supplies
| Product name | Voltage | Class | Dimming type | IP | Cutout shape | Cutout size | max. devices / supply | ||
|---|---|---|---|---|---|---|---|---|---|
 | LED POWER SUPPLY MULTI-POWER COMPACT WDL | 220-240V | II | WDL = wireless dimmable | IP20 | round | 54 | 2 | - | Add to pinlist |
 | LED POWER CONVERTER 48V-DC to 350 mA-DC / 15W DIM5 | - | III | DALI | IP20 | round | 30 | 2 | Add to pinlist |
 | LED POWER SUPPLY 350mA-DC / 10W DIM8 | 220-240V | II | mains (phase cut-off) | IP20 | round | 42 | 1 | Add to pinlist |
 | LED POWER SUPPLY 350mA-DC / 18W DIM8 | 220-240V | II | mains (phase cut-off) | IP20 | round | 55 | 2->2 | Add to pinlist |
 | LED POWER SUPPLY MULTI-POWER DIM7 | 110-240V | II | 1-10V or push button | IP20 | round | 55 | 2(2) | - | Add to pinlist |
 | LED POWER SUPPLY MULTI-POWER MINI DIM5 | 110-240V | II | DALI | IP20 | round | 55 | 2(2) | - | Add to pinlist |
 | LED POWER SUPPLY MULTI-POWER DIM9 | 110-240V | II | 1-10V or DALI or push button | IP20 | round | 82 | 3 | - | Add to pinlist |
 | LED POWER SUPPLY MULTI-POWER DIM5 | 110-240V | II | DALI | IP20 | round | 72 | 2(2) | - | Add to pinlist |
 | LED POWER SUPPLY MULTI-POWER HV DIM9 | 110-240V | II | 1-10V or DALI or push button | IP20 | round | 84 | 2->5(5) | - | Add to pinlist |
 | LED POWER SUPPLY 350mA-DC / 15W | 100-240V | II | non-dimmable | IP20 | round | 40 | 2(1) | Add to pinlist |
