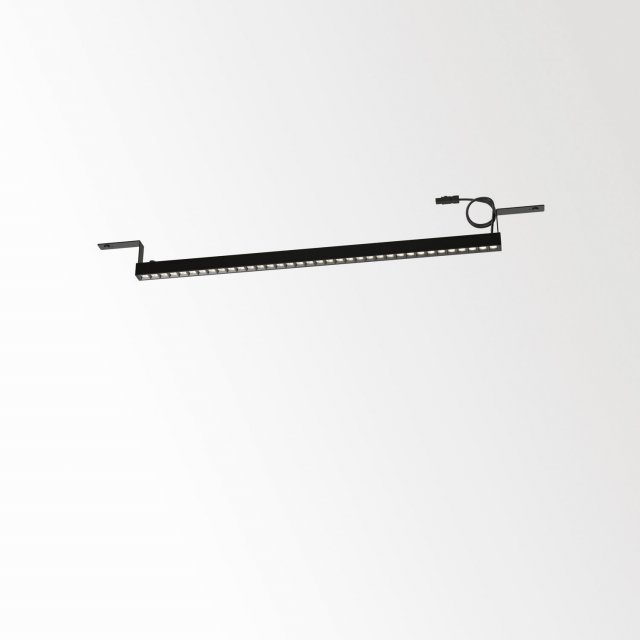

D-LINER 30 INF HF40 08 RD 84067 B-B
D-LINER 30 INFORM FOR HEARTFELT 40 ACOUSTIC CEILING
Black-Black - 29123 8420 B-B
CRI
Beam angle
CCT
General
| Location | Indoor |
| CCT | 4000K |
| Fixation | Ceiling |
| Installation | Recessed |
| IP | IP20 |
| Weight (kg) | 1 |
| Adjustability | non adjustable |
| Information | 36 x REFLECTOR FL-67°
EXCL.LED POWER SUPPLY 300/450mA-DC
INCL.1 x CABLE 2 x 0,75mm² - 1m + WIELAND PLUG 2 POLE
INCL.2 x SUSPENSION BRACKET HF40
MELANOPIC LIGHT TECHNOLOGY |
Electrical
| Class | III |
| Dimming type | depending on power supply |
| Energy class | D |
| Certificates | CB, ENEC |
Lightsource
| Light source | LED |
| LED information | LED cluster 9,8-15,2W / CRI>80 (R9: 50) / 4000K / 1768-2596lm |
| TM-30 Values | Rf: 85 / Rg: 94 |
| SDCM | SDCM3 |
| Riskgroup | RG1 |
| LM80 | L90 > 60000 |
| LED technics (light source) | 2596lm // 15,2W // 171lm/W |
| LED technics (luminaire) | 2266lm // 17,5W // 130lm/W |
Additional
| Requirements | INFORM POWER SUPPLY 17W |
Technical data was measured in optimum conditions.
Downloads
Following downloads are available:
Ceiling compatibility
Please find an overview of the suitable ceiling types for this specific product.
Ceiling Type
Mounting kit
-
Finish your specifications
Use the information listed below to complete your product
requirement
LED power supplies
| Product name | Voltage | Class | Dimming type | IP | Cutout shape | Cutout size | max. devices / supply | ||
|---|---|---|---|---|---|---|---|---|---|
 | INFORM POWER SUPPLY 17W DIM5 | 220-240V | I | DALI | IP20 | - | - | 1 | Add to pinlist |
