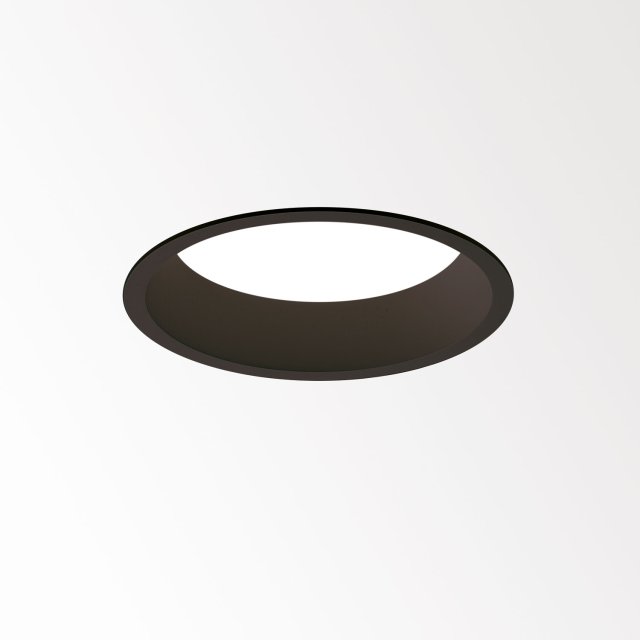

DIRO SBL M 82 B
DIRO WITH OPAL DIFFUSER - MEDIUM - RECESSED
Black - 202 296 82 B
CRI
CCT
General
| Location | Indoor |
| CCT | 2700K |
| Fixation | Ceiling |
| Installation | Recessed |
| Cutout shape | round |
| Cutout size (mm) | 156 |
| Min. recessed depth (mm) | 70 |
| Thickness of mounting surface (mm) | max.25 |
| IP | IP20 |
| Weight (kg) | 0.6 |
| Adjustability | non adjustable |
| Information | INCL.LED POWER SUPPLY 350mA-DC
INCL.PC SBL |
Electrical
| Voltage | 100-240V / 50-60Hz |
| Electrical | 100-240V / 50-60Hz
1 x LED |
| Class | II |
| Dimming type | non-dimmable |
| Energy class | D |
Lightsource
| Light source | LED |
| LED information | LED FLEX 9,8W / CRI>80 / 2700K / 1500lm |
| LED technics (light source) | 1500 lm // 9 W // 153 lm/W |
| LED technics (luminaire) | 761lm // 11,3W // 68lm/W |
Technical data was measured in optimum conditions.
Downloads
Following downloads are available:
Ceiling compatibility
Please find an overview of the suitable ceiling types for this specific product.
Ceiling Type
Mounting kit
-
-
-
-
-
