EN-SUITE R OK IP 82718 B

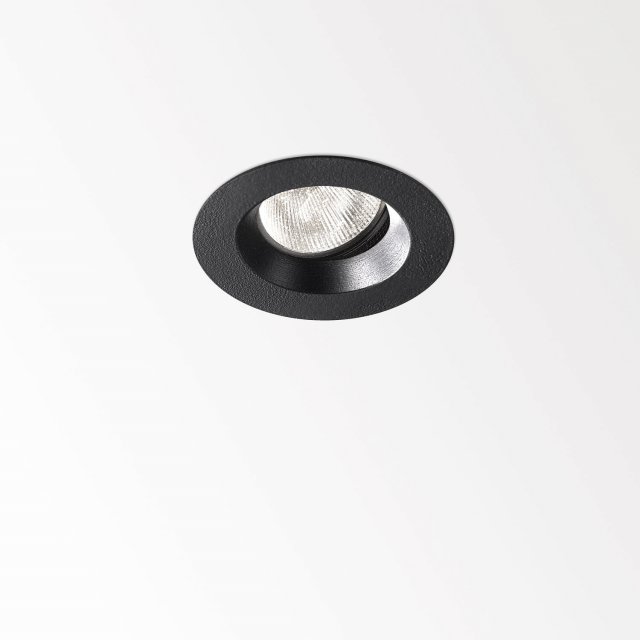

EN-SUITE ROUND ADJUSTABLE
Black - 26316 8210 B
CRI
Beam angle
CCT
General
| Location | Indoor |
| CCT | 2700K |
| Fixation | Ceiling |
| Installation | Recessed |
| Cutout shape | round |
| Cutout size (mm) | 48 |
| Min. recessed depth (mm) | 64 |
| Thickness of mounting surface (mm) | max.25 |
| IP | IP44/20 |
| Weight (kg) | 0.1 |
| Adjustability | 0° to 20° swiveling, 355° rotatable |
| Information | REFLECTOR SP-18°
EXCL.LED POWER SUPPLY 250mA-DC |
Electrical
| Class | III |
| Dimming type | depending on power supply |
| Energy class | C |
| Certificates | CB, ENEC |
Lightsource
| Light source | LED |
| LED information | LED array 3,9W / CRI>80 (R9: 9) / 2700K / 642lm |
| TM-30 Values | rf: 85 / Rg: 93 |
| SDCM | SDCM1 |
| Riskgroup | RG1 |
| LM80 | L90B10 > 50000 |
| LED technics (light source) | 642lm // 3,9W // 165lm/W |
| LED technics (luminaire) | 492lm // 4,5W // 110lm/W |
Additional
| Requirements | LED POWER SUPPLY 250mA-DC DIM (Remote) |
Technical data was measured in optimum conditions.
Downloads
Following downloads are available:
Ceiling compatibility
Please find an overview of the suitable ceiling types for this specific product.
Ceiling Type
Mounting kit
-
-
-
-
Finish your specifications
Use the information listed below to complete your product
requirement
LED power supplies
| Product name | Voltage | Class | Dimming type | IP | Cutout shape | Cutout size | max. devices / supply | ||
|---|---|---|---|---|---|---|---|---|---|
 | LED POWER SUPPLY MULTI POWER 60-360mA-DC | 110-240V | II | non-dimmable | IP20 | round | 40 | 2 | Add to pinlist |
 | LED POWER SUPPLY 250mA-DC / 10W DIM5 | 220-240V | II | DALI | IP20 | round | 40 | 2 | Add to pinlist |
 | LED POWER SUPPLY MULTI POWER 200-350 / 15W DIM8 | 220-240V | II | mains (phase cut-off) | IP20 | round | 50 | 2->2 | Add to pinlist |
 | LED POWER SUPPLY MULTI POWER 250-900 / 20W DIM8 | 220-240V | II | mains (phase cut-off) | IP20 | round | 48 | 2 | Add to pinlist |
 | LED POWER SUPPLY MULTI-POWER DIM7 | 110-240V | II | 1-10V or push button | IP20 | round | 55 | 2->3(2) | Add to pinlist |
 | LED POWER SUPPLY MULTI-POWER MINI DIM5 | 110-240V | II | DALI | IP20 | round | 55 | 2(2) | Add to pinlist |
 | LED POWER SUPPLY MULTI-POWER DIM5 | 110-240V | II | DALI | IP20 | round | 72 | 2(2) | Add to pinlist |
 | LED POWER SUPPLY MULTI-POWER HV DIM9 | 110-240V | II | 1-10V or DALI or push button | IP20 | round | 84 | 2->6(6) | Add to pinlist |
