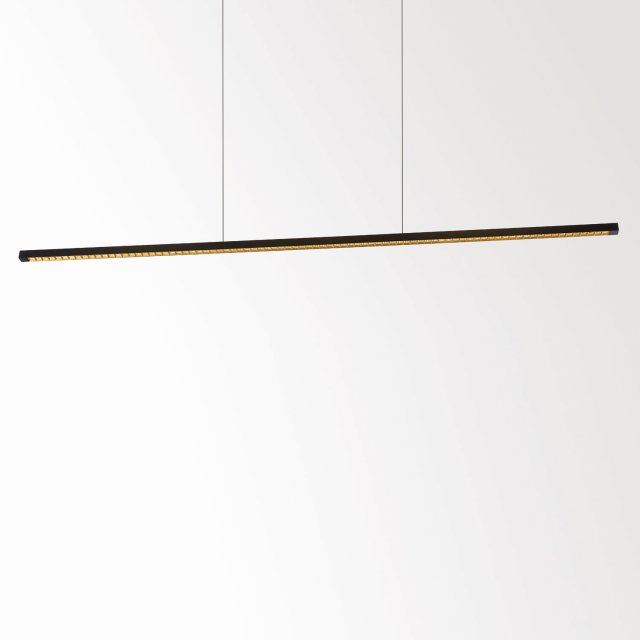

INFORM SQ P200-7 DOWN-UP 84067 B-MMAT
Black-Gold Matt - 25518 8420 B-MMAT
CRI
Beam angle
CCT
General
| Location | Indoor |
| CCT | 4000K |
| Fixation | Ceiling |
| Installation | Suspended |
| IP | IP20 |
| Weight (kg) | 1.5 |
| Adjustability | non adjustable |
| Information | 84 x REFLECTOR FL-67° (DOWN)
EXCL.LED POWER SUPPLY 1300mA-DC
INCL.2 x CABLE SUSPENSION SINGLE AUTO. 1,6m
POWER VIA CABLE SUSPENSION
MELANOPIC LIGHT TECHNOLOGY |
Electrical
| Class | III |
| Dimming type | depending on power supply |
| Energy class | B |
| Certificates | CB, ENEC, EPD |
Lightsource
| Light source | LED |
| LED information | DOWN: LED cluster 22,9W / CRI>80 (R9: 50) / 4000K / 4124lm
UP: LED cluster 19,7W / CRI>80 (R9: 50) / 4000K / 3535lm |
| TM-30 Values | Rf: 85 / Rg: 94 |
| SDCM | SDCM3 |
| Riskgroup | RG1 |
| LM80 | L90 > 60000 |
| LED technics (light source) | DOWN: 4124lm // 22,9W // 180lm/W
UP: 3535lm // 19,7W // 180lm/W |
| LED technics (luminaire) | DOWN: 3497lm // 26,3W // 133lm/W
UP: 2383lm // 22,7W // 105lm/W |
Additional
| Requirements | INFORM SQ POWERBOX 75W (DIM5)
INFORM POWER SUPPLY 60W + SUSPENSION+CONNECTION ST |
Technical data was measured in optimum conditions.
Downloads
Following downloads are available:
Finish your specifications
Use the information listed below to complete your product
requirement
Electric connection parts
| Product name | Class | ||
|---|---|---|---|
 | SUSPENSION + CONNECTION ST B | III | Add to pinlist |
 | SUSPENSION + CONNECTION ST W | III | Add to pinlist |
LED power supplies
| Product name | Voltage | Class | Dimming type | IP | Cutout shape | Cutout size | max. devices / supply | ||
|---|---|---|---|---|---|---|---|---|---|
 | INFORM POWER SUPPLY 60W DIM5 | 220-240V | I | DALI | IP20 | - | - | 1 | Add to pinlist |
 | INFORM POWER SUPPLY 60W | 220-240V | I | non-dimmable | IP20 | - | - | 1 | Add to pinlist |
