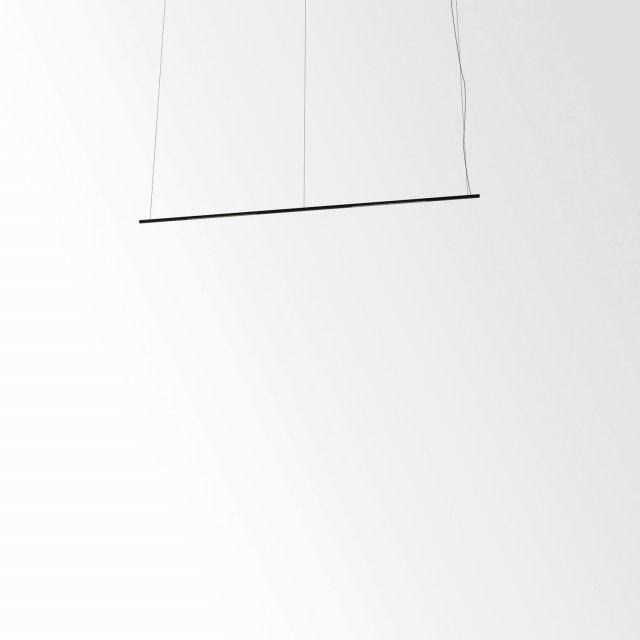

INFORM SQ P392-6 DOWN-UP 83067 B-B
Black-Black - 25571 8320 B-B
CRI
Beam angle
CCT
General
| Location | Indoor |
| CCT | 3000K |
| Fixation | Ceiling |
| Installation | Suspended |
| IP | IP20 |
| Weight (kg) | 2.7 |
| Adjustability | non adjustable |
| Information | 72 x REFLECTOR FL-67° (DOWN)
EXCL.LED POWER SUPPLY 600mA-DC (DOWN) - 1000mA (UP)
INCL.3 x CABLE SUSPENSION SINGLE AUTO. 1,6m
INCL.1 x CABLE 4 x 0.75mm²
MELANOPIC LIGHT TECHNOLOGY |
Electrical
| Class | III |
| Dimming type | depending on power supply |
| Energy class | D |
| Certificates | CB, ENEC, EPD |
Lightsource
| Light source | LED |
| LED information | DOWN: 2 x (LED cluster 9,8W / CRI>80 (R9: 50) / 3000K / 1688lm)
UP: 4 x (LED cluster 8,3W / CRI>80 (R9: 50) / 3000K / 1387lm) |
| TM-30 Values | Rf: 85 / Rg: 94 |
| SDCM | SDCM3 |
| Riskgroup | RG1 |
| LM80 | L90 > 60000 |
| LED technics (light source) | DOWN: 3376lm // 19,6W // 171lm/W
UP: 5548lm // 33,2W // 167lm/W |
| LED technics (luminaire) | DOWN: 2863lm // 22,5W // 127lm/W
UP: 3739lm // 38,2W // 98lm/W |
Additional
| Requirements | INFORM POWER SUPPLY 60W
INFORM SQ POWERBOX L 75W |
| Options | CABLE BASE R / S
COVERSET R 62-90-100 / S 62-80-90
CONNECTION ST / CONNECTION TRIMLESS
SUSPENSION ST / SUSPENSION TRIMLESS |
Technical data was measured in optimum conditions.
Downloads
Following downloads are available:
Finish your specifications
Use the information listed below to complete your product
requirement
LED power supplies
| Product name | Voltage | Class | Dimming type | IP | Cutout shape | Cutout size | max. devices / supply | ||
|---|---|---|---|---|---|---|---|---|---|
 | INFORM POWER SUPPLY 45W DIM5 | 220-240V | I | DALI | IP20 | - | - | only UP or only DOWN | Add to pinlist |
 | INFORM POWER SUPPLY 60W DIM5 | 220-240V | I | DALI | IP20 | - | - | 1 | Add to pinlist |
 | INFORM POWER SUPPLY 45W | 220-240V | I | non-dimmable | IP20 | - | - | only UP or only DOWN | Add to pinlist |
 | INFORM POWER SUPPLY 60W | 220-240V | I | non-dimmable | IP20 | - | - | 1 | Add to pinlist |
