SPLIT-IT PRO profile
| Product name | Reference number |
|---|---|
| SPT PRO - PROFILE | 372 01 00 |

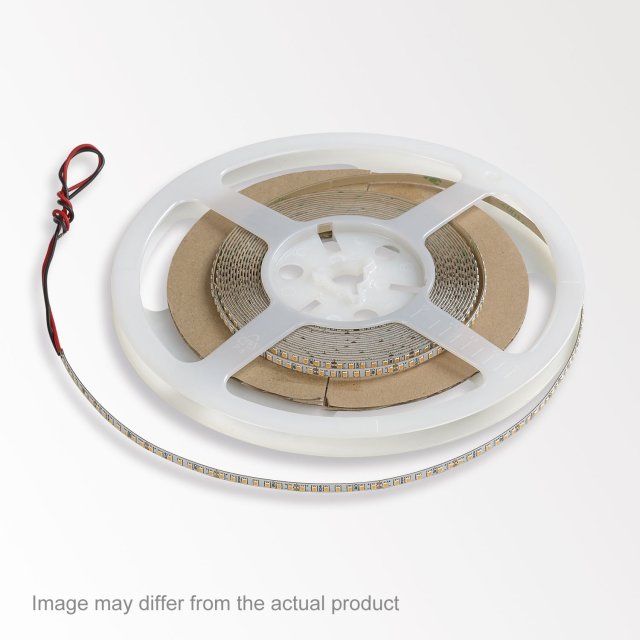

LEDFLEX IN SOFT DIM 1830 5m
21030 0020
CRI
CCT
General
| CCT | 3000K-1800K |
| IP | IP20 |
| Weight (kg) | 0.2 |
| Information | MAX.L / FLEX : 5m
224 x SMD LED/m
DIVIDABLE PER 62,5mm
24V-DC
INCL.10 MOUNTING BRACKETS |
Electrical
| Voltage | 24V-DC |
| Class | III |
| Energy class | G |
Lightsource
| LED information | 18W/m / CRI>90 / 3000K-1800K / 1460lm/m |
| LED technics (light source) | 1460lm/m // 18W/m // 81lm/W |
Additional
| Requirements | LED POWER SUPPLY 24V-DC
24V-DC DIM UNIT |
Technical data was measured in optimum conditions.
Downloads
Following downloads are available:
Finish your specifications
Use the information listed below to complete your product
requirement
LED power supplies
| Product name | Voltage | Class | Dimming type | IP | Cutout shape | Cutout size | max. devices / supply | ||
|---|---|---|---|---|---|---|---|---|---|
 | LED POWER SUPPLY 24V-DC / 24W | 220-240V | II | non-dimmable | IP20 | round | 55 | max. 1,31m | Add to pinlist |
 | LED POWER SUPPLY 24V-DC / 150W | 100-240V | I | non-dimmable | IP67 | round | 75 | max. 8,31m | Add to pinlist |
