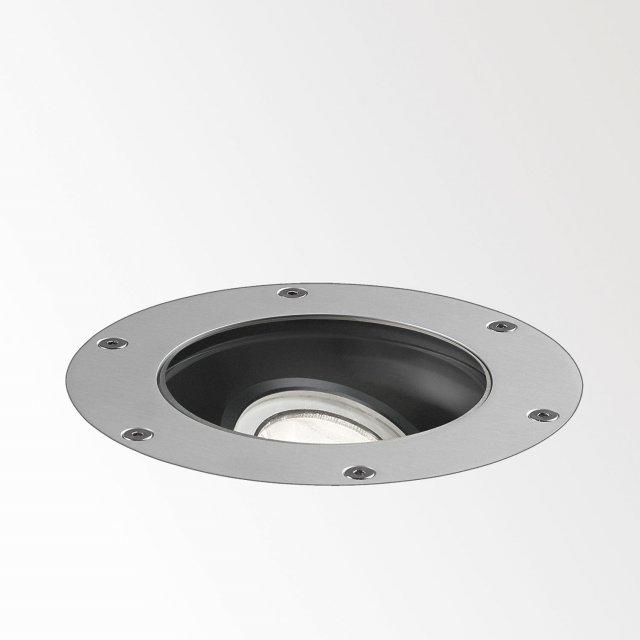

LOGIC R OK 93006 ANO
LOGIC 90 ROUND TRIMLESS
Alu Anodized - 213 502 931 ANO
CRI
Beam angle
CCT
General
| Location | Outdoor |
| CCT | 3000K |
| Fixation | Floor |
| Installation | Recessed |
| Cutout shape | round |
| Cutout size (mm) | KIT |
| Min. recessed depth (mm) | 195 |
| IP | IP67 |
| IK | IK08 |
| Weight (kg) | 1.1 |
| Adjustability | 0° to 30° swiveling, 355° rotatable |
| Information | LENS SP-6°
EXCL.LED POWER SUPPLY 700-1050mA-DC
INCL.1 x CABLE H05 RN-F 2 x 1mm² 0,5m
INCL.IP68 CONNECTOR 3P
ESG 10mm max.500kg |
Electrical
| Class | III |
| Dimming type | depending on power supply |
| Energy class | F |
| Certificates | CB, EAC, ENEC |
Lightsource
| Light source | LED |
| LED information | LED array 2-3,2W / CRI>90 / 3000K / 229-319lm |
| SDCM | SDCM3 |
| Riskgroup | RG2 (threshold 0,6m) |
| LED technics (light source) | 319lm // 3,2W // 100lm/W |
| LED technics (luminaire) | 206lm // 3,7W // 56lm/W |
Additional
| Requirements | LED POWER SUPPLY 700 / 1050mA-DC DIM |
| Options | LOGIC R OK BOX
CBOX
IP68 CONNECTION KIT |
Technical data was measured in optimum conditions.
Downloads
Following downloads are available:
Finish your specifications
Use the information listed below to complete your product
requirement
LED power supplies
| Product name | Voltage | Class | Dimming type | IP | Cutout shape | Cutout size | max. devices / supply | ||
|---|---|---|---|---|---|---|---|---|---|
 | LED POWER SUPPLY MULTI-POWER COMPACT WDL | 220-240V | II | WDL = wireless dimmable | IP20 | round | 54 | 2->16 | 2->11 | - | Add to pinlist |
 | LED POWER CONVERTER 48V-DC to 700 mA-DC / 25W DIM5 | - | III | DALI | IP20 | round | 30 | 2->13 | Add to pinlist |
| | LED POWER CONVERTER 48V-DC to 700 mA-DC / 25W PRO DIM5 | - | III | DALI | IP20 | round | 30 | 2->13 | Add to pinlist |
 | LED POWER SUPPLY MULTI-POWER DIM7 | 110-240V | II | 1-10V or push button | IP20 | round | 55 | 2->9(6) | - | - | Add to pinlist |
 | LED POWER SUPPLY MULTI-POWER MINI DIM5 | 110-240V | II | DALI | IP20 | round | 55 | 2->9(6) | - | - | Add to pinlist |
 | LED POWER SUPPLY MULTI-POWER HC DIM9 | 110-240V | II | 1-10V or DALI or push button | IP20 | round | 90 | - | 13(11) | - | Add to pinlist |
 | LED POWER SUPPLY 1050mA-DC / 22W | 110-240V | II | non-dimmable | IP20 | round | 48 | 6(3) | Add to pinlist |
 | LED POWER SUPPLY MULTI-POWER DIM5 | 110-240V | II | DALI | IP20 | round | 72 | 2->15(6) | - | - | Add to pinlist |
 | LED POWER SUPPLY MULTI-POWER HV DIM9 | 110-240V | II | 1-10V or DALI or push button | IP20 | round | 84 | 28(18) | - | - | Add to pinlist |
