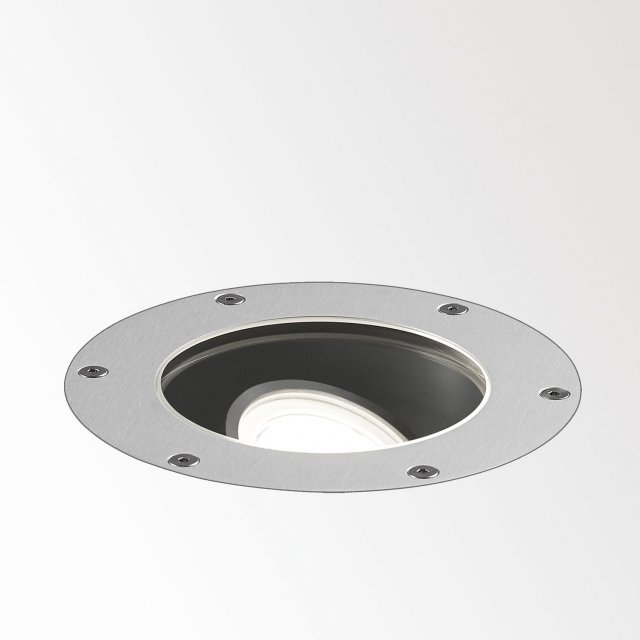

LOGIC R OK 93030 ANO
LOGIC 90 ROUND TRIMLESS
Alu Anodized - 213 501 811 932 ANO
CRI
Beam angle
CCT
General
| Location | Outdoor |
| CCT | 3000K |
| Fixation | Floor |
| Installation | Recessed |
| Cutout shape | round |
| Cutout size (mm) | KIT |
| Min. recessed depth (mm) | 195 |
| IP | IP67 |
| IK | IK08 |
| Weight (kg) | 1.1 |
| Adjustability | 0° to 30° swiveling, 355° rotatable |
| Information | REFLECTOR FL-30°
EXCL.LED POWER SUPPLY 350-500mA-DC
INCL.1 x CABLE H05 RN-F 2 x 1mm² 0,5m
INCL.IP68 CONNECTOR 3P
ESG 10mm max.500kg |
Electrical
| Class | III |
| Dimming type | depending on power supply |
| Energy class | E |
| Certificates | CB, EAC, ENEC |
Lightsource
| Light source | LED |
| LED information | LED array 7,1-10,4W / CRI>90 (R9: 52) / 3000K / 812-1128lm |
| TM-30 Values | rf: 90 / Rg: 99 |
| SDCM | SDCM2 |
| Riskgroup | RG1 |
| LM80 | L90B10 > 50000 |
| LED technics (light source) | 1128lm // 10,4W // 109lm/W |
| LED technics (luminaire) | 683lm // 12W // 57lm/W |
Additional
| Requirements | LED POWER SUPPLY 350 / 500mA-DC DIM |
| Options | LOGIC R OK BOX
CBOX
IP68 CONNECTION KIT |
Technical data was measured in optimum conditions.
