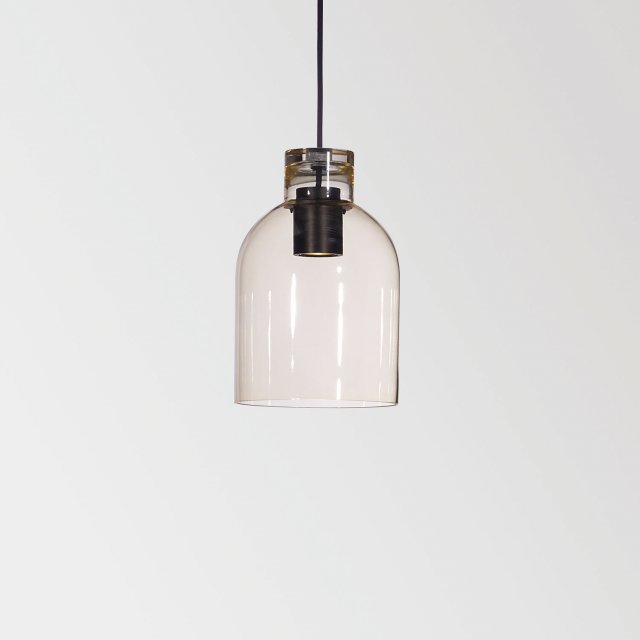

MANTELLO GLASS L1523 LED AMBER 92750
25819 9230
CRI
Beam angle
CCT
General
| Location | Indoor |
| CCT | 2700K |
| Fixation | Ceiling |
| Installation | Suspended |
| IP | IP20 |
| Weight (kg) | 0.8 |
| Adjustability | non adjustable |
| Information | INCL.1 x CABLE 2 x 0.75mm² 1,6m
INCL.1 x CABLE CLAMP BLACK
EXCL.LED POWER SUPPLY 350mA-DC |
Electrical
| Class | III |
| Dimming type | depending on power supply |
| Energy class | E |
Lightsource
| Light source | LED |
| LED information | LED array 7,1W / CRI>90 (R9: 60) / 2700K / 779lm |
| TM-30 Values | rf: 89 / Rg: 100 |
| SDCM | SDCM2 |
| Riskgroup | RG1 |
| LM80 | L90B10 > 50000 |
| LED technics (light source) | 779lm // 7,1W // 110lm/W |
| LED technics (luminaire) | 590lm // 8,2W // 72lm/W |
Additional
| Requirements | LED POWER SUPPLY 350mA-DC DIM
MILES POWERBOX 350mA DIM8 |
| Options | CONNECTION TRIMLESS
CEILING BASE R |
| Accessories | MILES TUBE |
Technical data was measured in optimum conditions.
Downloads
Following downloads are available:
Finish your specifications
Use the information listed below to complete your product
requirement
LED power supplies
Power box
| Product name | ||
|---|---|---|
 | MILES POWERBOX 350 mA DIM8 B | Add to pinlist |
